UHR133B Hubbell Electronic Components
Part#:UHR133B
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

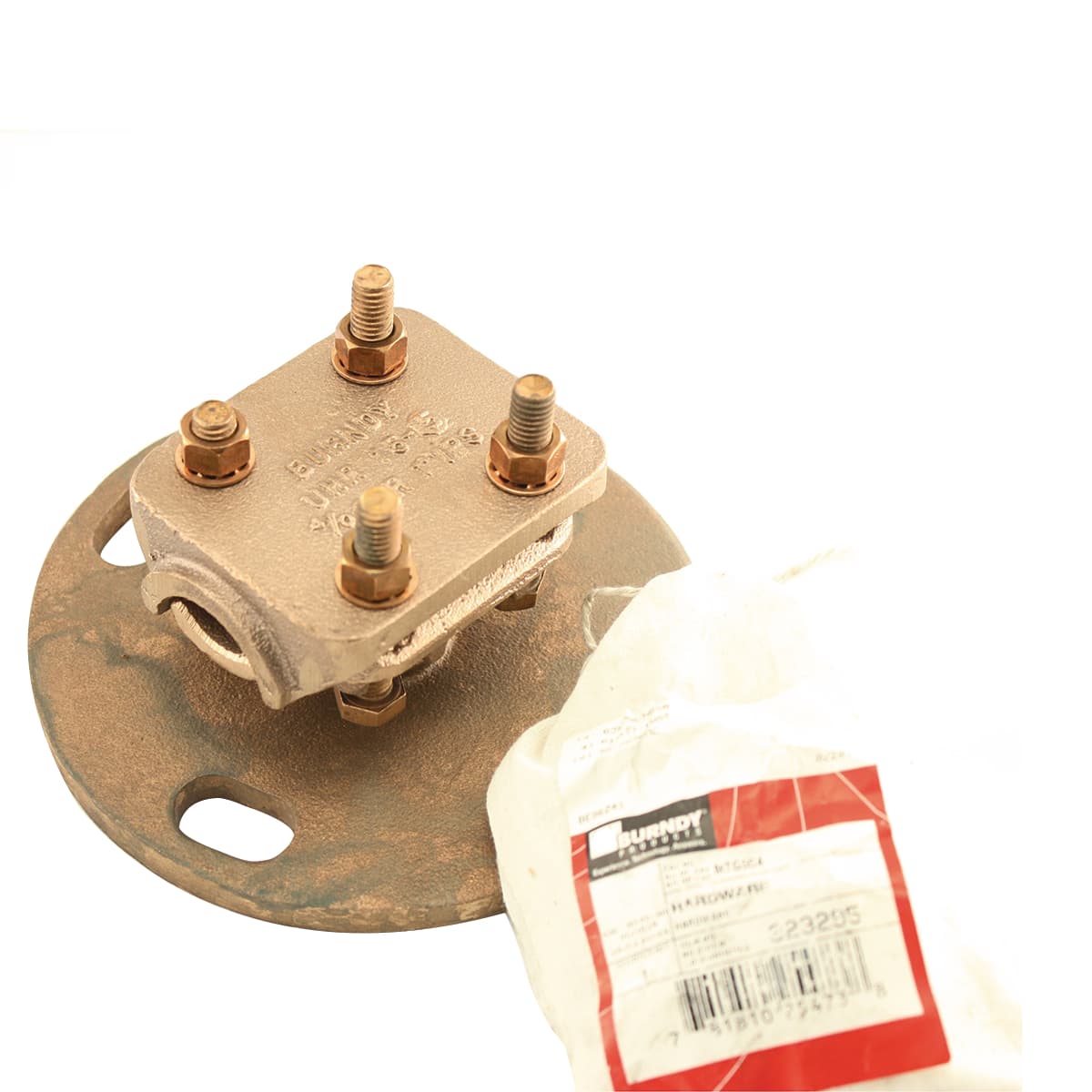

Cast Cu Alloy Bus Support with Base Mounting Hardware, CU Str. Size: 6 AWG - 500 Kcmil, CU Pipe Size: 1/8"-1/2" IPS, 3 IN Bolt Circle Dia.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the UHR133B Hubbell price in the box on the right side or send a quick quote.
Product Details
- UPC 781810126592
- Dimension - Hole Size inch 0.56 in
- Certification - CSA Approved No
- UPC 12 Digit 7818101265922
- Connector Type Bus Support
- Mounting Hardware 1/2 X 1 1/2" Hot Dipped Steel Hex. Head Bolts
- Dimension - Width mm 57 mm
- Dimension - G inch 1.75 in
- Conductor - Copper Str Size Range 6 AWG-500 kcmil
- Plated N
- Dimension - Width inch 2.25 in
- Material - Hardware DURIUM™ Silicon Bronze
- Dimension - B Length inch 3.56 in
- Conductor - Copper Str Size 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Certification - ETL No
- Standards - RoHS Compliance Status EX
- Installation Torque Recommended in-lb 240 in-lb
- Plating Type Unplated
- Dimension - Hole Size fraction 9/16
- Certification - cULus No
- Number Of Conductors 1
- Conductor - Connection Combination Base to Tube or Cable
- Hardware Type Base mounting kit (w nuts)
- Dimension - Height inch 3.00 in
- Rating - KVA 230 kV
- Conductor - Copper Tube Std Size 1/8 IPS IPS;1/4 IPS IPS;3/8 IPS IPS;1/2 IPS IPS
- Conductor - Copper Tube Std Size Range 1/8 IPS IPS-1/2 IPS IPS
- Minimum Pack Quantity 8
- One Wrench Installation Y
- Bolt Circle Diameter 3.00 in
- UL Listed No
- Certification - UL Recognized No
