UHR173W Hubbell Electronic Components
Part#:UHR173W
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

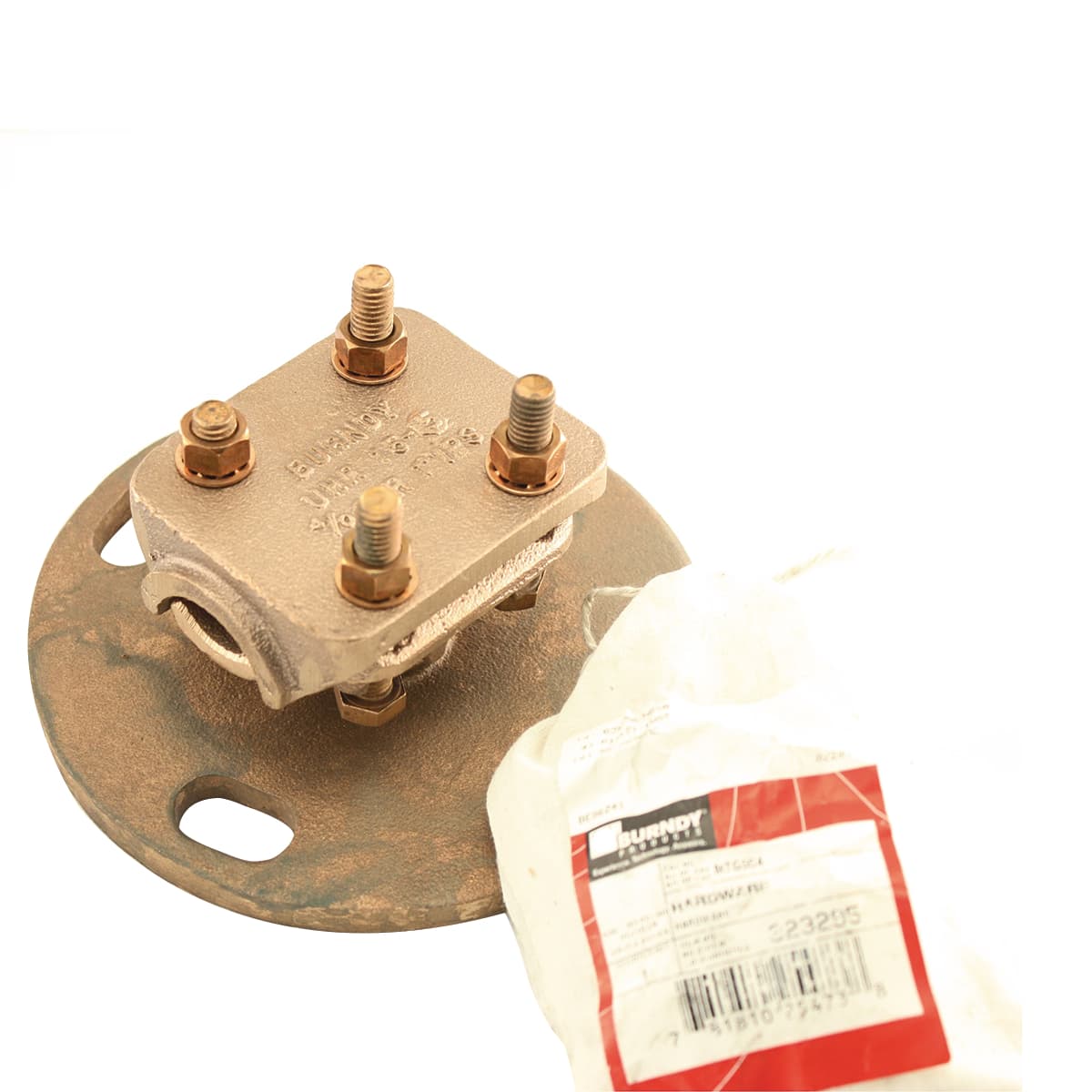

Cast Cu Alloy Bus Support with Tin Plated Assembly and Tin Plated Hardware, CU Str. Size: 750 Kcmil - 1250 Kcmil, CU Pipe Size: 3/4"-1-1/2" IPS, 3 IN Bolt Circle Dia.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the UHR173W Hubbell price in the box on the right side or send a quick quote.
Product Details
- One Wrench Installation Y
- Material - Hardware DURIUM™ Silicon Bronze
- Connector Type Bus Support
- Installation Torque Recommended in-lb 480 in-lb
- UPC 781810119808
- Dimension - Hole Size inch 0.56 in
- Conductor - Copper Tube Std Size 3/4 IPS IPS;1 IPS IPS;1 1/4 IPS IPS;1 1/2 IPS IPS
- Standards - RoHS Compliance Status EX
- Plating Type Tin - Hot Dipped
- Mounting Hardware 1/2 X 1" Hot Dipped Galv. Steel Hex. Head Bolts
- Dimension - Width mm 100 mm
- Dimension - B Length inch 2.81 in
- Certification - CSA Approved No
- UL Listed No
- Plated Y
- Dimension - G inch 2.50 in
- Dimension - Hole Size fraction 9/16
- Conductor - Copper Str Size Range 750 kcmil-2500 kcmil
- Hardware Type Cap mounting kit (w/o nuts)
- UPC 12 Digit 7818101198088
- Bolt Circle Diameter 3.00 in
- Rating - KVA 230 kV
- Certification - UL Recognized No
- Number Of Conductors 1
- Conductor - Connection Combination Base to Tube or Cable
- Conductor - Copper Tube Std Size Range 3/4 IPS IPS-1 1/2 IPS IPS
- Certification - cULus No
- Dimension - Height inch 4.25 in
- Dimension - Width inch 3.94 in
- Conductor - Copper Str Size 750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil;1250 kcmil;1300 kcmil;1500 kcmil;1600 kcmil;1750 kcmil;2000 kcmil;2500 kcmil
- Minimum Pack Quantity 1
- Certification - ETL No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents UHR173W Specs
