UHR155B Hubbell Electronic Components
Part#:UHR155B
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

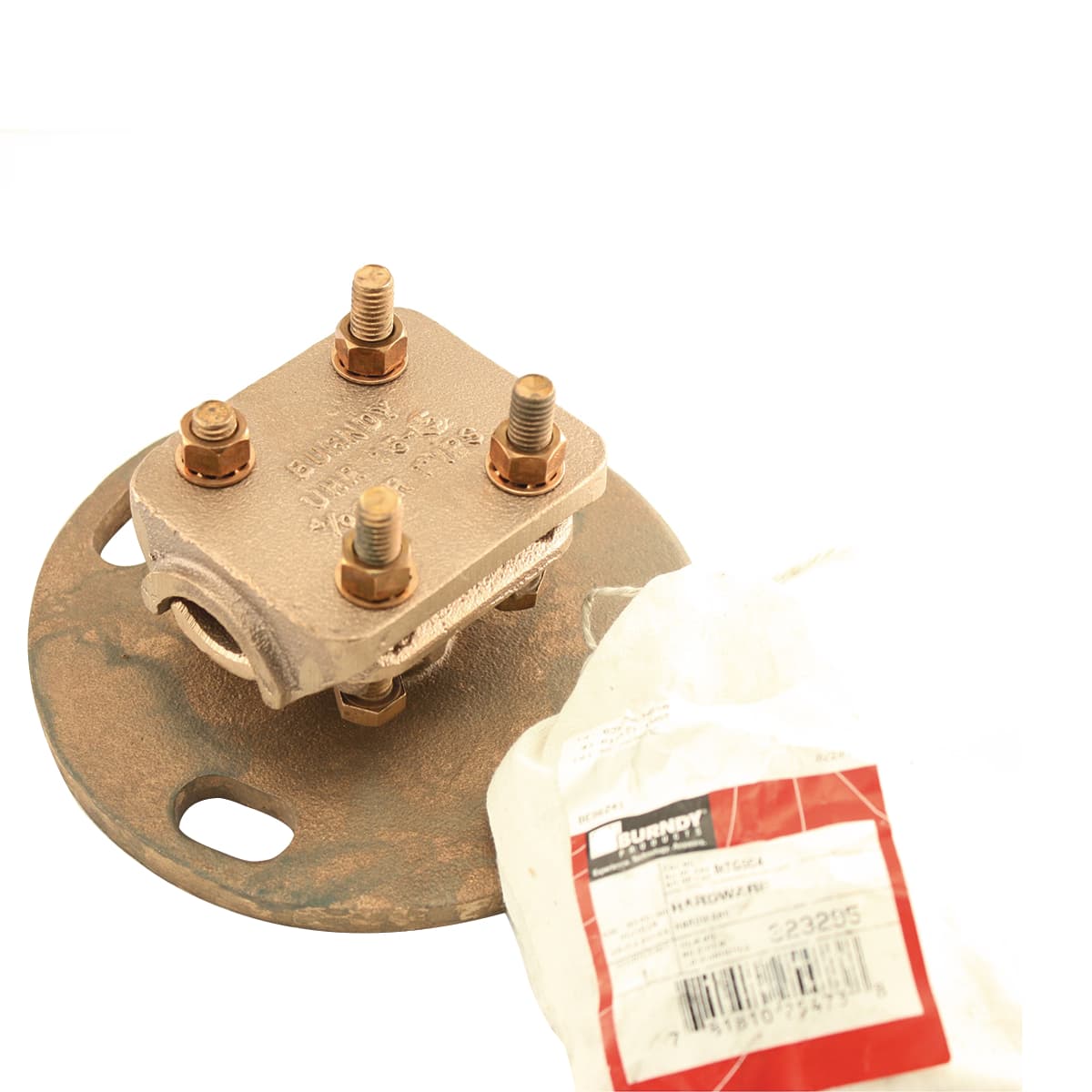

Cast Cu Alloy Bus Support with Base Mounting Hardware, CU Str. Size: 4/0 AWG - 1250 Kcmil, CU Pipe Size: 1/4"-1" IPS, 5 IN Bolt Circle Dia.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the UHR155B Hubbell price in the box on the right side or send a quick quote.
Product Details
- Plated N
- Hardware Type Base mounting kit (w nuts)
- UPC 781810119686
- Material - Hardware DURIUM™ Silicon Bronze
- Dimension - Hole Size fraction 11/16
- Conductor - Copper Tube Std Size Range 1/4 IPS IPS-1 IPS IPS
- Minimum Pack Quantity 1
- UPC 12 Digit 7818101196866
- Dimension - B Length inch 3.69 in
- Dimension - Width inch 2.75 in
- Certification - ETL No
- Conductor - Copper Tube Std Size 1/4 IPS IPS;3/8 IPS IPS;1/2 IPS IPS;3/4 IPS IPS;1 IPS IPS
- UL Listed No
- Plating Type Unplated
- Bolt Circle Diameter 5.00 in
- Installation Torque Recommended in-lb 240 in-lb
- Dimension - Height inch 3.75 in
- Rating - KVA 230 kV
- Certification - CSA Approved No
- Conductor - Copper Str Size Range 4/0 AWG-1250 kcmil
- Mounting Hardware 5/8 X 1 3/4" Hot Dipped Steel Hex. Head Bolts
- One Wrench Installation Y
- Connector Type Bus Support
- Dimension - Width mm 70 mm
- Number Of Conductors 1
- Dimension - G inch 2.25 in
- Conductor - Copper Str Size 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil;1250 kcmil
- Dimension - Hole Size inch 0.69 in
- Conductor - Connection Combination Base to Tube or Cable
- Certification - cULus No
- Standards - RoHS Compliance Status EX
- Certification - UL Recognized No
