UHR173 Hubbell Electronic Components
Part#:UHR173
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

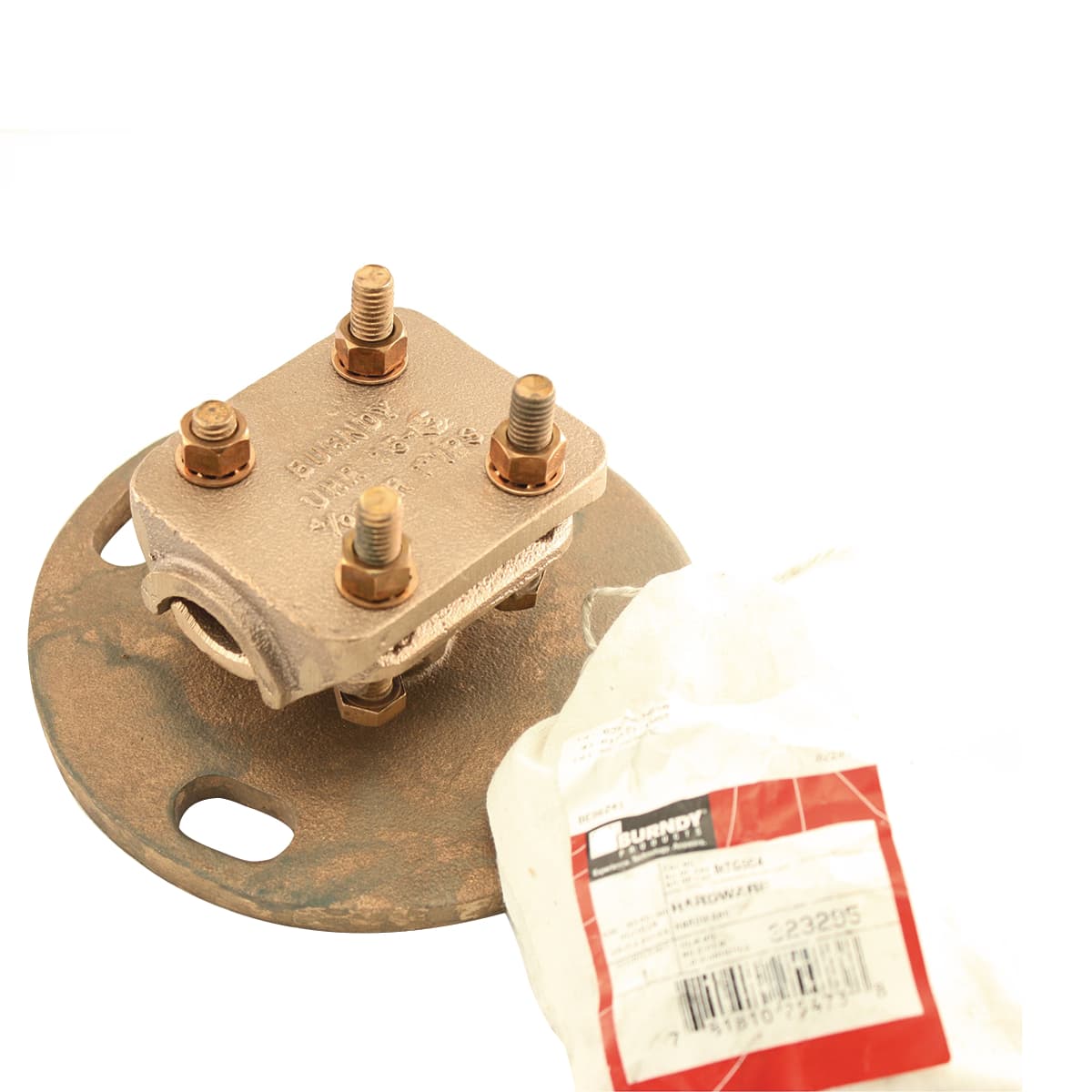

Cast Cu Alloy Bus Support, CU Str. Size: 750 Kcmil - 1250 Kcmil, CU Pipe Size: 3/4"-1-1/2" IPS, 3 IN Bolt Circle Dia.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the UHR173 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Dimension - B Length fraction 2-7/8 in
- Mounting Hardware 1/2 X 1" Hot Dipped Galv. Steel Hex. Head Bolts
- Connector Type Bus Support
- Dimension - G inch 2.50 in
- Bolt Circle Diameter 3.00 in
- Conductor - Connection Combination Base to Tube or Cable
- Certification - CSA Approved No
- UPC 12 Digit 7818100046099
- Material - Hardware DURIUM™ Silicon Bronze
- Dimension - B Length inch 2.81 in
- Dimension - Hole Size inch 0.56 in
- Rating - KVA 230 kV
- Conductor - Copper Tube Std Size Range 3/4 IPS-1 1/2 IPS
- Standards - RoHS Compliance Status EX
- Certification - cULus No
- Installation Torque Recommended in-lb 480 in-lb
- Plated N
- UPC 781810004609
- Dimension - Hole Size fraction 9/16
- Dimension - Width mm 100 mm
- Conductor - Copper Tube Std Size 3/4 IPS;1 IPS;1 1/4 IPS;1 1/2 IPS
- Certification - UL Recognized No
- One Wrench Installation Y
- Hardware Type Cap mounting kit (w/o nuts)
- Dimension - Width inch 3.94 in
- Dimension - Height inch 4.25 in
- Conductor - Copper Str Size Range 750 kcmil-2500 kcmil
- Certification - ETL No
- Minimum Pack Quantity 4
- Dimension - Width fraction 4 in
- Number Of Conductors 1
- UL Listed No
- Plating Type Unplated
- Dimension - Height fraction 4-1/4 in
- Conductor - Copper Str Size 750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil;1250 kcmil;1300 kcmil;1500 kcmil;1600 kcmil;1750 kcmil;2000 kcmil;2500 kcmil
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents UHR173 Specs
