YA282N45 Hubbell Electronic Components
Part#:YA282N45
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

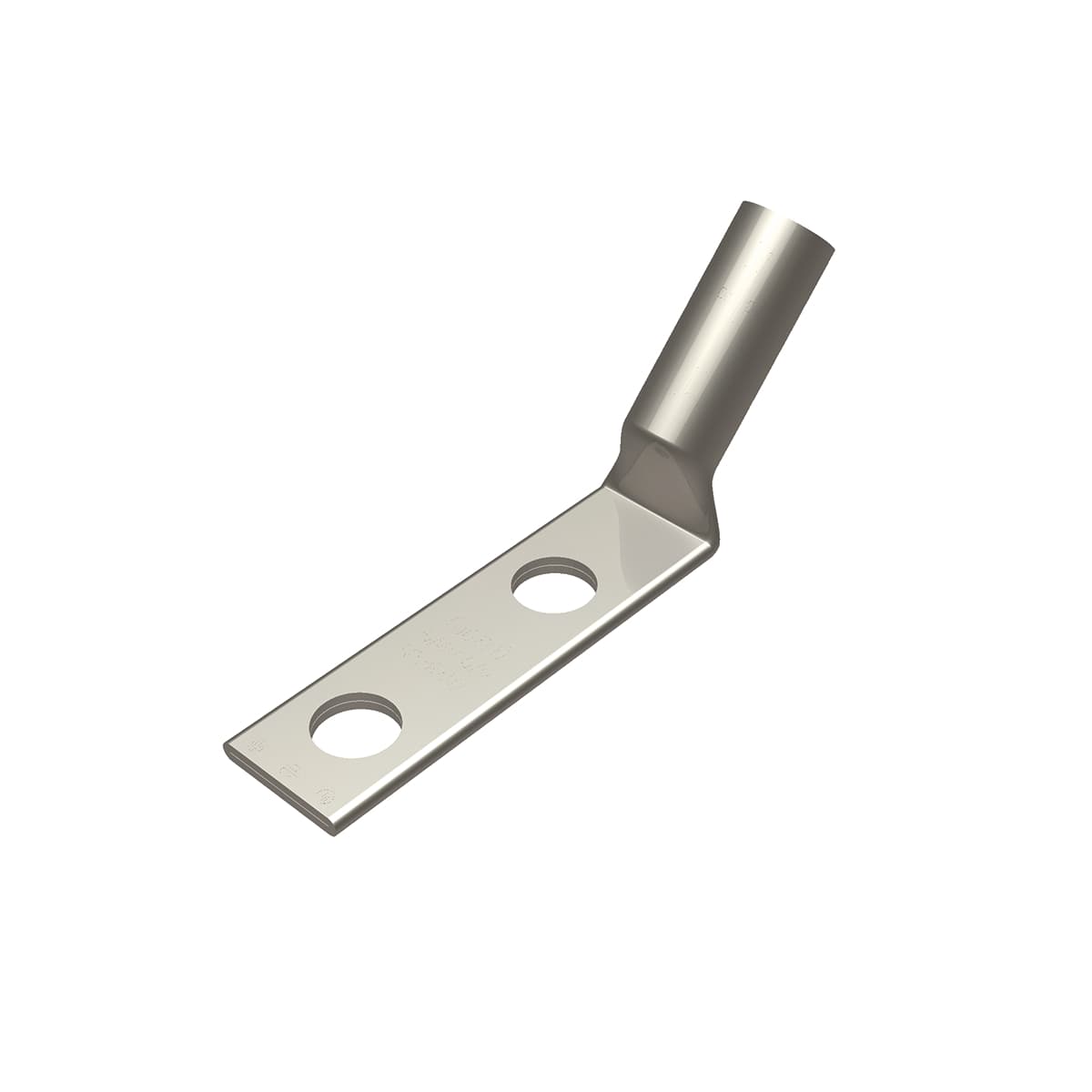

Copper Compression Lug, 2 Hole w/o Inspection Window, 4/0 AWG, 1/2" Stud, Long Barrel, Tin Plated.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA282N45 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Rating - KVA 35 kV
- Dimension - L Length Overall mm 124 mm
- Dimension - Strip Length inch 1-11/16
- Type Long Barrel, Tin Plated
- Dimension - Bolt Hole Size inch 0.52 in
- Plating Type Tin plated
- UPC 12 Digit 7818100530899
- Dimension - Hole Size inch 0.56 in
- Dimension - Outside Diameter inch 0.69 in
- Certification - CSA Approved Yes
- Plated Y
- UPC 781810053089
- Dimension - Bolt Size fraction 1/2
- Dimension - Hole Size mm 14 mm
- Dimension - Pad Width inch 1.02 in
- Conductor - Material Copper
- Physical Attribute - Tongue Type 45 degree
- Color Code Purple
- Feature - Barrel Style Chamfered
- Die Index 15
- Feature - Barrel Type Long
- Dimension - B Length inch 1.62 in
- Dimension - Z inch 0.64 in
- Dimension - Length Overall inch 4.88 in
- Physical Attribute - Tongue Angle 45 Degree
- Dimension - Thread Size 1/2
- Conductor - Copper Str Navy Size 200 (61) Navy
- Physical Attribute - Number of Holes 2
- Trade Name HYLUG™
- Connector Type Terminal
- Dimension - B Length fraction 1 - 5/8
- Dimension - N inch 0.63 in
- Voltage - Maximum 35000
- Conductor - Copper DLO Size Range N/A
- Conductor - Copper Str Size 4/0 AWG
- Certification - ETL No
- Voltage Rating 35 kV
- Industry Standard(s) UL 486A-486B
- Conductor - Copper Str Size Range 4/0 AWG
- UL Listed Yes
- Certification - cULus No
- Minimum Pack Quantity 10
- Standards - Industry Standards Met UL 486A-486B
- Certification - UL Recognized No
- Standards - RoHS Compliance Status CM
