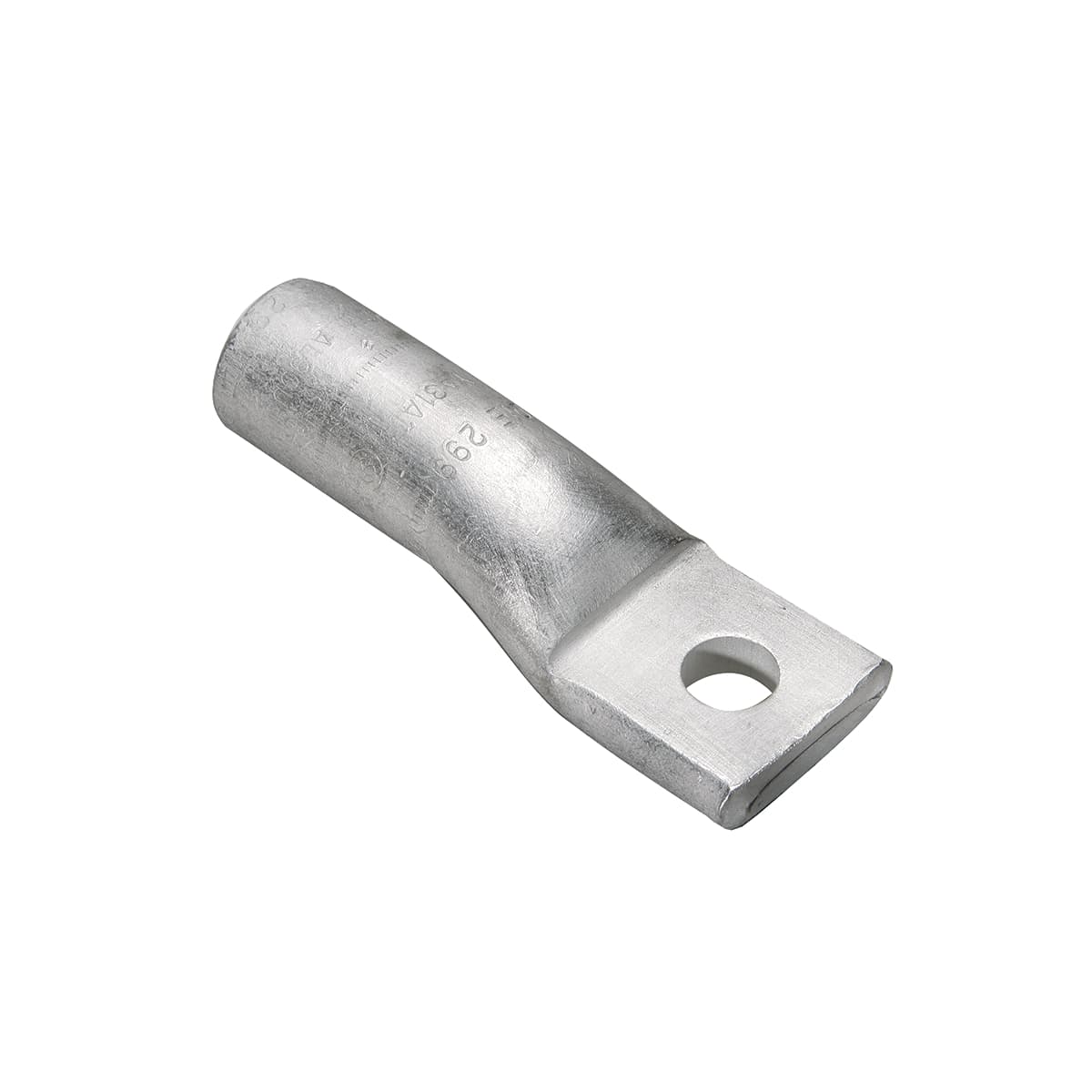

YA28A3 Hubbell Electronic Components
Part#:YA28A3
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!
4/0 AWG, AL Terminal, One Hole, 1/2", Stud Size, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™, End Cap, UL/CSA, 90°C, Up to 35kV, White Color Code, 298 Die Index ; Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals Are Dual-R
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA28A3 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Feature - Barrel Style Chamfered
- Color Code White
- Plating Type Tin - Electro Plated
- Trade Name HYLUG™
- Dimension - B Length fraction 1-3/8 in
- Dimension - D inch 1.36 in
- Dimension - Length Overall inch 3.44 in
- Dimension - Strip Length inch 1-5/8
- Conductor - Copper Str Size 4/0 AWG
- Certification - cULus No
- Voltage - Maximum 35000
- Standards - RoHS Compliance Status CM
- Connector Type Terminal
- Plated Y
- UPC 781810754801
- Dimension - Bolt Hole Size inch 0.52 in
- Dimension - Hole Size mm 14 mm
- Dimension - Stud Size inch 1/2
- Dimension - Outside Diameter inch 0.85 in
- Wire Size 4/0 AWG
- Physical Attribute - Tongue Angle Straight
- Certification - CSA Approved Yes
- Voltage Rating 35 kV
- Standards - Industry Standards Met UL 486A-486B
- Die Index 298
- Physical Attribute - Tongue Type Standard
- Type YA-A, Dual Rated
- Dimension - Bolt Size fraction 1/2
- Dimension - N inch 0.63 in
- Dimension - Z inch 0.73 in
- Conductor - AL Str Size 4/0 AWG
- Certification - UL Recognized No
- Minimum Pack Quantity 1
- Physical Attribute - Number of Holes 1
- EU RoHS Indicator Yes
- UPC 12 Digit 7818107548011
- Dimension - Hole Size inch 0.56 in
- Dimension - Stud Size fraction 1/2"
- Dimension - Pad Width inch 1.17 in
- Conductor - Copper Str Size Range 4/0 AWG
- Industry Standard(s) UL 486A-486B
- Feature - Barrel Type Standard
- Sub Brand HYLUG
- Temperature Rating 194
- Dimension - B Length inch 1.39 in
- Dimension - L Length Overall mm 87 mm
- Dimension - Thread Size 1/2
- Rating - KVA 35 kV
- Conductor - AL Str Size Range 4/0 AWG
- Certification - ETL No
- UL Listed Yes
