YA28N90 Hubbell Electronic Components
Part#:YA28N90
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

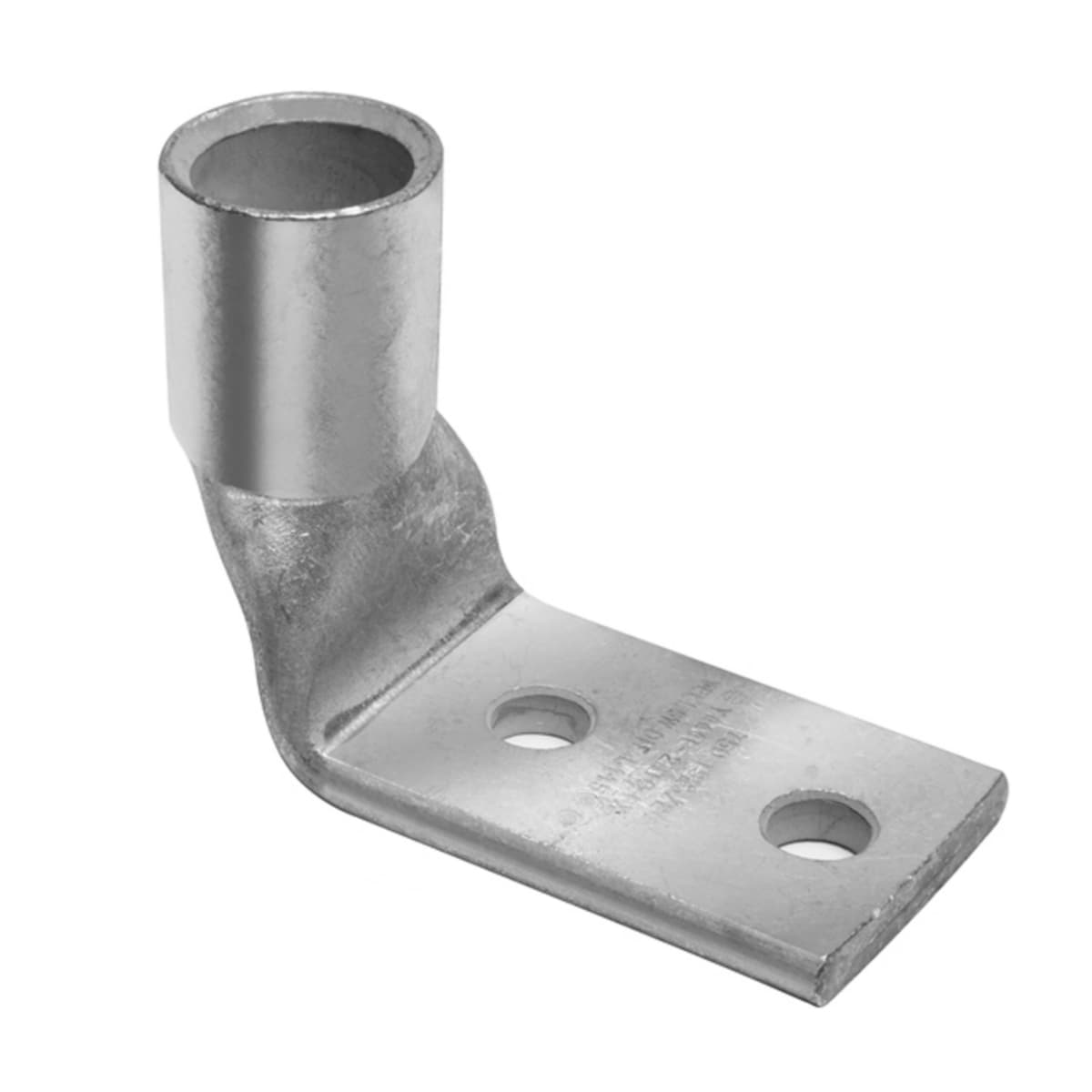

Copper HYLUG™, 1 Hole W/O Inspection Window , 4/0 AWG FLEX, 1/2" stud,Long Barrel,Electro Tin Plated.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA28N90 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Type Long Barrel, Tin Plated
- Physical Attribute - Number of Holes 1
- Color Code Purple
- Dimension - Bolt Hole Size inch 0.52 in
- Die Index 15
- Dimension - B Length fraction 1-5/8 in
- Plating Type Tin - Electro Plated
- Dimension - Hole Size mm 14 mm
- Dimension - Outside Diameter inch 0.69 in
- Conductor - Copper Str Navy Size 200 (61) Navy
- Certification - cULus No
- Feature - Barrel Type Long
- Feature - Barrel Style Chamfered
- Trade Name HYLUG™
- Dimension - B Length inch 1.62 in
- Dimension - L Length Overall mm 44 mm
- Dimension - Z inch 0.64 in
- Rating - KVA 35 kV
- Plated Y
- Connector Type Terminal
- UPC 781810275801
- Dimension - Bolt Size fraction 1/2
- Dimension - N inch 0.63 in
- Physical Attribute - Tongue Angle 90 Degree
- Voltage - Maximum 35000
- Certification - ETL No
- Minimum Pack Quantity 10
- Dimension - Hole Size inch 0.56 in
- Voltage Rating 35 kV
- Certification - CSA Approved Yes
- Dimension - Thread Size 1/2
- Conductor - Copper Str Size 4/0 AWG
- Conductor - Material Copper
- Industry Standard(s) UL 486A-486B
- Dimension - Length Overall inch 1.73 in
- Standards - RoHS Compliance Status CM
- UPC 12 Digit 7818102758011
- Dimension - Strip Length inch 1-11/16
- Dimension - Pad Width inch 1.02 in
- Conductor - Copper Str Size Range 4/0 AWG
- UL Listed Yes
- Certification - UL Recognized No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YA28N90 Specs
