YA28L2TC3890 Hubbell Electronic Components
Part#:YA28L2TC3890
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

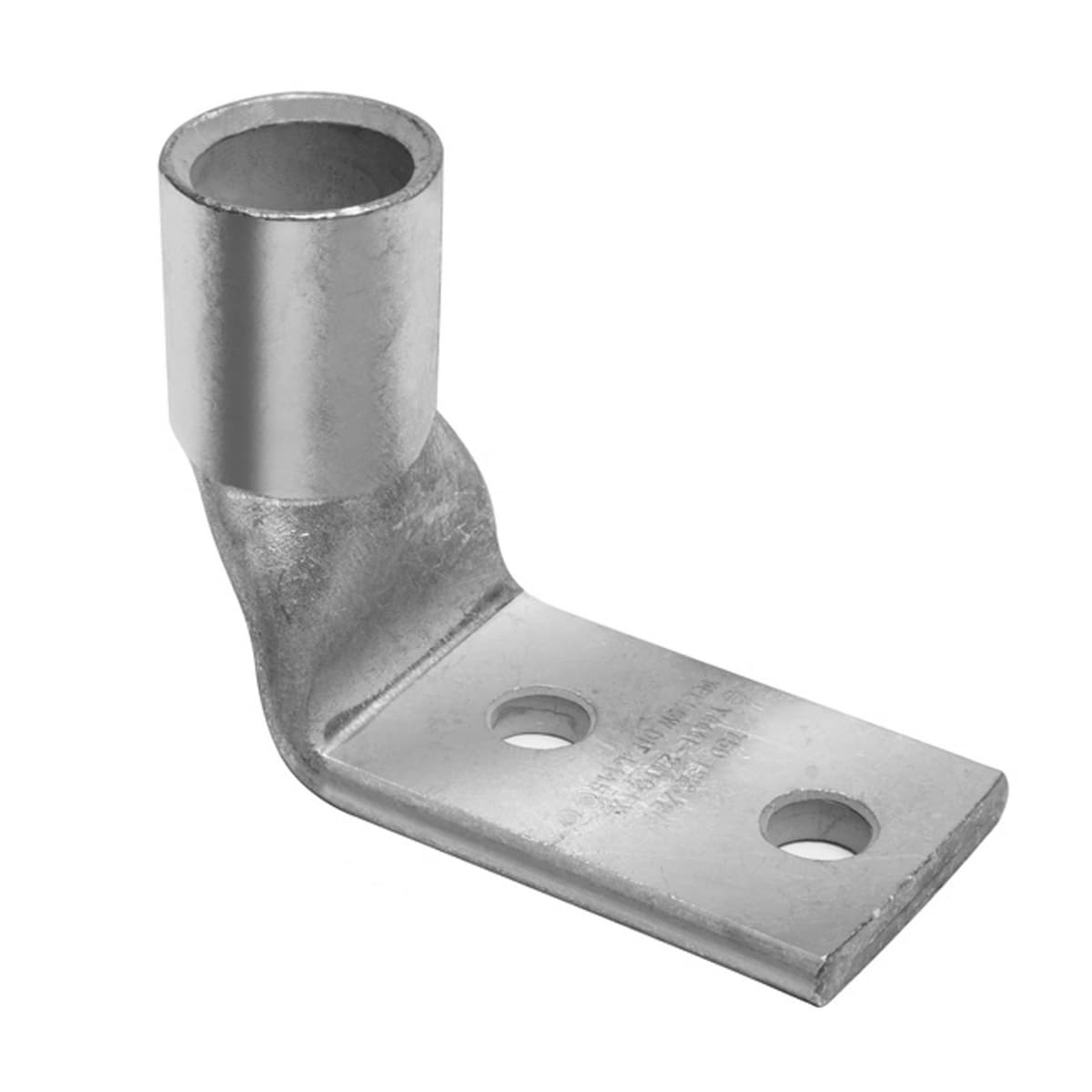

Copper HYLUG™, 1 Hole W/ Inspection Window , 4/0 AWG FLEX, 3/8" stud, Tin electro plated.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA28L2TC3890 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Color Code Purple
- Plated Y
- Dimension - Hole Size inch 0.40 in
- UPC 12 Digit 7818100194122
- Dimension - Pad Width inch 1.02 in
- Rating - KVA 35 kV
- Feature - Barrel Style Chamfered
- Trade Name HYLUG™
- Dimension - B Length fraction 7/8 in
- Dimension - N inch 0.41 in
- Feature - Barrel Type Standard
- Dimension - B Length inch 0.88 in
- Type Standard Barrel, Tin Plated
- Dimension - Length Overall inch 2.30 in
- Dimension - Thread Size 3/8
- Die Index 15
- Plating Type Tin - Electro Plated
- Physical Attribute - Tongue Type Standard
- Dimension - Bolt Hole Size inch 0.39 in
- Connector Type Terminal
- Physical Attribute - Number of Holes 2
- UPC 781810019412
- Dimension - Hole Size mm 10 mm
- Dimension - Strip Length inch 1-1/8
- Standards - RoHS Compliance Status CM
- Dimension - Stud Size inch 3/8
- Conductor - Material Copper
- Minimum Pack Quantity 10
- Dimension - L Length Overall mm 58 mm
- Dimension - Z inch 0.42 in
- Certification - cULus No
- Dimension - Bolt Size fraction 3/8
- Industry Standard(s) UL 486A-486B
- UL Listed Yes
- Physical Attribute - Tongue Angle 90 Degree
- Certification - ETL No
- Standards - Industry Standards Met UL 486A-486B
- Conductor - Copper Str Size Range 4/0 AWG
- Certification - UL Recognized No
- Voltage - Maximum 35000
- Conductor - Copper Str Size 4/0 AWG
- Conductor - Copper DLO Size Range N/A
- Dimension - Outside Diameter inch 0.69 in
- Voltage Rating 35 kV
- Certification - CSA Approved Yes
- Conductor - Copper Str Navy Size 200 (61) Navy
