YA29A2NG1TN Hubbell Electronic Components
Part#:YA29A2NG1TN
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

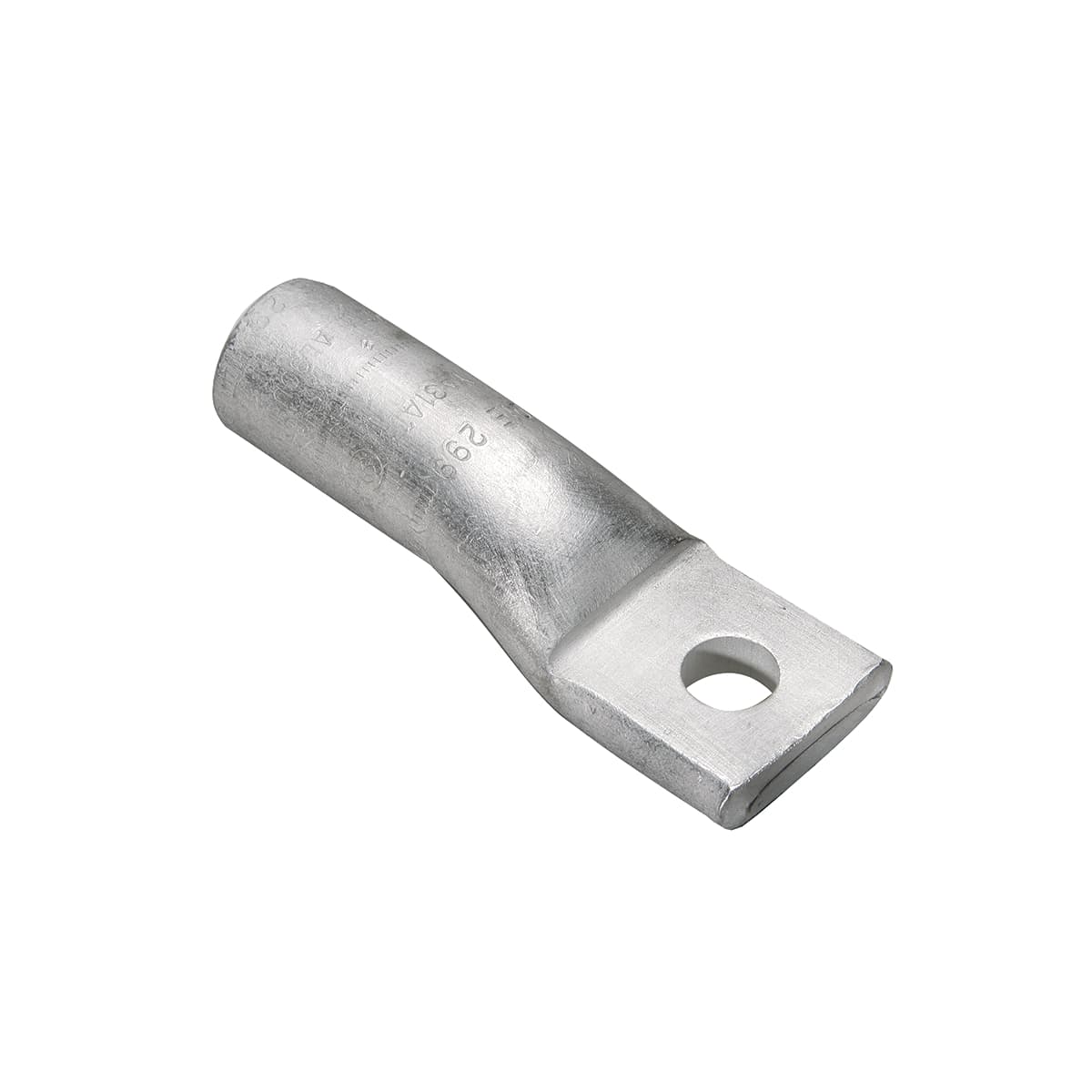

HYLUG™ Aluminum Compression Terminal; Tin Plated.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA29A2NG1TN Hubbell price in the box on the right side or send a quick quote.
Product Details
- Voltage - Maximum 35000
- Conductor - Copper Str Size Range 250 kcmil
- Standards - Industry Standards Met UL 486A-486B
- Physical Attribute - Tongue Type Standard
- Die Index 324
- UPC 12 Digit 7818101781888
- Dimension - D inch 3.08 in
- Dimension - Thread Size 1/2
- Standards - RoHS Compliance Status CM
- Feature - Barrel Style Chamfered
- Plating Type Tin - Electro Plated
- Dimension - Bolt Hole Size inch 0.52 in
- Dimension - Pad Width inch 1.26 in
- Voltage Rating 35 kV
- Certification - UL Recognized No
- Connector Type Terminal
- Feature - Barrel Type Standard
- Temperature Rating 194
- UPC 781810178188
- Dimension - Bolt Size fraction 1/2
- Dimension - Hole Size mm 14 mm
- Dimension - N inch 0.62 in
- Dimension - Z inch 0.64 in
- Certification - CSA Approved No
- Conductor - AL Str Size Range 250 kcmil
- Industry Standard(s) UL 486A-486B
- Plated Y
- Dimension - B Length fraction 4 in
- Dimension - L Length Overall mm 197 mm
- Physical Attribute - Tongue Angle Straight
- Conductor - AL Str Size 250 kcmil
- Certification - cULus No
- UL Listed No
- Rating - KVA 35 kV
- Certification - ETL No
- Minimum Pack Quantity 25
- Trade Name HYLUG™
- Color Code Red
- Physical Attribute - Number of Holes 2
- Dimension - B Length inch 4.00 in
- Dimension - Length Overall inch 7.76 in
- Dimension - Hole Size inch 0.56 in
- Dimension - Outside Diameter inch 0.92 in
