YA29LB Hubbell Electronic Components
Part#:YA29LB
Manufacturer:Hubbell
Product Lifecycle:Active
In-stock parts: 24
Nov 6, 2025

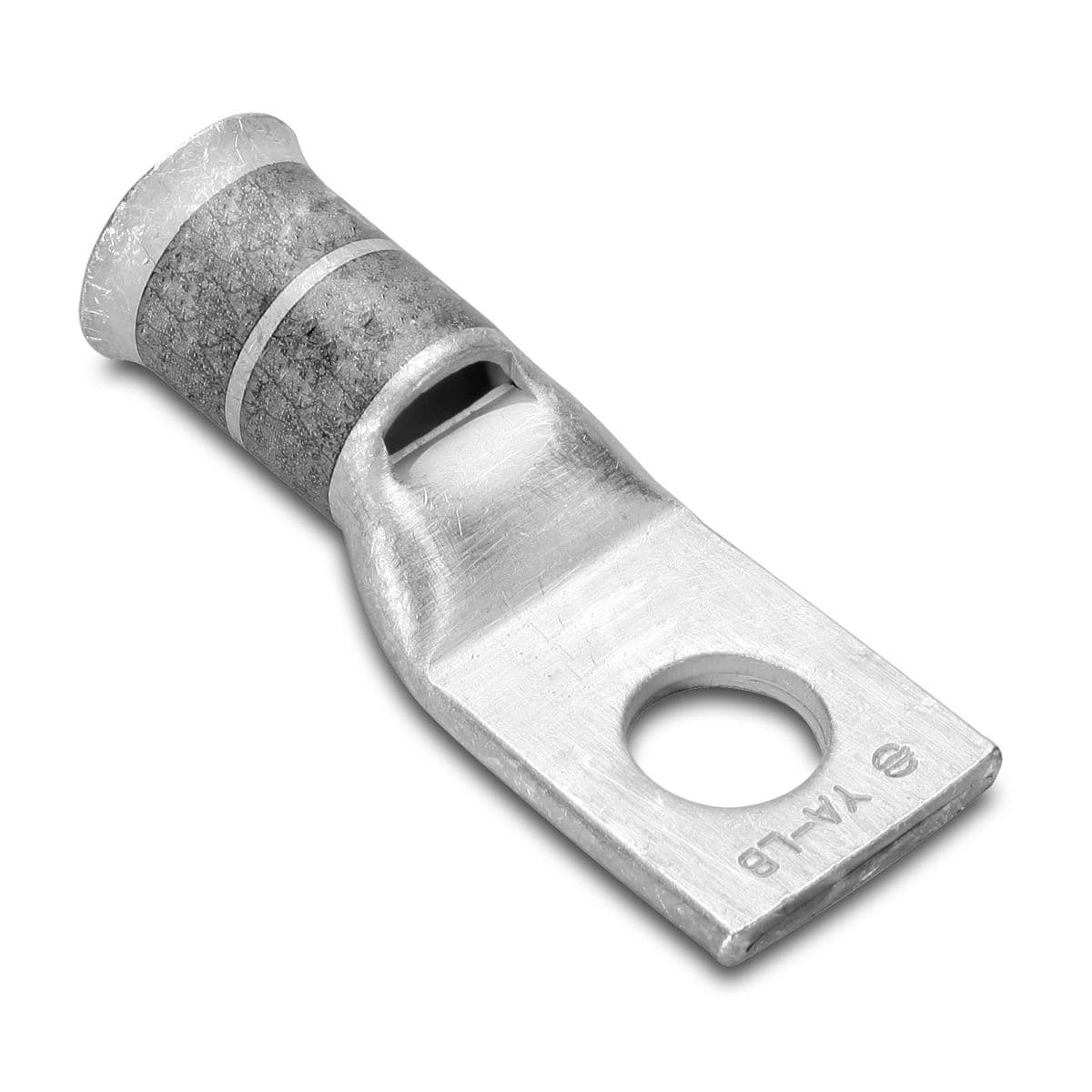

Copper Compression Lug, 1 Hole w/ Inspection Window, 4/0 Flex, 1/2" Stud, Short Barrel, Belled End, Tin Plated. ; Features: UL Listed 90 DEG C, 600 V - 35 KV, Temperature Rating: 90 DEG C, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: U29D
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA29LB Hubbell price in the box on the right side or send a quick quote.
Product Details
- EU RoHS Indicator Yes
- Physical Attribute - Number of Holes 1
- Dimension - Hole Size mm 13 mm
- Connector Type Terminal
- Temperature Rating 194
- UPC 12 Digit 7818105044200
- Dimension - Pad Width inch 1.11 in
- Conductor - Copper Flex G Size 4/0
- Rating - KVA 35 kV
- Conductor - Copper Solid Size 250
- Conductor - Copper Str Size Range 250 kcmil
- Die Index 16
- Physical Attribute - Tongue Type Standard
- Trade Name HYLUG™
- Dimension - Bolt Size fraction 1/2
- Dimension - L Length Overall mm 70 mm
- Dimension - Strip Length inch 1-1/16
- Voltage - Maximum 35000
- Conductor - Copper Flex H Size 4/0
- Conductor - Copper Solid Size Range 250
- Conductor - Material Copper
- UL Listed Yes
- Standards - Industry Standards Met UL 486A-486B
- Voltage Rating 35 kV
- Conductor - Copper Flex M Size 4/0
- Certification - CSA Approved Yes
- Plating Type Tin - Electro Plated
- Dimension - B Length inch 1.04 in
- Dimension - D inch 1.08 in
- Dimension - N inch 0.53 in
- Color Code Yellow
- Plated Y
- Type Standard Belled Barrel, Tin Plated
- Dimension - Bolt Hole Size inch 0.52 in
- Dimension - Length Overall inch 2.77 in
- Dimension - Z inch 0.55 in
- Conductor - Copper Flex I Size 4/0
- Conductor - Copper Str Navy Size 250 (61)
- Certification - ETL No
- Minimum Pack Quantity 1
- Sub Brand HYLUG
- UPC 781810504420
- Dimension - Hole Size inch 0.53 in
- Feature - Barrel Style Belled
- Feature - Barrel Type Standard
- Dimension - Outside Diameter inch 0.75 in
- Physical Attribute - Tongue Angle Straight
- Conductor - Copper DLO Size 4/0 (550/#24)
- Conductor - Copper Flex K Size 4/0
- Conductor - Copper Str Size 250
- Standards - RoHS Compliance Status CM
- Certification - UL Recognized No
- Industry Standard(s) UL 486A-486B
- Certification - cULus No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YA29LB Specs
1-year warranty
