YA29L2 Hubbell Electronic Components
Part#:YA29L2
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

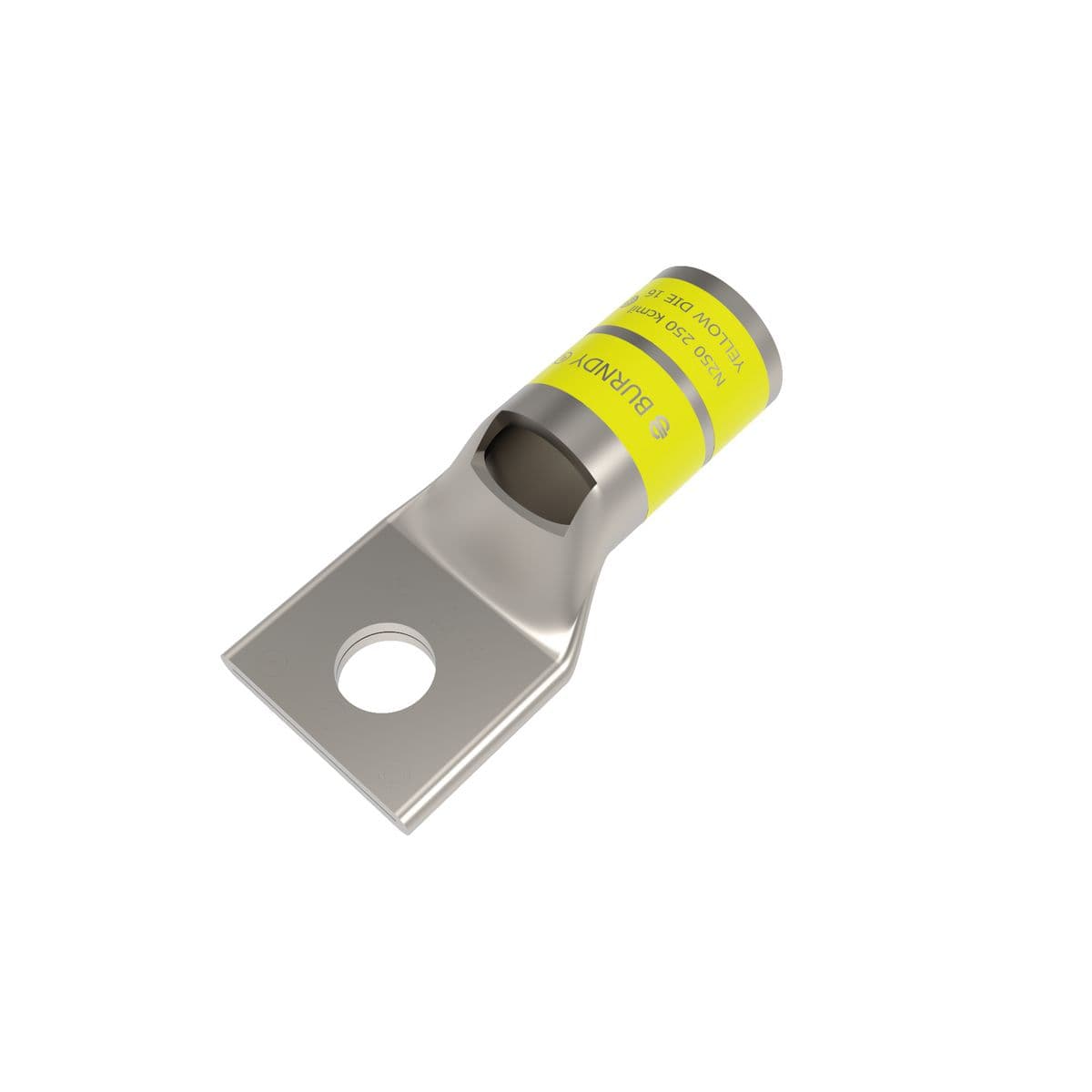

250 kcmil CU, One Hole, 1/4 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90° Up to 35kV, YELLOW Color Code, 16 Die Index.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA29L2 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Color Code Yellow
- Plating Type Tin - Electro Plated
- Plated Y
- Feature - Barrel Style Chamfered ; Skived
- Dimension - B Length inch 1.06 in
- Dimension - Length Overall inch 2.17 in
- Dimension - Bolt Hole Size inch 0.27 in
- Conductor - Copper Str Size 250 kcmil
- Certification - CSA Approved Yes
- Minimum Pack Quantity 1
- Die Index 16
- Feature - Barrel Type Standard
- Dimension - Hole Size mm 7 mm
- UPC 781810554517
- Dimension - Pad Width inch 1.11 in
- Dimension - Z inch 0.33 in
- Conductor - Copper DLO Size Range N/A
- Industry Standard(s) UL 486A-486B
- Connector Type Terminal
- Physical Attribute - Tongue Type Standard
- Dimension - B Length fraction 1-1/16 in
- Dimension - L Length Overall mm 55 mm
- Physical Attribute - Tongue Angle Straight
- Conductor - Copper Str Size Range 250 kcmil
- Certification - UL Recognized No
- Certification - cULus No
- Trade Name HYLUG™
- Dimension - D inch 0.58 in
- Dimension - Outside Diameter inch 0.75 in
- Dimension - Stud Size fraction 1/4
- Conductor - Copper Str Navy Size 250 (61) Navy
- Conductor - Material Copper
- Standards - RoHS Compliance Status CM
- Standards - Industry Standards Met UL467
- Type Standard Barrel, Tin Plated
- Dimension - Bolt Size fraction 1/4
- Physical Attribute - Number of Holes 1
- Dimension - N inch 0.25 in
- Dimension - Stud Size inch 1/4
- Voltage - Maximum 35000
- Voltage Rating 35 kV
- Certification - ETL No
- Conductor - Copper Str Navy Size Range 250 (61) Navy
- Dimension - Strip Length inch 1-1/8
- Rating - KVA 35 kV
- UL Listed Yes
