YA444NDTS Hubbell Electronic Components
Part#:YA444NDTS
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

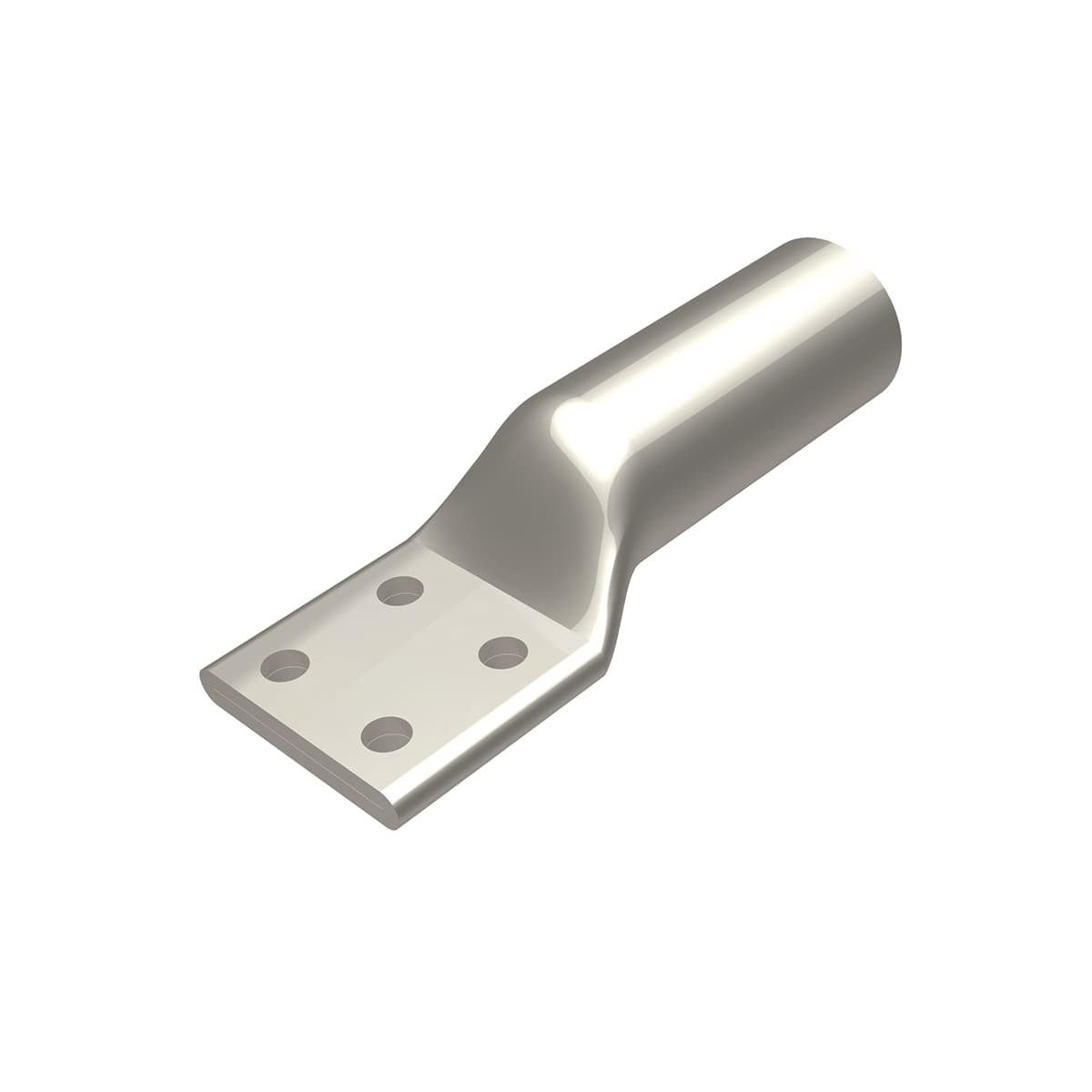

HYLUG™ Aluminum Compression Terminal; Accommodates: 1000 kcmil; Stud Size: 1/2"; Die Index: 27.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA444NDTS Hubbell price in the box on the right side or send a quick quote.
Product Details
- Outside Diameter 1.50 in
- Voltage Rating 35 kV
- Feature - Barrel Type Standard
- Color Code White
- UPC 781810439586
- Trade Name HYLUG™
- Dimension - Bolt Hole Size inch 0.52 in
- Dimension - N inch 0.63 in
- Standards - RoHS Compliance Status CM
- Industry Standard(s) UL 486A-486B
- Plated Y
- Dimension - B Length inch 3.00 in
- Dimension - F Width Center to Center inch 1.75 in
- Connector Type Terminal
- Physical Attribute - Number of Holes 4
- Dimension - Length Overall inch 7.14 in
- Dimension - Pad Width inch 3.00 in
- Dimension - Z inch 0.64 in
- Conductor - Copper Str Size 1000 kcmil
- Feature - Barrel Style Chamfered
- Plating Type Tin - Electro Plated
- Dimension - Bolt Size fraction 1/2
- Dimension - Hole Size mm 14 mm
- Dimension - Strip Length inch 3-1/16
- Physical Attribute - Tongue Angle Straight
- Voltage - Maximum 35000
- Certification - CSA Approved Yes
- Dimension - D inch 3.02 in
- Dimension - L Length Overall mm 181 mm
- Dimension - Thread Size 1/2
- Length 7.14 in
- Physical Attribute - Tongue Type Standard
- Dimension - B Length fraction 3 in
- Conductor - AL Str Size Range 1000 kcmil
- Conductor - Copper Str Size Range 1000 kcmil
- UL Listed Yes
- Dimension - Outside Diameter inch 1.50 in
- Rating - KVA 35 kV
- Die Index 27
- UPC 12 Digit 7818104395866
- Temperature Rating 194
- Dimension - Hole Size inch 0.56 in
- Certification - ETL No
- Certification - cULus No
- Minimum Pack Quantity 12
- Standards - Industry Standards Met UL 486A-486B
- Conductor - Copper DLO Size Range N/A
- Certification - UL Recognized No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YA444NDTS Specs
