YA44L2NT38FX45 Hubbell Electronic Components
Part#:YA44L2NT38FX45
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

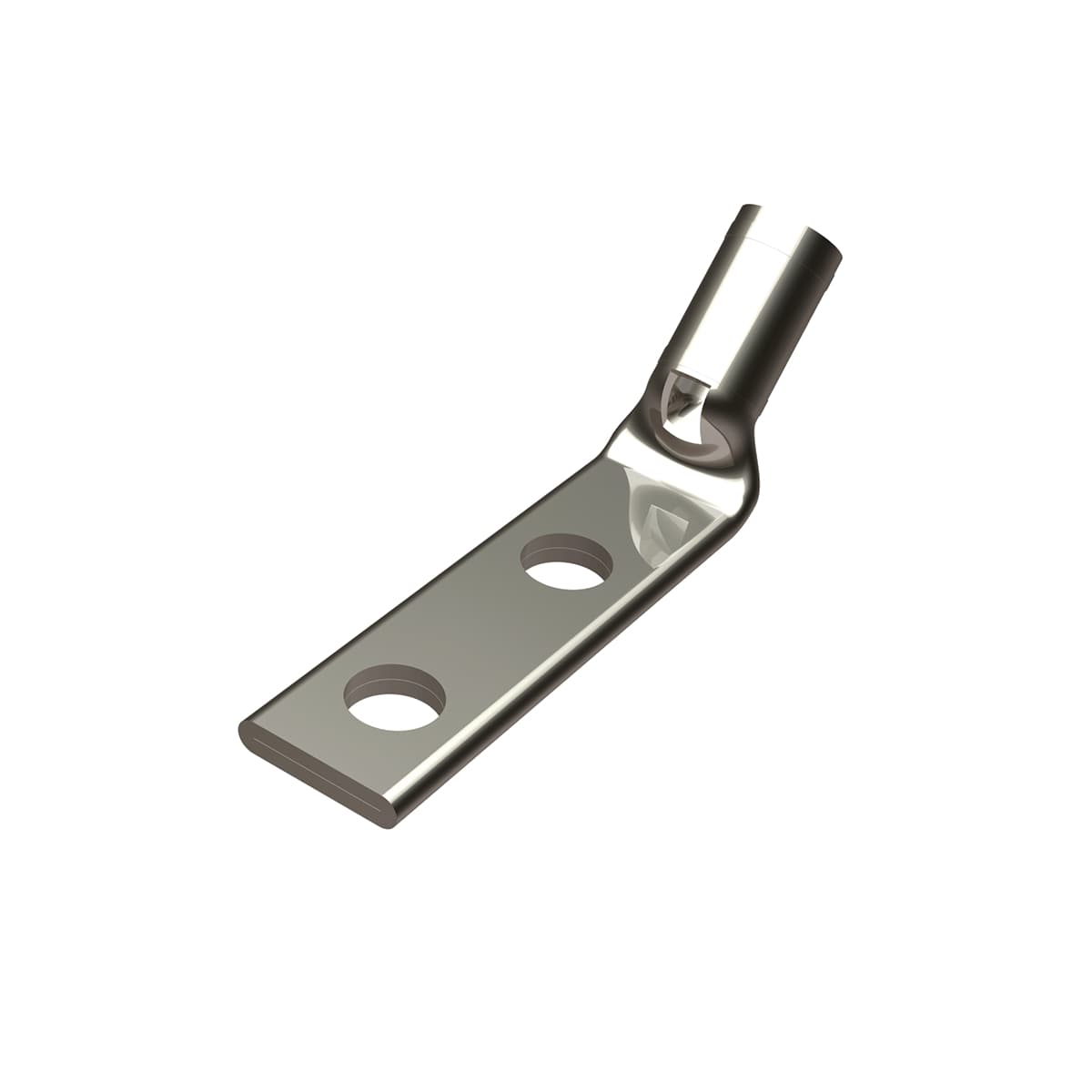

Cu Comp Terminal Flex Cond, 2 Hole/W/InspWindow, 777.7 kcmil(1925/#24)DLO, 750 kcmil FLEX, 600 V-35 kV, 3/8" Stud, 1.00" Spacing, 45 Deg Bent, Std bbl. ; UL Listed 90 DEG C, 600 V - 35 KV, Tongue Angle: 45 DEG Angle
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA44L2NT38FX45 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Physical Attribute - Tongue Type Straight
- Color Code Yellow
- Trade Name HYLUG™
- UPC 12 Digit 7818100804299
- Dimension - Strip Length inch 1-5/8 in
- Dimension - Length Overall inch 4.71 in
- Voltage - Maximum 35000
- Die Index L115
- Physical Attribute - Number of Holes 2
- Sub Brand HYLUG
- Dimension - Bolt Hole Size inch 3/8 in
- Dimension - Hole Size mm 78 mm
- Dimension - Pad Width inch 1.63 in
- Dimension - Z inch 0.53 in
- Physical Attribute - Tongue Angle 45 Degree
- Connector Type Terminal
- Feature - Barrel Type Standard
- Plated Y
- Dimension - B Length inch 1.65 in
- Dimension - Hole Size inch 3.07 in
- Dimension - L Length Overall mm 120 mm
- Dimension - Thread Size 3/8
- Conductor - Copper Flex G Size 750
- Certification - UL Recognized No
- Minimum Pack Quantity 1
- EU RoHS Indicator Yes
- Plating Type Tin -Plated
- Dimension - Bolt Size fraction 3/8
- UPC 781810080429
- Dimension - N inch 0.50 in
- Voltage Rating 35 kV
- Certification - CSA Approved Yes
- UL Listed Yes
- Feature - Barrel Style Chamfered ; Skived
- Type Standard Barrel, Tin Plated
- Dimension - Height inch 3.07 in
- Dimension - Stud Size inch 3/8 in
- Industry Standard(s) UL 486A-486B
- Conductor - Copper Flex G Size Range 750 kcmil
- Conductor - Copper Str Size 750 kcmil/FLEX
- Certification - ETL No
- Conductor - Copper Flex M Size 750
- Standards - RoHS Compliance Status CM
- Conductor - Copper Solid Size 750 kcmil/FLEX
- Conductor - Material Copper
- Certification - cULus No
- Dimension - Outside Diameter inch 1.5 in
- Conductor - Copper DLO Size Range 777 kcmil
- Conductor - Copper Flex K Size 750
- Conductor - Copper Flex H Size Range 750 kcmil
- Conductor - Copper Flex I Size Range 750 kcmil
- Conductor - Copper Flex I Size 750
- Rating - KVA 35 kV
- Conductor - Copper Str Size Range 750 kcmil
- Conductor - Copper DLO Size 777.7 (1925/#24)
- Conductor - Copper Flex H Size 750
