YA44A6DT Hubbell Electronic Components
Part#:YA44A6DT
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

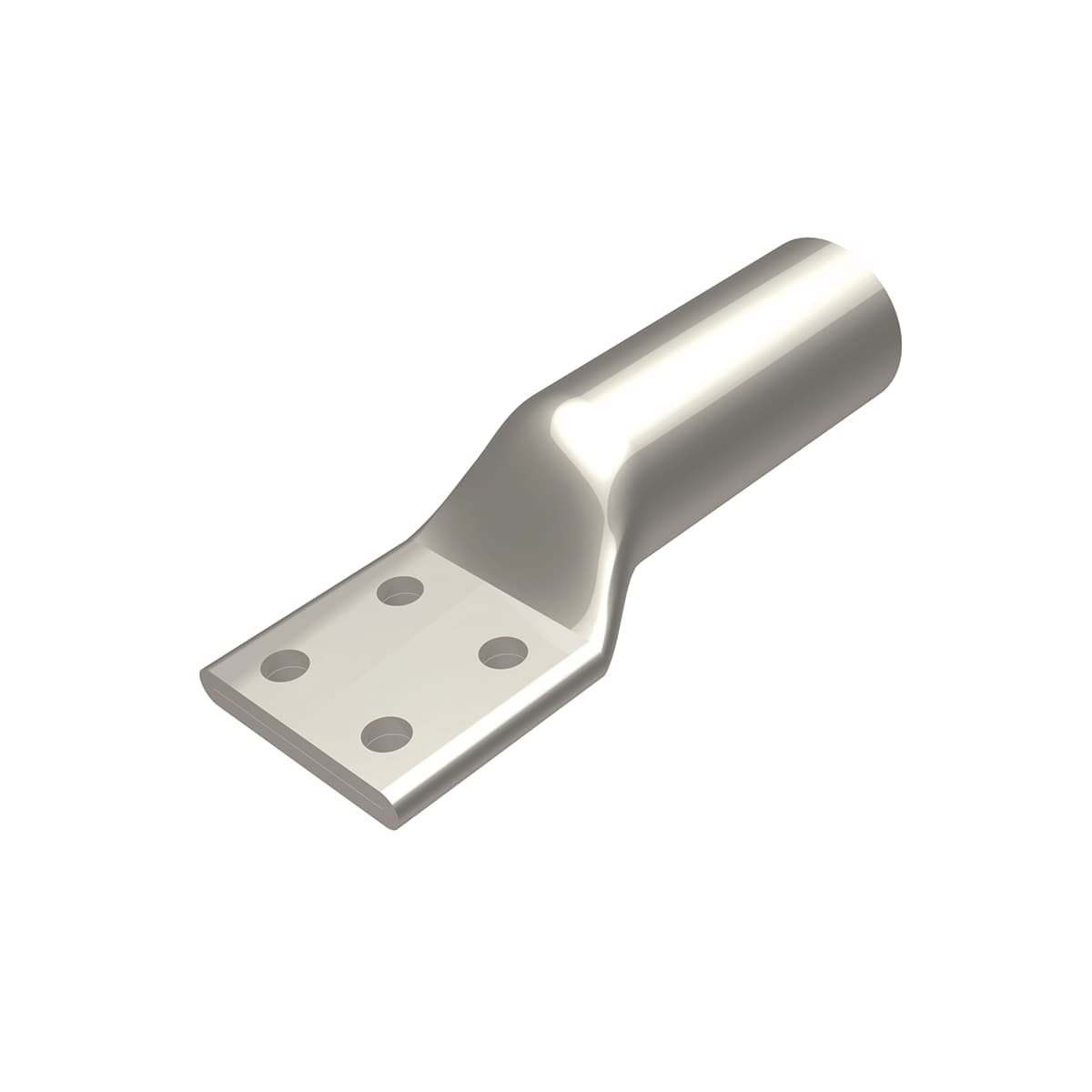

HYLUG™ Aluminum Compression Terminal; UL Listed 90° C; 600 V to 35 kV.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA44A6DT Hubbell price in the box on the right side or send a quick quote.
Product Details
- Physical Attribute - Tongue Type Standard
- Trade Name HYLUG™
- Dimension - B Length inch 2.74 in
- Minimum Pack Quantity 1
- Dimension - Length Overall inch 7.76 in
- Plating Type Tin - Electro Plated
- Dimension - Hole Size inch 0.56 in
- UPC 12 Digit 7818104395933
- UPC 781810439593
- Dimension - D inch 3.15 in
- Voltage Rating 35 kV
- Conductor - Copper Str Size Range 1000 kcmil
- Standards - Industry Standards Met UL 486A-486B
- Standards - RoHS Compliance Status CM
- Feature - Barrel Type Standard
- Color Code Gray
- Temperature Rating 194
- Dimension - B Length fraction 2-3/4 in
- Dimension - F Width Center to Center inch 1.75 in
- Dimension - L Length Overall mm 197 mm
- Dimension - Z inch 0.77 in
- Dimension - Bolt Size fraction 1/2
- Dimension - Bolt Hole Size inch 0.52 in
- Dimension - Outside Diameter inch 1.84 in
- Physical Attribute - Tongue Angle Straight
- Conductor - AL Str Size 1000 kcmil
- Certification - ETL No
- Plated Y
- Voltage - Maximum 35000
- Certification - CSA Approved Yes
- Certification - UL Recognized No
- Feature - Barrel Style Chamfered
- Connector Type Terminal
- Die Index 474
- Physical Attribute - Number of Holes 4
- Dimension - Hole Size mm 14 mm
- Dimension - Pad Width inch 3.03 in
- Dimension - Thread Size 1/2
- Rating - KVA 35 kV
- Dimension - N inch 0.63 in
- UL Listed Yes
- Conductor - Copper Str Size 1000 kcmil
- Certification - cULus No
- Industry Standard(s) UL 486A-486B
- Conductor - AL Str Size Range 1000 kcmil
