YA44L2TC12E3FX Hubbell Electronic Components
Part#:YA44L2TC12E3FX
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

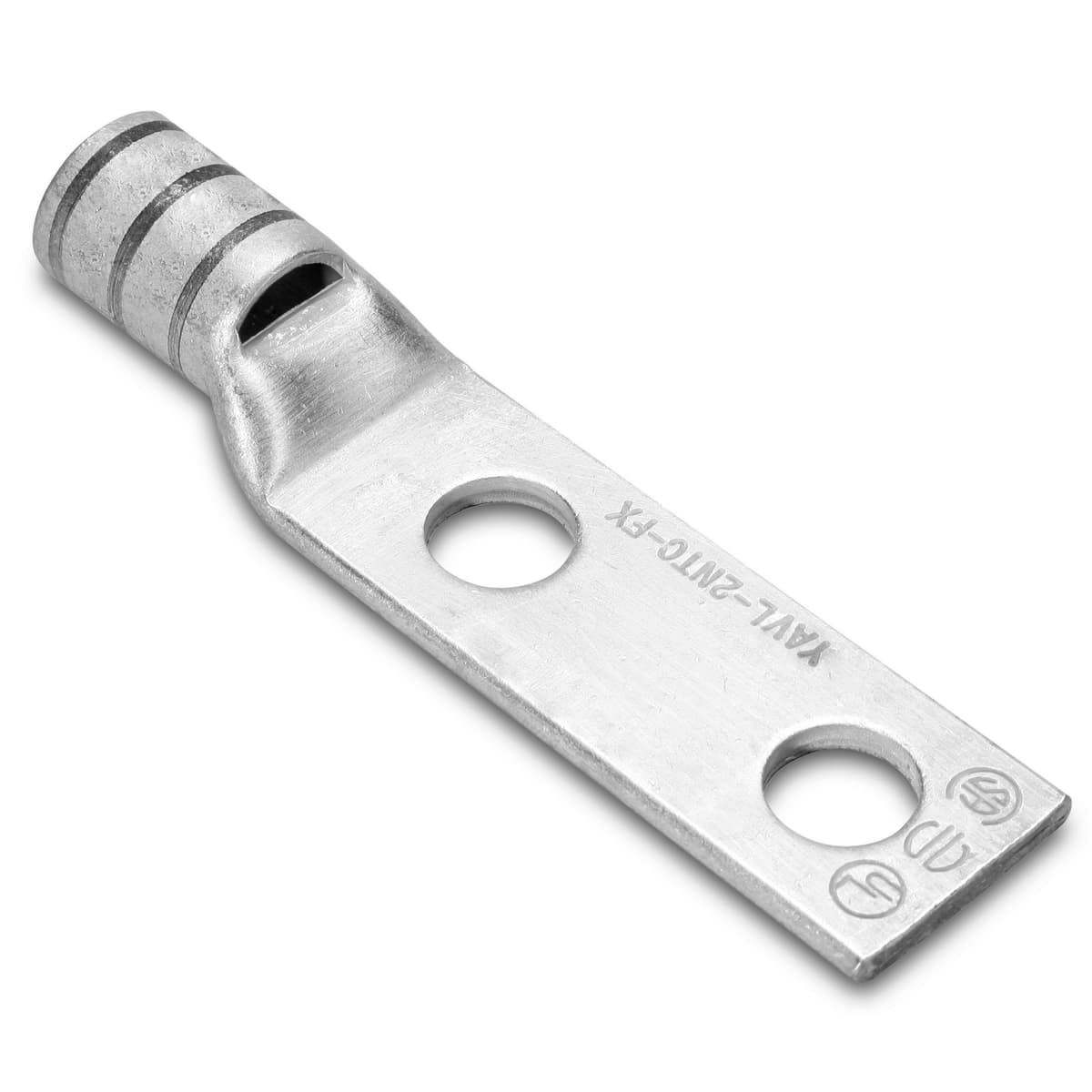

750 kcmil G,H,777 DLO CU, Two Hole, 1/2 Stud Size, 1-1/2 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Yellow Color Code, L115 Die Index.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YA44L2TC12E3FX Hubbell price in the box on the right side or send a quick quote.
Product Details
- Color Code Yellow
- Plating Type Tin -Plated
- Dimension - Hole Size inch 0.53 in
- Dimension - Pad Width inch 2.19 in
- UPC 781810021095
- Dimension - Z inch 0.56 in
- Voltage Rating 35 kV
- Feature - Barrel Style Chamfered ; Skived
- Dimension - Bolt Size fraction 1/2
- Dimension - Strip Length inch 1-5/8 in
- Dimension - N inch 0.53 in
- Rating - KVA 35 kV
- Conductor - Copper Flex G Size 750
- Plated Y
- Physical Attribute - Number of Holes 2
- Die Index L115
- Dimension - Bolt Hole Size inch 1/2 in
- Dimension - Length Overall inch 5.27 in
- Conductor - Material Copper
- UPC 12 Digit 7818100210955
- Trade Name HYLUG™
- Dimension - Hole Size mm 13 mm
- Dimension - Outside Diameter inch 1.5 in
- Dimension - Thread Size 1/2
- Type Standard Barrel, Tin Plated
- Feature - Barrel Type Standard
- Physical Attribute - Tongue Type Straight
- Connector Type Terminal
- Dimension - B Length inch 1.65 in
- Dimension - L Length Overall mm 134 mm
- Conductor - Copper Flex K Size 750
- Conductor - Copper Str Size 750 kcmil/FLEX
- Industry Standard(s) UL 486A-486B
- Conductor - Copper Flex I Size 750
- Certification - CSA Approved Yes
- UL Listed Yes
- Certification - UL Recognized No
- Certification - ETL No
- Standards - RoHS Compliance Status CM
- Conductor - Copper Str Size Range 750 kcmil
- Certification - cULus No
- Voltage - Maximum 35000
- Conductor - Copper Solid Size 750 kcmil/FLEX
- Conductor - Copper DLO Size 777.7 (1925/#24)
- Conductor - Copper Flex M Size 750
- Conductor - Copper Flex I Size Range 750 kcmil
- Conductor - Copper Flex H Size Range 750 kcmil
- Conductor - Copper Flex H Size 750
- Physical Attribute - Tongue Angle Straight
- Conductor - Copper DLO Size Range 777 kcmil
- Minimum Pack Quantity 10
- Dimension - Stud Size inch 1/2 in
- Conductor - Copper Flex G Size Range 750 kcmil
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YA44L2TC12E3FX Specs
