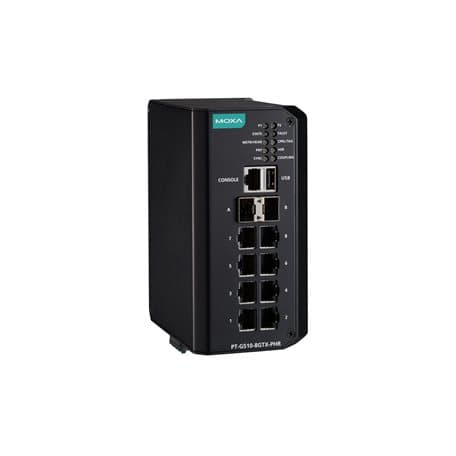

PT-G510-8GTX-PHR-HV Moxa Networking Switches

Product Details

• 100/1000BaseT(X) Ports (RJ45 connector)
  8
• Console Port
  RS-232 (RJ45)
• Safety
  IEC 62368-1; UL 62368-1
• Security
  RADIUS; TACACS+; SSH; Port Lock; Broadcast storm protection; MAB authentication; Sticky MAC; Access control list
• Input Current
  0.3 A @ 110-220 VDC; 0.5 A @ 110-220 VAC
• RSTP Grouping ID Range
  1 to 4094
• Operating Temperature
  -40 to 75°C (-40 to 167°F); -40 to 85°C (-40 to 185°F) for 16 hrs (tested in accordance with IEC 60068-2-2)
• EMC
  EN 55032/35
• VLAN ID Range
  1 to 4094
• IP Rating
  IP30
• Time Management
  NTP Server/Client; SNTP; IEEE 1588v2 PTP (hardware-based)
• Storage Port
  USB Type A
• Storage Temperature (package included)
  -40 to 85°C (-40 to 185°F)
• Redundancy Protocols
  Link Aggregation; MSTP; RSTP; STP; Turbo Chain; Turbo Ring; MRP; HSR; PRP; Coupling; RSTP grouping
• Management
  HTTPS; Dying Gasp; Back Pressure Flow Control; DHCP Option 66/67/82; Fiber check; Flow control; LLDP; Port Mirror; SNMP Inform; BOOTP; DHCP Server/Client; HTTP; IPv4/IPv6; RARP; SMTP; SNMPv1/v2c/v3; Syslog; Telnet; TFTP
• Overload Current Protection
  Supported
• Time
  688,584 hrs
• Filter
  IGMP v1/v2/v3; GMRP; GVRP; 802.1Q; QinQ VLAN
• Packet Buffer Size
  12 Mbits
• Railway
  EN 50121-4
Power Substation
GOOSE Check; IEC 61850 QoS; MMS
Max. No. of VLANs
256
Dimensions (without ears)
74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in)
Ambient Relative Humidity
5 to 95% (non-condensing)
MIB
MIB-II; Ethernet-like MIB; Bridge MIB; P-BRIDGE MIB; Q-BRIDGE MIB; RSTP MIB; RMON MIB Groups 1, 2, 3, 9
IGMP Groups
4096
Alarm Contact Channels
Resistive load: 1 A @ 24 VDC
EMI
CISPR 32, FCC Part 15B Class A
Warranty Period
5 years
Standards
IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3ab for 1000BaseT(X); IEEE 802.3z for 1000BaseX; IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1p for Class of Service; IEEE 802.1Q for VLAN Tagging;
MAC Table Size
16 K
Reverse Polarity Protection
Supported
Installation
DIN-rail mounting
Weight
1476 g (3.25 lb)
Priority Queues
8
Input Voltage
110-220 VAC, 110-220 VDC (88 to 300 VDC, 85 to 264 VAC)
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV; IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF; EN 61000-4-11
