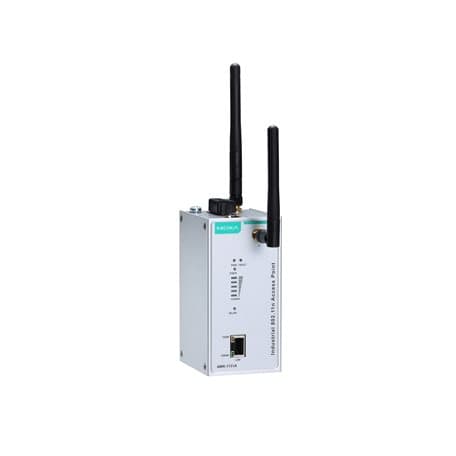

AWK-1131A-EU-T Moxa Data & Networking Devices

Product Details

• Transmitter Power for 802.11g
  23±1.5 dBm @ 6 to 24 Mbps; 21±1.5 dBm @ 36 Mbps; 19±1.5 dBm @ 48 Mbps; 18±1.5 dBm @ 54 Mbps
• Antenna
  External, 2/2 dBi, Omni-directional
• Housing
  Metal
• Operating Temperature
  -40 to 75°C (-40 to 167°F)
• Time
  749,476 hrs
• Transmission Rate
  802.11b: 1 to 11 Mbps; 802.11a/g: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps
• WLAN Operation Mode
  Access point, Client, Sniffer
• Weight
  307 g (0.68 lb)
• Ambient Relative Humidity
  5 to 95% (non-condensing)
• Radio
  EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, MIC, NCC, RCM, SRRC, WPC, KC, ANATEL
• Transmitter Power for 802.11n (5 GHz)
  23±1.5 dBm @ MCS0/8 20 MHz; 18±1.5 dBm @ MCS7/15 20 MHz; 23±1.5 dBm @ MCS0/8 40 MHz; 17±1.5 dBm @ MCS7/15 40 MHz
• Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
  Typ. -93 dBm @ 1 Mbps; Typ. -93 dBm @ 2 Mbps; Typ. -93 dBm @ 5.5 Mbps; Typ. -88 dBm @ 11 Mbps
• Time Management
  SNTP Client
• Installation
  DIN-rail mounting, Wall mounting (with optional kit)
• EMI
  CISPR 32, FCC Part 15B Class A
• WLAN Standards
  802.11a/b/g/n; 802.11i Wireless Security
• Transmitter Power for 802.11b
  26±1.5 dBm @ 1 Mbps; 26±1.5 dBm @ 2 Mbps; 26±1.5 dBm @ 5.5 Mbps; 25±1.5 dBm @ 11 Mbps
• Antenna Connectors
  2 RP-SMA female
• LED Indicators
  PWR, FAULT, STATE, SIGNAL, WLAN, LAN
• Power Consumption
  6.96 W (max.)
Modulation Type
DSSS; OFDM; MIMO-OFDM
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -88 dBm @ 6 Mbps; Typ. -86 dBm @ 9 Mbps; Typ. -85 dBm @ 12 Mbps; Typ. -85 dBm @ 18 Mbps; Typ. -85 dBm @ 24 Mbps; Typ. -82 dBm @ 36 Mbps; Typ. -78 dBm @ 48 Mbps; Typ. -74 dBm @ 54 Mbps
Dimensions
58 x 115 x 70 mm (2.29 x 4.53 x 2.76 in)
Input Voltage
12 to 48 VDC
Safety
EN 60950-1, UL 60950-1
Transmitter Power for 802.11n (2.4 GHz)
23±1.5 dBm @ MCS0/8 20 MHz; 18±1.5 dBm @ MCS7/15 20 MHz; 23±1.5 dBm @ MCS0/8 40 MHz; 17±1.5 dBm @ MCS7/15 40 MHz
Management
DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig
Buttons
Reset button
EMC
EN 55032/24
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -90 @ 6 Mbps; Typ. -88 @ 9 Mbps; Typ. -88 @ 12 Mbps; Typ. -85 @ 18 Mbps; Typ. -81 @ 24 Mbps; Typ. -78 @ 36 Mbps; Typ. -74 @ 48 Mbps; Typ. -72 @ 54 Mbps; Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is
10/100/1000BaseT(X) Ports (RJ45 connector)
1
Input Current
0.56 A @ 12 VDC, 0.14 A @ 48 VDC
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Vibration
IEC 60068-2-6
Frequency Band for EU (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. How
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
Typ. -69 dBm @ MCS7 20 MHz; Typ. -71 dBm @ MCS15 20 MHz; Typ. -63 dBm @ MCS7 40 MHz; Typ. -68 dBm @ MCS15 40 MHz; Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels i
Security
HTTPS/SSL, RADIUS, SSH
Console Port
RS-232, 8-pin RJ45
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 3 V; IEC 61000-4-8 PFMF
Transmitter Power for 802.11a
23±1.5 dBm @ 6 to 24 Mbps; 21±1.5 dBm @ 36 Mbps; 20±1.5 dBm @ 48 Mbps; 18±1.5 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
Typ. -70 dBm @ MCS7 20 MHz; Typ. -69 dBm @ MCS15 20 MHz; Typ. -67 dBm @ MCS7 40 MHz; Typ. -67 dBm @ MCS15 40 MHz
Filter
ICMP, MAC address, IP protocol, Port-based
Reverse Polarity Protection
Supported
Warranty Period
5 years
Wireless Security
WEP encryption (64-bit and 128-bit); WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES); WPA/WPA2-Personal
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.3ab for 1000BaseT(X); IEEE 802.1X for authentication
IP Rating
IP30
Power Connector
1 removable 4-contact terminal block(s)
