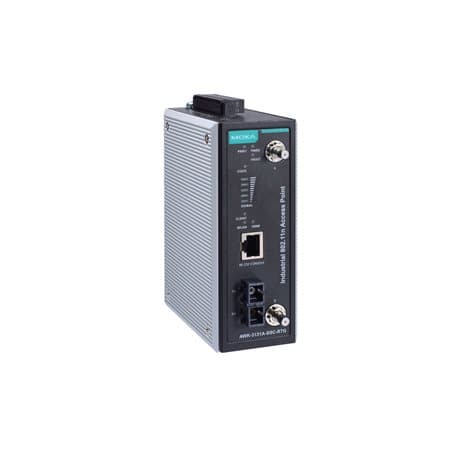

AWK-3131A-SSC-RTG-US-CT-T Moxa Data & Networking Devices

Product Details

• Wireless Security
  SSID broadcast enable/disable; WEP encryption (64-bit and 128-bit); WPA/WPA2-Personal; WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
• Security
  RADIUS
• Alarm Contact Channels
  Relay output with current carrying capacity of 1 A @ 24 VDC
• EMC
  EN 61000-6-2/-6-4
• Transmitter Power for 802.11n (5 GHz)
  23±1.5 dBm @ MCS0 20 MHz; 20±1.5 dBm @ MCS1 20 MHz; 20±1.5 dBm @ MCS2 20 MHz; 20±1.5 dBm @ MCS3 20 MHz; 19±1.5 dBm @ MCS4 20 MHz; 18±1.5 dBm @ MCS5 20 MHz; 18±1.5 dBm @ MCS6 20 MHz; 18±1.5 dBm @ MCS7 20 MHz; 23±1.5 dBm @ MCS8 20 MHz; 20±1.5 dBm @ MCS9 20
• 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
  1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (AWK-3131A-M12-RTG only)
• Installation
  DIN-rail mounting, Wall mounting (with optional kit)
• Ambient Relative Humidity
  5 to 95% (non-condensing)
• Transmitter Power for 802.11g
  23±1.5 dBm @ 6 to 24 Mbps; 21±1.5 dBm @ 36 Mbps; 19±1.5 dBm @ 48 Mbps; 18±1.5 dBm @ 54 Mbps
• Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
  Typ. -88 dBm @ MCS0 20 MHz; Typ. -85 dBm @ MCS1 20 MHz; Typ. -82 dBm @ MCS2 20 MHz; Typ. -79 dBm @ MCS3 20 MHz; Typ. -76 dBm @ MCS4 20 MHz; Typ. -71 dBm @ MCS5 20 MHz; Typ. -70 dBm @ MCS6 20 MHz; Typ. -69 dBm @ MCS7 20 MHz; Typ. -95 dBm @ MCS8 20 MHz; Typ
• Antenna Connectors
  QMA
• Input Current
  AWK-3131A-M12-RTG: 0.85 A @ 12 VDC, 0.22 A @ 48 VDC; AWK-3131A-SSC-RTG: 1.0 A @ 12 VDC, 0.27 A @ 48 VDC
• Storage Temperature (package included)
  -40 to 85°C (-40 to 185°F)
• Warranty Period
  5 years
• Transmitter Power for 802.11a
  23±1.5 dBm @ 6 to 24 Mbps; 21±1.5 dBm @ 36 Mbps; 20±1.5 dBm @ 48 Mbps; 18±1.5 dBm @ 54 Mbps
• Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
  Typ. -93 dBm @ 1 Mbps; Typ. -93 dBm @ 2 Mbps; Typ. -93 dBm @ 5.5 Mbps; Typ. -88 dBm @ 11 Mbps
• LED Indicators
  PWR1, PWR2, PoE*, FAULT, STATE, SIGNAL, CLIENT, WLAN, LAN (AWK-3131A-M12-RTG only),100M (AWK-3131A-SSC-RTG only); *PoE is only available for the AWK-3131A-M12-RTG
• Reverse Polarity Protection
  Supported
• Radio
  EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA
• Frequency Band for US (20 MHz operating channels)
  2.412 to 2.462 GHz (11 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. How
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -88 dBm @ 6 Mbps; Typ. -86 dBm @ 9 Mbps; Typ. -85 dBm @ 12 Mbps; Typ. -85 dBm @ 18 Mbps; Typ. -85 dBm @ 24 Mbps; Typ. -82 dBm @ 36 Mbps; Typ. -78 dBm @ 48 Mbps; Typ. -74 dBm @ 54 Mbps
Buttons
Reset button
IP Rating
IP30
Safety
UL 60950-1, IEC 60950-1, EN 60950-1 (LVD)
WLAN Standards
802.11a/b/g/n; 802.11i Wireless Security
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.3af for PoE; IEEE 802.1Q for VLAN Tagging
Digital Inputs
2; +13 to +30 V for state 1; +3 to -30 V for state 0; Max. input current: 8 mA
Power Consumption
AWK-3131A-M12-RTG: Maximum 10.5 W; AWK-3131A-SSC-RTG: Maximum 13 W
Weight
850 g (1.87 lb)
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8
Modulation Type
DSSS; OFDM; 802.11b: CCK @ 11/5.5 Mbps; 802.11b: DQPSK @ 2 Mbps; 802.11b: DBPSK @ 1 Mbps; 802.11a/g: 64QAM @ 54/48 Mbps; 802.11a/g: 16QAM @ 36/24 Mbps; 802.11a/g: QPSK @ 18/12 Mbps; 802.11a/g: BPSK @ 9/6 Mbps; 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps
WLAN Operation Mode
Access point, Client, Client-Router, Sniffer
Filter
MAC/IP Protocol/Port-based
Housing
Metal
EMI
CISPR 32, FCC Part 15B Class B
Transmission Rate
802.11b: 1 to 11 Mbps; 802.11a/g: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps
Transmitter Power for 802.11b
26±1.5 dBm @ 1 Mbps; 26±1.5 dBm @ 2 Mbps; 26±1.5 dBm @ 5.5 Mbps; 25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11n (2.4 GHz)
23±1.5 dBm @ MCS0 20 MHz; 21±1.5 dBm @ MCS1 20 MHz; 21±1.5 dBm @ MCS2 20 MHz; 21±1.5 dBm @ MCS3 20 MHz; 20±1.5 dBm @ MCS4 20 MHz; 19±1.5 dBm @ MCS5 20 MHz; 18±1.5 dBm @ MCS6 20 MHz; 18±1.5 dBm @ MCS7 20 MHz; 23±1.5 dBm @ MCS8 20 MHz; 21±1.5 dBm @ MCS9 20
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
Typ. -89 dBm @ MCS0 20 MHz; Typ. -85 dBm @ MCS1 20 MHz; Typ. -85 dBm @ MCS2 20 MHz; Typ. -82 dBm @ MCS3 20 MHz; Typ. -78 dBm @ MCS4 20 MHz; Typ. -74 dBm @ MCS5 20 MHz; Typ. -72 dBm @ MCS6 20 MHz; Typ. -70 dBm @ MCS7 20 MHz; Typ. -95 dBm @ MCS8 20 MHz; Typ
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)
1, AWK-3131A-M12-RTG only
100BaseFX Ports (single-mode SC connector)
1, AWK-3131A-SSC-RTG only
Console Port
RS-232 (RJ45-type)
Input Voltage
12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Connector
1 removable 10-contact terminal block(s)
Railway Fire Protection
EN 45545-2
Railway
EN 50155, EN 50121-4
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -90 @ 6 Mbps; Typ. -88 @ 9 Mbps; Typ. -88 @ 12 Mbps; Typ. -85 @ 18 Mbps; Typ. -81 @ 24 Mbps; Typ. -78 @ 36 Mbps; Typ. -74 @ 48 Mbps; Typ. -74 @ 54 Mbps; Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is
Management
General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP; AP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)
Dimensions
52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)
Operating Temperature
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Time
AWK-3131A-M12-RTG: 552,454 hrs; AWK-3131A-SSC-RTG: 528,478 hrs
