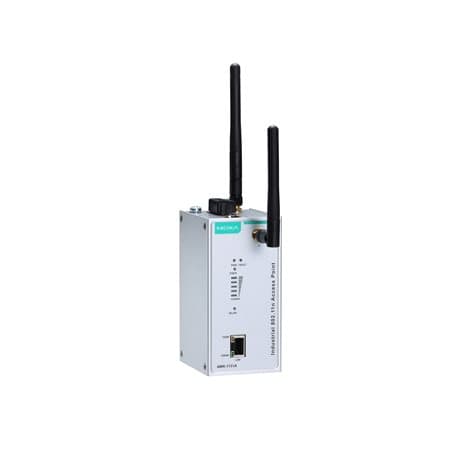

AWK-1131A-EU Moxa Data & Networking Devices

Product Details

• Transmitter Power for 802.11n (2.4 GHz)
  23±1.5 dBm @ MCS0/8 20 MHz; 18±1.5 dBm @ MCS7/15 20 MHz; 23±1.5 dBm @ MCS0/8 40 MHz; 17±1.5 dBm @ MCS7/15 40 MHz
• Antenna Connectors
  2 RP-SMA female
• Input Current
  0.56 A @ 12 VDC, 0.14 A @ 48 VDC
• Ambient Relative Humidity
  5 to 95% (non-condensing)
• Transmitter Power for 802.11a
  23±1.5 dBm @ 6 to 24 Mbps; 21±1.5 dBm @ 36 Mbps; 20±1.5 dBm @ 48 Mbps; 18±1.5 dBm @ 54 Mbps
• Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
  Typ. -93 dBm @ 1 Mbps; Typ. -93 dBm @ 2 Mbps; Typ. -93 dBm @ 5.5 Mbps; Typ. -88 dBm @ 11 Mbps
• Security
  HTTPS/SSL, RADIUS, SSH
• Buttons
  Reset button
• Weight
  307 g (0.68 lb)
• Operating Temperature
  0 to 60°C (32 to 140°F)
• Warranty Period
  5 years
• Wireless Security
  WEP encryption (64-bit and 128-bit); WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES); WPA/WPA2-Personal
• Transmitter Power for 802.11b
  26±1.5 dBm @ 1 Mbps; 26±1.5 dBm @ 2 Mbps; 26±1.5 dBm @ 5.5 Mbps; 25±1.5 dBm @ 11 Mbps
• 10/100/1000BaseT(X) Ports (RJ45 connector)
  1
• Antenna
  External, 2/2 dBi, Omni-directional
• IP Rating
  IP30
• Reverse Polarity Protection
  Supported
• EMC
  EN 55032/24
• Vibration
  IEC 60068-2-6
• WLAN Standards
  802.11a/b/g/n; 802.11i Wireless Security
Modulation Type
DSSS; OFDM; MIMO-OFDM
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.3ab for 1000BaseT(X); IEEE 802.1X for authentication
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -90 @ 6 Mbps; Typ. -88 @ 9 Mbps; Typ. -88 @ 12 Mbps; Typ. -85 @ 18 Mbps; Typ. -81 @ 24 Mbps; Typ. -78 @ 36 Mbps; Typ. -74 @ 48 Mbps; Typ. -72 @ 54 Mbps; Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is
WLAN Operation Mode
Access point, Client, Sniffer
Time Management
SNTP Client
Filter
ICMP, MAC address, IP protocol, Port-based
Housing
Metal
Dimensions
58 x 115 x 70 mm (2.29 x 4.53 x 2.76 in)
Input Voltage
12 to 48 VDC
Power Connector
1 removable 4-contact terminal block(s)
Power Consumption
6.96 W (max.)
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 3 V; IEC 61000-4-8 PFMF
Time
749,476 hrs
Frequency Band for EU (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. How
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
Typ. -69 dBm @ MCS7 20 MHz; Typ. -71 dBm @ MCS15 20 MHz; Typ. -63 dBm @ MCS7 40 MHz; Typ. -68 dBm @ MCS15 40 MHz; Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels i
LED Indicators
PWR, FAULT, STATE, SIGNAL, WLAN, LAN
Radio
EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, MIC, NCC, RCM, SRRC, WPC, KC, ANATEL
Transmitter Power for 802.11g
23±1.5 dBm @ 6 to 24 Mbps; 21±1.5 dBm @ 36 Mbps; 19±1.5 dBm @ 48 Mbps; 18±1.5 dBm @ 54 Mbps
Management
DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig
Console Port
RS-232, 8-pin RJ45
EMI
CISPR 32, FCC Part 15B Class A
Transmission Rate
802.11b: 1 to 11 Mbps; 802.11a/g: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
Typ. -70 dBm @ MCS7 20 MHz; Typ. -69 dBm @ MCS15 20 MHz; Typ. -67 dBm @ MCS7 40 MHz; Typ. -67 dBm @ MCS15 40 MHz
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Safety
EN 60950-1, UL 60950-1
Transmitter Power for 802.11n (5 GHz)
23±1.5 dBm @ MCS0/8 20 MHz; 18±1.5 dBm @ MCS7/15 20 MHz; 23±1.5 dBm @ MCS0/8 40 MHz; 17±1.5 dBm @ MCS7/15 40 MHz
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -88 dBm @ 6 Mbps; Typ. -86 dBm @ 9 Mbps; Typ. -85 dBm @ 12 Mbps; Typ. -85 dBm @ 18 Mbps; Typ. -85 dBm @ 24 Mbps; Typ. -82 dBm @ 36 Mbps; Typ. -78 dBm @ 48 Mbps; Typ. -74 dBm @ 54 Mbps
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
