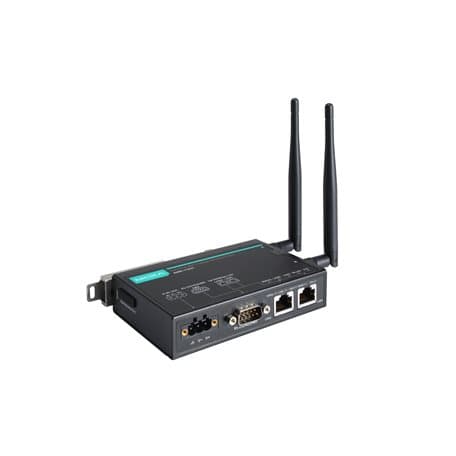

AWK-1137C-EU-T Moxa Data & Networking Devices

Product Details

• Transmitter Power for 802.11a
  23±1.5 dBm @ 6 to 24 Mbps; 21±1.5 dBm @ 36 Mbps; 20±1.5 dBm @ 48 Mbps; 18±1.5 dBm @ 54 Mbps
• WLAN Operation Mode
  Client, Client-Router, Slave, Sniffer
• Antenna Connectors
  2 RP-SMA female
• Operation Modes
  Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP
• LED Indicators
  SYS, LAN1, LAN2, WLAN, Serial
• Reverse Polarity Protection
  Supported
• Time
  1,125,942 hrs
• Wireless Security
  WEP encryption (64-bit and 128-bit); WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES); WPA/WPA2-Personal
• Transmitter Power for 802.11n (2.4 GHz)
  23±1.5 dBm @ MCS0/8 20 MHz; 17±1.5 dBm @ MCS7/15 20 MHz; 23±1.5 dBm @ MCS0/8 40 MHz; 17±1.5 dBm @ MCS7/15 40 MHz
• Security
  HTTPS/SSL, RADIUS, SSH
• RS-485-4w
  Tx+, Tx-, Rx+, Rx-, GND
• Dimensions
  77.1 x 115.5 x 26 mm (3.04 x 4.55 x 1.02 in)
• Ambient Relative Humidity
  5 to 95% (non-condensing)
• Modulation Type
  DSSS; OFDM; MIMO-OFDM
• Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
  Typ. -69 dBm @ MCS7 20 MHz; Typ. -70 dBm @ MCS15 20 MHz; Typ. -64 dBm @ MCS7 40 MHz; Typ. -66 dBm @ MCS15 40 MHz; Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in
• Routing
  Port forwarding, Static Route, NAT
• Flow Control
  None, RTS/CTS, XON/XOFF
• Housing
  Metal
• Storage Temperature (package included)
  -40 to 85°C (-40 to 185°F)
• Warranty Period
  5 years
Transmission Rate
802.11b: 1 to 11 Mbps; 802.11a/g: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps
10/100BaseT(X) Ports (RJ45 connector)
2
Data Bits
5, 6, 7, 8
Buttons
Reset button
Input Voltage
9 to 30 VDC
Safety
EN 60950-1, UL 60950-1
WLAN Standards
802.11a/b/g/n; 802.11i Wireless Security
Antenna
External, 2/2 dBi, Omni-directional
Filter
ICMP, MAC address, IP protocol, Port-based
Stop Bits
1, 1.5, 2
Installation
DIN-rail mounting, Wall mounting (with optional kit)
Radio
EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-1137C, ANATEL, MIC, NCC, SRRC, WPC, KC, RCM
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
Typ. -89 dBm @ 1 Mbps; Typ. -89 dBm @ 2 Mbps; Typ. -89 dBm @ 5.5 Mbps; Typ. -88 dBm @ 11 Mbps
Management
DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig
Parity
None, Even, Odd, Space, Mark
RS-485-2w
Data+, Data-, GND
Power Consumption
11.7 W (max.)
Road Vehicles
E mark E1
Transmitter Power for 802.11b
26±1.5 dBm @ 1 Mbps; 26±1.5 dBm @ 2 Mbps; 26±1.5 dBm @ 5.5 Mbps; 25±1.5 dBm @ 11 Mbps
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -90 @ 6 Mbps; Typ. -88 @ 9 Mbps; Typ. -87 @ 12 Mbps; Typ. -85 @ 18 Mbps; Typ. -81 @ 24 Mbps; Typ. -78 @ 36 Mbps; Typ. -74 @ 48 Mbps; Typ. -73 @ 54 Mbps; Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is
Connector
DB9 male
Serial Data Log
256 KB
Power Connector
1 removable 3-contact terminal block(s)
EMI
CISPR 22, FCC Part 15B Class A
Transmitter Power for 802.11g
23±1.5 dBm @ 6 to 24 Mbps; 22±1.5 dBm @ 36 Mbps; 20±1.5 dBm @ 48 Mbps; 19±1.5 dBm @ 54 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -88 dBm @ 6 Mbps; Typ. -88 dBm @ 9 Mbps; Typ. -88 dBm @ 12 Mbps; Typ. -87 dBm @ 18 Mbps; Typ. -84 dBm @ 24 Mbps; Typ. -81 dBm @ 36 Mbps; Typ. -77 dBm @ 48 Mbps; Typ. -75 dBm @ 54 Mbps
Serial Standards
RS-232, RS-422/485, RS-232/422/485
RS-422
Tx+, Tx-, Rx+, Rx-, GND
Operating Temperature
-40 to 75°C (-40 to 167°F)
Vibration
IEC 60068-2-6
Frequency Band for EU (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. How
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.1Q for VLAN Tagging
Baudrate
75 bps to 921.6 kbps
IP Rating
IP30
EMC
EN 61000-6-2/-6-4, EN 55032/24
Transmitter Power for 802.11n (5 GHz)
23±1.5 dBm @ MCS0/8 20 MHz; 18±1.5 dBm @ MCS7/15 20 MHz; 23±1.5 dBm @ MCS0/8 40 MHz; 18±1.5 dBm @ MCS7/15 40 MHz
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
Typ. -70 dBm @ MCS7 20 MHz; Typ. -70 dBm @ MCS15 20 MHz; Typ. -64 dBm @ MCS7 40 MHz; Typ. -65 dBm @ MCS15 40 MHz
Time Management
NTP Client, SNTP Client
RS-232
TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR
Weight
470 g (1.03 lb)
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
