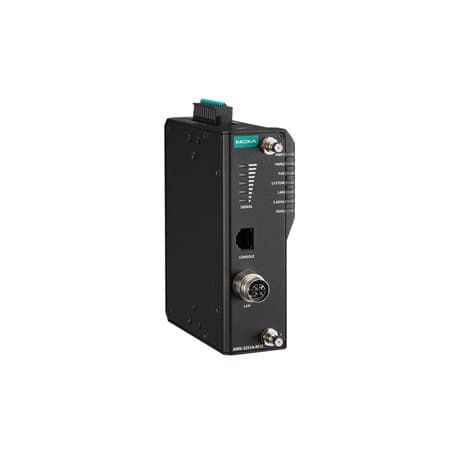

AWK-3251A-M12-RCC-UN Moxa Data & Networking Devices

Product Details

• Transmitter Power for 802.11b
  25.5±1.5 dBm @ 1 Mbps; 25.5±1.5 dBm @ 2 Mbps; 26±1.5 dBm @ 5.5 Mbps; 26±1.5 dBm @ 11 Mbps
• Transmitter Power for 802.11a
  22±1.5 dBm @ 6 Mbps; 22±1.5 dBm @ 9 Mbps; 22±1.5 dBm @ 12 Mbps; 20.5±1.5 dBm @ 18 Mbps; 20.5±1.5 dBm @ 24 Mbps; 20.5±1.5 dBm @ 36 Mbps; 20±1.5 dBm @ 48 Mbps; 20±1.5 dBm @ 54 Mbps
• Buttons
  Reset button
• Ambient Relative Humidity
  5 to 95% (non-condensing)
• Railway Fire Protection
  EN 45545-2
• Transmitter Power for 802.11n (2.4 GHz)
  24.5±1.5 dBm @ MCS0 20 MHz; 24.5±1.5 dBm @ MCS1 20 MHz; 24±1.5 dBm @ MCS2 20 MHz; 24±1.5 dBm @ MCS3 20 MHz; 23.5±1.5 dBm @ MCS4 20 MHz; 23.5±1.5 dBm @ MCS5 20 MHz; 22.5±1.5 dBm @ MCS6 20 MHz; 22±1.5 dBm @ MCS7 20 MHz; 24±1.5 dBm @ MCS8 20 MHz; 24.5±1.5 dB
• Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
  Typ. -89 dBm @ MCS0 20 MHz; Typ. -86 dBm @ MCS1 20 MHz; Typ. -84 dBm @ MCS2 20 MHz; Typ. -81 dBm @ MCS3 20 MHz; Typ. -77 dBm @ MCS4 20 MHz; Typ. -73 dBm @ MCS5 20 MHz; Typ. -72 dBm @ MCS6 20 MHz; Typ. -70 dBm @ MCS7 20 MHz; Typ. -91 dBm @ MCS8 20 MHz; Typ
• Alarm Contact Channels
  Relay output with current carrying capacity of 1 A @ 24 VDC
• Input Current
  12-48 VDC, 2.01-0.5 A
• Input Voltage
  12 to 48 VDC; Redundant dual inputs; 48 VDC Power-over-Ethernet
• Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)
  25±1.5 dBm @ MCS0 20 MHz; 25±1.5 dBm @ MCS1 20 MHz; 25±1.5 dBm @ MCS2 20 MHz; 25±1.5 dBm @ MCS3 20 MHz; 24±1.5 dBm @ MCS4 20 MHz; 23.5±1.5 dBm @ MCS5 20 MHz; 22.5±1.5 dBm @ MCS6 20 MHz; 22±1.5 dBm @ MCS7 20 MHz; 21.5±1.5 dBm @ MCS8 20 MHz; 25±1.5 dBm @ MC
• Standards
  IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.3ab for 1000BaseT(X); IEEE 802.3at for PoE; IEEE 802.1Q for VLAN Tagging; IEEE 802.1X for authentication
• Security
  HTTPS/SSL; RADIUS; SSH
• Power Connector
  1 removable 10-contact terminal block(s)
• Time
  838,684 hrs
• Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
  Typ. -88 dBm @ MCS0 20 MHz; Typ. -84 dBm @ MCS1 20 MHz; Typ. -83 dBm @ MCS2 20 MHz; Typ. -80 dBm @ MCS3 20 MHz; Typ. -76 dBm @ MCS4 20 MHz; Typ. -72 dBm @ MCS5 20 MHz; Typ. -70 dBm @ MCS6 20 MHz; Typ. -68 dBm @ MCS7 20 MHz; Typ. -89 dBm @ MCS8 20 MHz; Typ
• WLAN Operation Mode
  Access point; Client; Client-Router; Master; Slave; Sniffer; ACC
• Housing
  Metal
• Storage Temperature (package included)
  -40 to 85°C (-40 to 185°F)
• Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
  Typ. -88 @ 6 Mbps; Typ. -88 @ 9 Mbps; Typ. -85 @ 12 Mbps; Typ. -84 @ 18 Mbps; Typ. -81 @ 24 Mbps; Typ. -77 @ 36 Mbps; Typ. -74 @ 48 Mbps; Typ. -72 @ 54 Mbps
Receiver Sensitivity for 802.11ac (2.4 GHz, Dual Chain)
Typ. -90 dBm @ MCS0 20 MHz; Typ. -87 dBm @ MCS1 20 MHz; Typ. -85 dBm @ MCS2 20 MHz; Typ. -82 dBm @ MCS3 20 MHz; Typ. -79 dBm @ MCS4 20 MHz; Typ. -75 dBm @ MCS5 20 MHz; Typ. -73 dBm @ MCS6 20 MHz; Typ. -72 dBm @ MCS7 20 MHz; Typ. -68 dBm @ MCS8 20 MHz; Typ
Management
DHCP Server/Client; DNS; HTTP; IPv4; LLDP; SMTP; SNMPv1/v2c/v3; Syslog; TCP/IP; Telnet; UDP; VLAN; MXconfig
IP Rating
IP30
Operating Temperature
-25 to 60°C (-13 to 140°F)
WLAN Standards
2.4 GHz: 802.11b/g/n with 256 QAM support; 5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support;
Receiver Sensitivity for 802.11ac (5 GHz, Dual Chain)
Typ. -89 dBm @ MCS0 20 MHz; Typ. -86 dBm @ MCS1 20 MHz; Typ. -84 dBm @ MCS2 20 MHz; Typ. -81 dBm @ MCS3 20 MHz; Typ. -78 dBm @ MCS4 20 MHz; Typ. -74 dBm @ MCS5 20 MHz; Typ. -72 dBm @ MCS6 20 MHz; Typ. -71 dBm @ MCS7 20 MHz; Typ. -67 dBm @ MCS8 20 MHz; Typ
Time Management
SNTP Client
Weight
800 g (1.76 lb)
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV; IEC 61000-4-6 CS: 10 V/m; IEC 61000-4-8 PFMF: 30 A/m
Frequency Band for UN (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. How
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -90 dBm @ 6 Mbps; Typ. -89 dBm @ 9 Mbps; Typ. -88 dBm @ 12 Mbps; Typ. -86 dBm @ 18 Mbps; Typ. -82 dBm @ 24 Mbps; Typ. -79 dBm @ 36 Mbps; Typ. -75 dBm @ 48 Mbps; Typ. -73 dBm @ 54 Mbps
Antenna Connectors
QMA
Filter
ICMP; MAC address; IP protocol; Port-based
Power Consumption
24.12 W (max.)
Safety
IEC 60950-1; IEC 62368-1; UL 62368-1
Warranty Period
5 years
Transmission Rate
2.4 GHz:; 802.11b: 1 to 11 Mbps; 802.11g: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 400 Mbps; ; 5 GHz:; 802.11a: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 867 Mbps
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
Typ. -96 dBm @ 1 Mbps; Typ. -92 dBm @ 2 Mbps; Typ. -91 dBm @ 5.5 Mbps; Typ. -88 dBm @ 11 Mbps
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)
1; Supports IEEE 802.3at PoE
Dimensions
45 x 130 x 118 mm (1.77 x 5.12 x 4.65 in)
EMI
CISPR 32, FCC Part 15B Class A
Digital Inputs
2; Max. input current: 8 mA; +13 to +30 V for state 1; +3 to -30 V for state 0
Transmitter Power for 802.11n (5 GHz)
22±1.5 dBm @ MCS0 20 MHz; 22±1.5 dBm @ MCS1 20 MHz; 22±1.5 dBm @ MCS2 20 MHz; 20±1.5 dBm @ MCS3 20 MHz; 19.5±1.5 dBm @ MCS4 20 MHz; 19.5±1.5 dBm @ MCS5 20 MHz; 19.5±1.5 dBm @ MCS6 20 MHz; 19±1.5 dBm @ MCS7 20 MHz; 22±1.5 dBm @ MCS8 20 MHz; 22±1.5 dBm @ MC
Transmitter Power for 802.11g
26±1.5 dBm @ 6 Mbps; 26±1.5 dBm @ 9 Mbps; 26±1.5 dBm @ 12 Mbps; 25±1.5 dBm @ 18 Mbps; 25±1.5 dBm @ 24 Mbps; 24.5±1.5 dBm @ 36 Mbps; 23.5±1.5 dBm @ 48 Mbps; 23±1.5 dBm @ 54 Mbps
Console Port
RS-232; 8-pin RJ45
Installation
DIN-rail mounting; Wall mounting (with optional kit)
Railway
EN 50121-4; EN 50155
Transmitter Power for 802.11ac (5 GHz, Dual Chain)
21.5±1.5 dBm @ MCS0 20 MHz; 21.5±1.5 dBm @ MCS1 20 MHz; 21±1.5 dBm @ MCS2 20 MHz; 20±1.5 dBm @ MCS3 20 MHz; 19.5±1.5 dBm @ MCS4 20 MHz; 19.5±1.5 dBm @ MCS5 20 MHz; 19.5±1.5 dBm @ MCS6 20 MHz; 19±1.5 dBm @ MCS7 20 MHz; 19±1.5 dBm @ MCS8 20 MHz; 21±1.5 dBm
Wireless Security
WEP encryption (64-bit and 128-bit); WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES); WPA/WPA2/WPA3-Personal
LED Indicators
PWR1, PWR2, PoE, System, LAN, 2.4GHz, 5GHz, SIG
EMC
EN 55032/35
Radio
EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, TELEC, NCC, RCM, SRRC, IC
