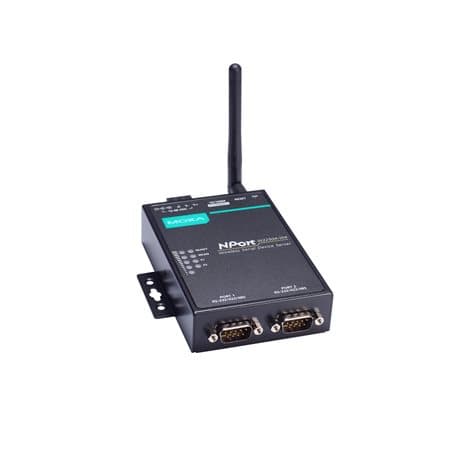

NPORT W2250A-W4-CN Moxa Data & Networking Devices

Product Details

• Security
  HTTPS/SSL; User Authentication Management: local database, RADIUS; Secure Protocols: HTTPS (TLSv1.3), SSH, SNMPv3; Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
• MIB
  Device Settings MIB; RFC1213, RFC1317
• Frequency Band for EU (20 MHz operating channels)
  2.412 to 2.472 GHz (13 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. How
• Wireless Security
  WEP encryption (64-bit and 128-bit); WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES); WPA/WPA2-Personal
• Flow Control
  None; RTS/CTS; XON/XOFF
• Dimensions (with ears, without antenna)
  100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
• Ambient Relative Humidity
  5 to 95% (non-condensing)
• Warranty Period
  5 years
• Virtual Machine
  VMWare ESXi (Windows 11/10); VMware Fusion (Windows on macOS 10.12 to 11.x); Parallels Desktop (Windows on macOS 10.12 to 11.x)
• Modulation Type
  DSSS; OFDM
• Authentication
  Local database; RADIUS
• Operation Modes
  Real COM mode; TCP Server mode; TCP Client mode; UDP mode; RFC2217 mode; Pair Connection mode; Ethernet Modem mode; Disabled
• Terminator for RS-485
  120 ohms
• Antenna Length
  108 mm (4.25 in)
• EMS
  IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m; IEC 61000-4-8 P
• Linux Real TTY Drivers
  Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
• WLAN Standards
  802.11a/b/g/n
• Transmitter Power for 802.11a
  15±1.5 dBm @ 6 Mbps; 14±1.5 dBm @ 54 Mbps
• WLAN Modes
  Infrastructure mode
• Security Protocols
  SNMPv3; SSHv2; HTTPS (TLS 1.3)
Storage Temperature (package included)
-40 to 75°C (-40 to 167°F)
EMI
CISPR 32, FCC Part 15B Class A
Management
DHCP Option 82; HTTP; IPv4; SMTP; SNMPv1/v2c/v3; Syslog; Telnet; Web Console
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -91 @ 6 Mbps; Typ. -74 @ 54 Mbps
Transmitter Power for 802.11b
16±1.5 dBm @ 1 Mbps; 16±1.5 dBm @ 11 Mbps
Standards
IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X)
Data Bits
5, 6, 7, 8
Parity
None, Even, Odd, Space, Mark
Input Voltage
12 to 48 VDC
Windows Real COM Drivers
Windows 11/10/8.1/8/7/Vista/XP/ME/98/95; Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT; Windows Embedded CE 5.0/6.0, Windows XP Embedded
Magnetic Isolation Protection
1.5 kV (built-in)
Transmitter Power for 802.11n (2.4 GHz)
16 dBm @ 1.5 Mbps (6.5 MHz); 12 dBm @ 1.5 Mbps (72.2 MHz)
Transmission Rate
802.11a/g: 54 Mbps; 802.11b: 11 Mbps; 802.11n: 6.5 to 150 Mbps
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
Android API
Android 3.1.x and later
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
Typ. -89 dBm @ 6.5 Mbps (20 MHz); Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -91 dBm @ 6 Mbps; Typ. -73 dBm @ 54 Mbps
Antenna Type
Omni-directional
Serial Standards
RS-232; RS-422; RS-485
Stop Bits
1, 1.5, 2
Frequency Band for CN (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. How
Baudrate
300 bps to 921.6 kbps
Dimensions (without ears or antenna)
77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
Time
1,187,539 hrs
Arm®-based Platform Support
Linux kernel 5.x/4.x
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
Typ. -92 dBm @ 1 Mbps; Typ. -84 dBm @ 11 Mbps
Transmitter Power for 802.11n (5 GHz)
15 dBm @ 1.5 Mbps (6.5 MHz); 12 dBm @ 1.5 Mbps (150 MHz)
Connector
RP-SMA (male)
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F); Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Alert Tools
RTC (real-time clock)
Configuration Options
Web Console (HTTP/HTTPS); Windows Utility
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
Typ. -89 dBm @ 6.5 Mbps (20 MHz); Typ. -71 dBm @ 72.2 Mbps (20 MHz); Typ. -85 dBm @ 13.5 Mbps (40 MHz); Typ. -67 dBm @ 150 Mbps (40 MHz)
Frequency Band for US (20 MHz operating channels)
2.412 to 2.462 GHz (11 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. How
Encryption
AES-128; AES-256; HMAC; RSA-1024; SHA-1; SHA-256; SHA-384
No. of Ports
2
Housing
Metal
Automatic Reboot Trigger
Built-in WDT
Fixed TTY Drivers
macOS Versions: 10.12 to 10.15, 11.x; SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Time Management
NTP Client; SNTP Client
Transmission Distance
Up to 100 meters (in open areas)
Transmitter Power for 802.11g
16±1.5 dBm @ 6 Mbps; 14±1.5 dBm @ 54 Mbps
Frequency Band for JP (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. How
10/100BaseT(X) Ports (RJ45 connector)
1
Hardware-based Security
Secure Boot
Surge
1 kV
Weight
191 g (0.42 lb)
Radio Frequency
CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301489-1/-17), MIC, KC, RCM, WPC
Installation
Desktop; DIN-rail mounting (with optional kit); Wall mounting
Input Current
455 mA @ 12 VDC
Safety
UL 62368-1; IEC 62368-1
EMC
EN 55032/35
