NPORT IA-5150 Moxa Data & Networking Devices

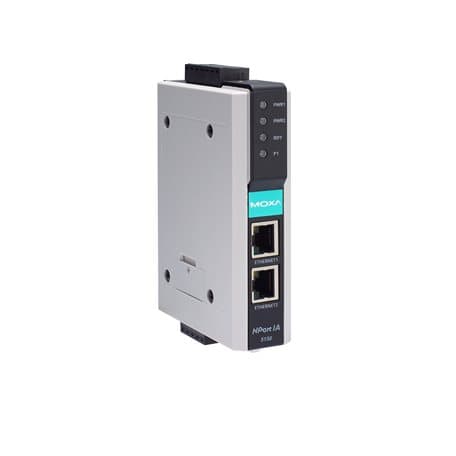

Moxa NPORT IA-5150 1-port RS-232/422/485 device server with 2 10/100BaseT(X) ports (RJ45 connectors, single IP), 0 to 55°C operating temperature
Moxa

Part#:NPORT IA-5150

Manufacturer:Moxa

Product Lifecycle:Active

Get a quick Quote!

1-port RS-232/422/485 device server with 2 10/100BaseT(X) ports (RJ45 connectors, single IP), 0 to 55°C operating temperature

Check out the NPORT IA-5150 Moxa price in the box on the right side or send a quick quote.

Product Details

  • Configuration Options
    Web Console (HTTP); Windows Utility; Telnet Console; Serial Console
  • No. of Ports
    1
  • Stop Bits
    1, 1.5, 2
  • RS-422
    Tx+, Tx-, Rx+, Rx-, GND
  • Installation
    DIN-rail mounting
  • EMS
    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF; IEC 61000-4-11
  • Magnetic Isolation Protection
    1.5 kV (built-in)
  • Time Management
    SNTP
  • Power Connector
    Terminal block
  • Safety
    IEC 60950-1; EN 60950-1; EN 62368-1; UL 508
  • Vibration
    IEC 60068-2-6; IEC 60068-2-64
  • 10/100BaseT(X) Ports (RJ45 connector)
    2 (1 IP, Ethernet cascade, NPort IA-5150/5150I/5250/5250I)
  • Connector
    DB9 male for RS-232 and terminal block for RS-422/485
  • Terminator for RS-485
    120 ohms
  • RS-485-2w
    Data+, Data-, GND
  • IP Rating
    IP30
  • Shock
    IEC 60068-2-27
  • Linux Real TTY Drivers
    Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x;
  • Serial Standards
    RS-232; RS-422; RS-485
  • Input Voltage
    12 to 48 VDC
  • Storage Temperature (package included)
    -40 to 85°C (-40 to 167°F)
  • Management
    DHCP Client; IPv4; SMTP; SNMPv1; Telnet; ARP; BOOTP; DNS; HTTP; TCP/IP; UDP; ICMP; Rtelnet
  • Baudrate
    Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
  • RS-485-4w
    Tx+, Tx-, Rx+, Rx-, GND
  • Arm®-based Platform Support
    Linux Kernel 5.x / 4.x;
  • Hazardous Locations
    ATEX; Class I Division 2; IECEx
  • Authentication
    Local database (password only)
  • Parity
    None, Even, Odd, Space, Mark
  • No. of Power Inputs
    2
  • Weight
    360 g (0.79 lb)
  • Virtual Machine
    VMWare ESXi (Windows 11 / 10) ; VMware Fusion (Windows on macOS 10.12 ~ 11.x); Parallels Desktop (Windows on macOS 10.12 ~ 11.x)
  • Warranty Period
    5 years
  • Fixed TTY Drivers
    macOS versions: 10.12 to 10.15, 11.x; SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Pull High/Low Resistor for RS-485
    1 kilo-ohm, 150 kilo-ohms
  • RS-232
    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Dimensions
    29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
  • Ambient Relative Humidity
    5 to 95% (non-condensing)
  • Green Product
    RoHS, CRoHS, WEEE
  • Windows Real COM Drivers
    Windows 11/10/8.1/8/7/Vista/XP/ME/98/95; Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT; Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Flow Control
    RTS/CTS (RS-232 only); DTR/DSR (RS-232 only); XON/XOFF
  • MIB
    RFC1213, RFC1317
  • Input Current
    435 mA @ 12 VDC
  • Operating Temperature
    0 to 60°C (32 to 140°F)
  • Standards
    Telcordia (Bellcore) Standard TR/SR
  • Android API
    Android 3.1.x and later
  • Data Bits
    5, 6, 7, 8
  • Contact Current Rating
    Resistive load: 1 A @ 30 VDC
  • Freefall
    IEC 60068-2-32
  • RS-485 Data Direction Control
    ADDC (automatic data direction control)
  • Housing
    Plastic
  • Maritime
    DNV
  • EMC
    EN 55032/35
  • EMI
    CISPR 32, FCC Part 15B Class A
  • Time
    1,349,710 hrs
