NPORT 5230 Moxa Data & Networking Devices
Part#:NPORT 5230
Manufacturer:Moxa
Product Lifecycle:Active
In-stock parts: 1
Jan 15, 2026

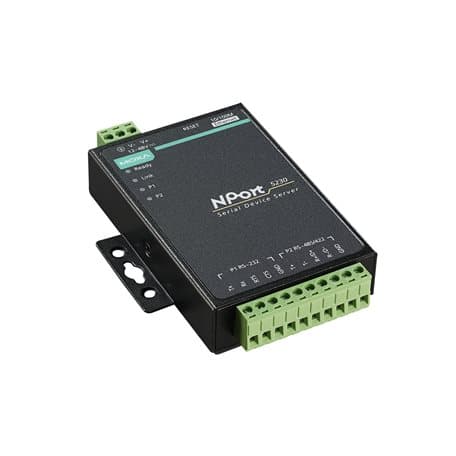

2-port device server with 1 RS-232 port and 1 RS-422/485 port, 0 to 55°C operating temperature
Check out the NPORT 5230 Moxa price in the box on the right side or send a quick quote.
Product Details
- MIB RFC1213, RFC1317
- Flow Control RTS/CTS (RS-232 only); DTR/DSR (RS-232 only); XON/XOFF
- 10/100BaseT(X) Ports (RJ45 connector) 1
- Authentication Local database (password only)
- Fixed TTY Drivers macOS versions: 10.12 to 10.15, 11.x; SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Android API Android 3.1.x and later
- No. of Ports 2
- Input Voltage 12 to 48 VDC
- Dimensions (without ears) 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
- Warranty Period 5 years
- Management DHCP Client; IPv4; SNTP; SMTP; SNMPv1; DNS; HTTP; ARP; BOOTP; UDP; TCP/IP; Telnet; ICMP
- Connector Terminal block
- RS-485-2w Data+, Data-, GND
- EMC EN 55032/35
- Windows Real COM Drivers Windows 11/10/8.1/8/7/Vista/XP/ME/98/95; Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT; Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Serial Standards RS-232; RS-422; RS-485; Note: The NPort 5230 supports RS-232 on one port, and RS-422/485 on the other.
- Pull High/Low Resistor for RS-485 1 kilo-ohms (fixed value)
- Alert Tools Built-in buzzer and RTC (real-time clock)
- Installation Desktop; DIN-rail mounting (with optional kit); Wall mounting
- Green Product RoHS, CRoHS, WEEE
- Virtual Machine VMWare ESXi (Windows 11/10) ; VMware Fusion (Windows on macOS 10.12 to 11.x); Parallels Desktop (Windows on macOS 10.12 to 11.x)
- Baudrate Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
- RS-422 Tx+, Tx-, Rx+, Rx-, GND
- No. of Power Inputs 1
- EMI CISPR 32, FCC Part 15B Class A
- Maritime DNV
- Arm®-based Platform Support Linux Kernel 5.x/4.x;
- Data Bits 5, 6, 7, 8
- RS-232 TxD, RxD, RTS, CTS, GND
- Dimensions (with ears) 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)
- Safety UL 60950-1
- Standards Telcordia (Bellcore) Standard TR/SR
- Linux Real TTY Drivers Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x;
- Configuration Options Windows Utility; Serial Console; Telnet Console; Web Console (HTTP)
- Operation Modes Disabled; Ethernet Modem; Pair Connection; Real COM; Reverse Telnet; TCP Client; TCP Server; UDP
- Parity None, Even, Odd, Space, Mark
- RS-485 Data Direction Control ADDC (automatic data direction control)
- Automatic Reboot Trigger Built-in WDT
- Storage Temperature (package included) -40 to 75°C (-40 to 167°F)
- Operating Temperature 0 to 55°C (32 to 131°F)
- Time 377,937 hrs
- Magnetic Isolation Protection 1.5 kV (built-in)
- Stop Bits 1, 1.5, 2
- Input Current 325 mA @ 12 VDC
- Weight 360 g (0.79 lb)
- RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
- Housing Metal
- Power Connector 1 removable 3-contact terminal block(s)
- Ambient Relative Humidity 5 to 95% (non-condensing)
- EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 1 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m; IEC 61000-4-8 PFMF; IEC 610
