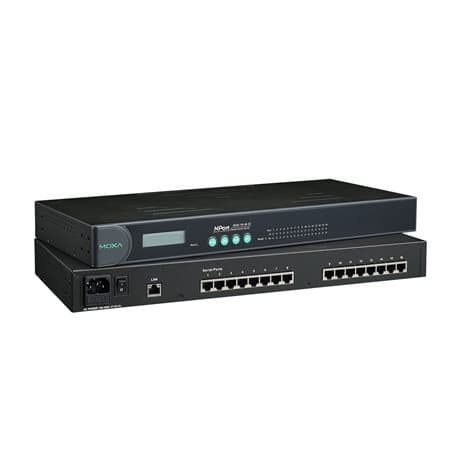

NPORT 5650-16-S-SC Moxa Data & Networking Devices

Product Details

• Windows Real COM Drivers
  Windows 11/10/8.1/8/7/Vista/XP/ME/98/95; Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003; Windows Embedded CE 6.0/5.0, Windows XP Embedded
• Android API
  Android 3.1.x and later
• Stop Bits
  1, 1.5, 2
• Interactive Interface
  LCD panel display; Push buttons for configuration
• Management
  ARP; BOOTP; DHCP Client; DNS; HTTP; HTTPS; ICMP; IPv4; LLDP; RFC2217; Rtelnet; PPP; SLIP; SMTP; SNMPv1/v2c; TCP/IP; Telnet; UDP
• Security Protocols
  HTTPS (TLS 1.2); SNMPv3
• RS-232
  TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Automatic Reboot Trigger
  Built-in WDT
• Magnetic Isolation Protection
  1.5 kV (built-in)
• Baudrate
  Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
• No. of Ports
  16
• Linux Real TTY Drivers
  Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
• Connector
  8-pin RJ45
• RS-422
  Tx+, Tx-, Rx+, Rx-, GND
• Dimensions (without ears)
  440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
• Safety
  UL 62368-1
• Parity
  None, Even, Odd, Space, Mark
• Input Voltage
  100 to 240 VAC, 47 to 63 Hz
• Fixed TTY Drivers
  macOS Versions: 11.x, 10.12 to 10.15;
• Operation Modes
  Disabled; Ethernet Modem; Pair Connection; Real COM; Reverse Telnet; RFC2217; TCP Client; TCP Server; UDP
Encryption
HTTPS; AES-128; RSA-1024; SHA-1; SHA-256
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
Input Current
164 mA @ 100 VAC
Weight
2,500 g (5.51 lb)
Dimensions (with ears)
480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
EMC
EN 55032/35
EMI
CISPR 32, FCC Part 15B Class A
Arm®-based Platform Support
Linux Kernel 5.x/4.x;
Time Management
SNTP
Serial Standards
RS-232; RS-422; RS-485
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
Ambient Relative Humidity
5 to 95% (non-condensing)
Time
517,019 hrs
Storage Temperature (package included)
-20 to 70°C (-4 to 158°F)
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m; IEC 61000-4
Standards
MIL-HDBK-217F
10/100BaseT(X) Ports (RJ45 connector)
1
Virtual Machine
VMWare ESXi (Windows 11/10) ; VMware Fusion (Windows on macOS 10.12 to 11.x); Parallels Desktop (Windows on macOS 10.12 to 11.x)
Flow Control
None; RTS/CTS (RS-232 only); DTR/DSR (RS-232 only); XON/XOFF
RS-485-2w
Data+, Data-, GND
Operating Temperature
0 to 60°C (32 to 140°F)
Warranty Period
5 years
Configuration Options
Telnet Console; Web Console (HTTP/HTTPS); Windows Utility
Data Bits
5, 6, 7, 8
Terminator for RS-485
120 ohms
Housing
Metal
Medical
EN 55011: 2007+A2: 2007 Class A (Group 1) compliant; EN 60601-1-2: 2007 compliant
Filter
IGMP v1/v2c
Authentication
Local database
RS-485 Data Direction Control
Automatic Data Direction Control (ADDC)
Installation
19-inch rack mounting
