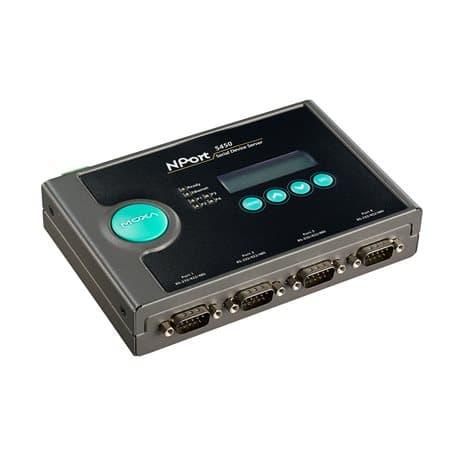

NPORT 5450 Moxa Data & Networking Devices

Product Details

• Arm®-based Platform Support
  Linux Kernel 5.x/4.x;
• No. of Ports
  4
• RS-485-4w
  Tx+, Tx-, Rx+, Rx-, GND
• Housing
  Metal
• EMI
  CISPR 32, FCC Part 15B Class A
• Linux Real TTY Drivers
  Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
• Virtual Machine
  VMWare ESXi (Windows 11 / 10) ; VMware Fusion (Windows on macOS 10.12 to 11.x); Parallels Desktop (Windows on macOS 10.12 to 11.x)
• Operation Modes
  Real COM; TCP Server; TCP Client; UDP; Ethernet Modem; Pair Connection; Reverse Telnet; Disabled
• Parity
  None, Even, Odd, Space, Mark
• Weight
  740 g (1.63 lb)
• Dimensions (without ears)
  158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)
• Time
  773,682 hrs
• Android API
  Android 3.1.x and later
• RS-422
  Tx+, Tx-, Rx+, Rx-, GND
• Terminator for RS-485
  120 ohms
• Dimensions (with ears)
  181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in)
• Safety
  UL 62368-1
• Windows Real COM Drivers
  Windows 11/10/8.1/8/7/Vista/XP/ME/98/95; Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT; Windows Embedded CE 5.0/6.0, Windows XP Embedded
• Serial Standards
  RS-232; RS-422; RS-485
• RS-485 Data Direction Control
  ADDC (automatic data direction control)
Input Voltage
12 to 48 VDC, 24 VDC for DNV
Operating Temperature
0 to 55°C (32 to 131°F)
Medical
EN 60601-1-2 Class B, EN 55011
Magnetic Isolation Protection
1.5 kV (built-in)
Encryption
HTTPS; AES-128; RSA-1024; SHA-1; SHA-256
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Alert Tools
Built-in buzzer and RTC (real-time clock)
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m; IEC 61000-4-8
10/100BaseT(X) Ports (RJ45 connector)
1
Authentication
Local database
Stop Bits
1, 1.5, 2
Automatic Reboot Trigger
Built-in WDT
Standards
Telcordia (Bellcore) Standard TR/SR
Management
ARP; BOOTP; DHCP Client; DNS; HTTP; HTTPS; ICMP; IPv4; LLDP; Rtelnet; SMTP; SNMPv1/v2c; TCP/IP; Telnet; UDP
Connector
DB9 male
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
No. of Power Inputs
2
Storage Temperature (package included)
-40 to 75°C (-40 to 167°F)
Filter
IGMP v1/v2
Security Protocols
HTTPS (TLS 1.2); SNMPv3
Data Bits
5, 6, 7, 8
Input Current
365 mA @ 12 VDC
Installation
Desktop; DIN-rail mounting (with optional kit); Wall mounting
Maritime
DNV
Fixed TTY Drivers
macOS Versions: 10.12 to 10.15, 11.x; ; SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Time Management
SNTP
RS-485-2w
Data+, Data-, GND
Power Connector
1 removable 3-contact terminal block(s); Power input jack
Ambient Relative Humidity
5 to 95% (non-condensing)
Warranty Period
5 years
Configuration Options
Telnet Console; Windows Utility; Web Console (HTTP/HTTPS)
Baudrate
Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Flow Control
RTS/CTS (RS-232 only); DTR/DSR (RS-232 only)
Interactive Interface
LCD panel display; Push buttons for configuration
EMC
EN 55032/35
