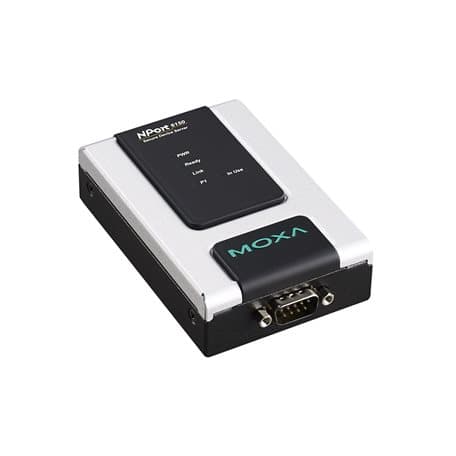

NPORT 6150-T Moxa Data & Networking Devices
Part#:NPORT 6150-T
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!
1-port RS-232/422/485 secure device server, -40 to 75°C operating temperature
Check out the NPORT 6150-T Moxa price in the box on the right side or send a quick quote.
Product Details
- Arm®-based Platform Support Linux Kernel 5.x/4.x
- Unicast Routing RIPV1/V2; Static Route
- Stop Bits 1, 1.5, 2
- RS-485-2w Data+, Data-, GND
- Weight 190 g (0.42 lb)
- Freefall IEC 60068-2-34
- Management ARP; BOOTP; DHCP Client; DNS; HTTP; ICMP; IPv4/IPv6; LLDP; PPPOE; SMTP; SNMPv1/v2c/v3; SNTP; TCP/IP; Telnet; UDP
- No. of Ports 1
- Flow Control RTS/CTS; DTR/DSR; XON/XOFF
- Alert Tools Built-in buzzer and RTC (real-time clock)
- EMI CISPR 32, FCC Part 15B Class A
- Safety UL 60950-1; UL 62368-1
- 10/100BaseT(X) Ports (RJ45 connector) 1
- Time Management SNTP Client
- Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
- RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
- EMC EN 55032/35
- Virtual Machine VMWare ESXi (Windows 11/10) ; VMware Fusion (Windows on macOS 10.12 to 11.x); Parallels Desktop (Windows on macOS 10.12 to 11.x)
- Authentication Local database; RADIUS; TACACS+
- Terminator for RS-485 120 ohms
- Housing Metal
- EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV; IEC 61000-4-6 CS: 3 V; IEC 61000-4-8 PFM
- Windows Real COM Drivers Windows 11/10/8.1/8/7/Vista/XP/ME/98/95; Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003; Windows Embedded CE 6.0/5.0, Windows XP Embedded
- Encryption HTTPS; AES-128; AES-256; HMAC; RSA-1024; SHA-1; SHA-256; SHA-384
- Parity None, Even, Odd, Space, Mark
- Dimensions (without ears) 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in)
- Standards Telcordia (Bellcore) Standard TR/SR
- Android API Android 3.1.x and later
- Connector DB9 male
- RS-485 Data Direction Control Automatic Data Direction Control (ADDC)
- Input Current 285 mA @ 12 to 48 VDC
- Storage Temperature (package included) -40 to 75°C (-40 to 167°F)
- Traffic Control NEMA TS2
- Magnetic Isolation Protection 1.5 kV (built-in)
- Serial Standards RS-232; RS-422; RS-485
- RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Dimensions (with ears) 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in)
- Vibration IEC 60068-2-6
- Time 1,934,102 hrs
- Fixed TTY Drivers macOS Versions: 11.x, 10.12 to 10.15 ; SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- MIB MIB-II
- Data Bits 5, 6, 7, 8
- Automatic Reboot Trigger Built-in WDT
- Operating Temperature -40 to 75°C (-40 to 167°F)
- Warranty Period 5 years
- Configuration Options Web Console (HTTP/HTTPS); Windows Utility; Device Search Utility (DSU); MCC Tool; Serial Console; Telnet/SSH Console
- Secure Operation Modes Reverse SSH; Secure Pair Connection; Secure Real COM; Secure TCP Client; Secure TCP Server; SSH
- Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
- Input Voltage 12 to 48 VDC
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Linux Real TTY Drivers Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
- Security Protocols HTTPS (TLS 1.2); SNMPv3; SSHv2
- Standard Operation Modes Disabled; Ethernet Modem; Pair Connection; PPP; Printer; Real COM; Reverse Telnet; RFC2217; TCP Client; TCP Server; Terminal; UDP
- RS-422 Tx+, Tx-, Rx+, Rx-, GND
- Installation Desktop; DIN-rail mounting (with optional kit); Wall mounting
- Green Product RoHS, CRoHS, WEEE
