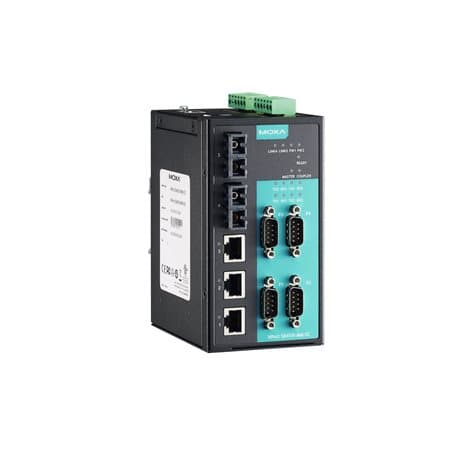

NPORT S8455I-MM-SC Moxa Data & Networking Devices
Part#:NPORT S8455I-MM-SC
Manufacturer:Moxa
Product Lifecycle:Active
Get a quick Quote!
4 RS-232/422/485 ports, 3 10/100BaseT(X) ports, 2 100M multi-mode fiber ports with SC connector, 15 KV ESD, 12 to 48 VDC, 0 to 60°C operating temperature
Check out the NPORT S8455I-MM-SC Moxa price in the box on the right side or send a quick quote.
Product Details
- Max. No. of VLANs 64
- VLAN ID Range VID 1 to 4094
- Security HTTPS, SSL, SSH
- Parity None, Even, Odd, Space, Mark
- RS-422 Tx+, Tx-, Rx+, Rx-, GND
- Installation DIN-rail mounting, Wall mounting (with optional kit)
- Dimensions 73.1 x 134 x 125 mm (2.88 x 5.27 x 4.92 in)
- Environmental Testing IEC 60068-2-1; IEC 60068-2-3
- Management BOOTP, Device Search Utility (DSU), DHCP Client, DHCP Option 82, HTTP, IPv4, LLDP, Port Mirror, RMON, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, Web Console
- MIB Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
- Isolation 2 kV
- Ethernet Interface Coupler, Master, Reserved, Turbo Ring
- Storage Temperature -40 to 75°C (-40 to 167°F)
- Shock IEC 60068-2-27
- 10/100BaseT(X) Ports (RJ45 connector) 3
- Android API Android 3.1.x and later
- Stop Bits 1, 1.5, 2
- RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
- Housing Metal
- Digital Inputs +13 to +30 V for state 1; -30 to +1 V for state 0; Max. input current: 8 mA
- Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
- Baudrate 50 bps to 921.6 kbps
- RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input Current 935 mA @ 12 VDC
- EMC EN 55032/24
- Priority Queues 4
- Time Management SNTP
- Terminator for RS-485 120 ohms
- Operating Temperature 0 to 60°C (32 to 140°F)
- Ambient Relative Humidity 5 to 95% (non-condensing)
- Time 200,951 hrs
- Magnetic Isolation Protection 1.5 kV (built-in)
- Configuration Options Web Console (HTTP/HTTPS), Windows Utility, Serial Console, Telnet Console
- Authentication Local Account Accessibility, RADIUS
- Operation Modes Disabled, Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode
- Serial Standards RS-232/422/485
- No. of Power Inputs 2
- Hazardous Locations Class I Division 2
- EMI CISPR 32, FCC Part 15B Class A
- Digital Input Channels 2
- Data Bits 5, 6, 7, 8
- Power Connector 2 removable 6-contact terminal block(s)
- Warranty Period 5 years
- Filter 802.1Q, GVRP, IGMP v1/v2
- Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Redundancy Protocols RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2
- Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
- RS-485-2w Data+, Data-, GND
- Safety EN 60950-1, IEC 60950-1, UL 508, UL 60950-1
- 100BaseFX Ports (multi-mode SC connector) 2
- Alarm Contact Channels 2, Resistive load: 1 A @ 24 VDC
- Connector DB9 male
- Flow Control None, RTS/CTS, XON/XOFF
- Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
- Weight 578 g (1.27 lb)
- Vibration IEC 60068-2-6
- IGMP Groups 256
- Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
- Standards IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1p for Class of Service; IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1X for authentication; IEEE 802.3 for 10BaseT; IEEE 802.3ad for Port Trunk with LACP; IEEE
- No. of Ports 4
- RS-485 Data Direction Control ADDC® (automatic data direction control)
- Input Voltage 12 to 48 VDC
- EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.25 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m; IEC 61000
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents NPORT S8455I-MM-SC Specs
