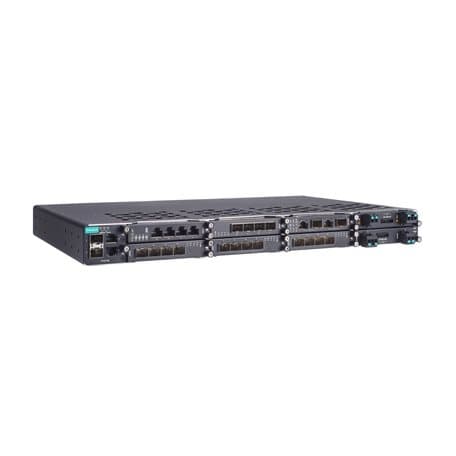

PT-G7828 Moxa Networking Switches

Product Details

• Standards
  IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) and 100BaseFX; IEEE 802.3ab for 1000BaseT(X); IEEE 802.3z for 1000BaseX; IEEE 802.1D-2004 for Spanning Tree Protocol; IEEE 802.1w for Rapid Spanning Tree Protocol; IEEE 802.1p for Class of Service; IEEE
• Jumbo Frame Size
  9.6 KB
• Management
  IPv4/IPv6; SNMP Inform; SNMPv1/v2c/v3; DHCP Server/Client; DHCP Option 66/67/82; BOOTP; TFTP; LLDP; RARP; HTTP; HTTPS; Telnet; Flow control; Back Pressure Flow Control; Port Mirror; Fiber check; Dying Gasp; SMTP; Syslog
• Security
  RADIUS; TACACS+; SSH; Port Lock; Broadcast storm protection; MAB authentication; Sticky MAC; Access control list
• Console Port
  RS-232 (RJ45)
• EMS
  IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV; IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
• Safety
  UL 62368-1; IEC 62368-1
• Redundancy Protocols
  Link Aggregation; MSTP; RSTP; STP; Turbo Chain; Turbo Ring v1/v2; V-ON; MRP
• Industrial Protocols
  EtherNet/IP; Modbus TCP
• Packet Buffer Size
  12 Mbits
• Railway
  EN 50121-4
• Operating Temperature
  -40 to 85°C (-40 to 185°F)
• 10/100/1000BaseT(X) Ports (RJ45 connector)
  2
• Multicast Routing
  DVMRP; PIM-DM
• Operating Voltage
  With PWR-HV-P48 installed:; 88 to 300 VDC, 90 to 264 VAC for the switch system; 46 to 57 VDC for PoE systems; ; With PWR-LV-P48 installed:; 18 to 72 VDC for the switch system; 46 to 57 VDC for PoE systems; ; With PWR-HV-NP installed:; 88 to 300 VDC, 90 to
• Routing Redundancy
  VRRP
• MIB
  MIB-II; Ethernet-like MIB; Bridge MIB; P-BRIDGE MIB; Q-BRIDGE MIB; RSTP MIB; RMON MIB Groups 1, 2, 3, 9
• Max. No. of VLANs
  256
• Priority Queues
  8
• IP Rating
  IP30
100/1000BaseSFP Ports
2
MAC Table Size
16 K
EMC
EN 55032/35
Slot Combination
See the LM-7000H datasheet for Gigabit Ethernet module and PoE+ module information
Time Management
NTP Server/Client; SNTP; IEEE 1588v2 PTP (hardware-based)
Input Voltage
With PWR-HV-P48 installed:; 110/220 VDC/VAC for the switch system; 48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices); ; With PWR-LV-P48 installed:; 24/48 VDC for the switch system; 48 VDC for PoE system (53 to 57 VDC is recommended for
Input Current
With PWR-HV-P48 installed:; PWR input current (switch system); Max. 0.11 A @ 110 VDC; Max. 0.06 A @ 220 VDC; Max. 0.29 A @ 110 VAC; Max. 0.18 A @ 220 VAC; EPS input current (PoE system); Max. 0.53 A @ 48 VDC; (excluding power consumption of PoE devices);
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Installation
19-inch rack mounting
Warranty Period
5 years
Power Substation
IEC 61850 QoS; GOOSE Check
Dimensions
443 x 44 x 280 mm (17.44 x 1.73 x 11.02 in)
Time
449,542 hrs
Filter
802.1Q; GMRP; GVRP; IGMP v1/v2/v3; QinQ VLAN
Unicast Routing
Static Route; RIPV1/V2; OSPF
IGMP Groups
4096
Weight
3080 g (6.8 lb)
EMI
CISPR 32, FCC Part 15B Class A
Module
6
VLAN ID Range
VID 1 to 4094
Storage Port
USB Type A
Ambient Relative Humidity
5 to 95% (non-condensing)

Related documents PT-G7828 Specs
