07509ET3QRB444TF2-W2 WEG AC Motors
Part#:07509ET3QRB444TF2-W2
Manufacturer:WEG
Alt. Part#:7909322315607
Product Lifecycle:Active
Get a quick Quote!

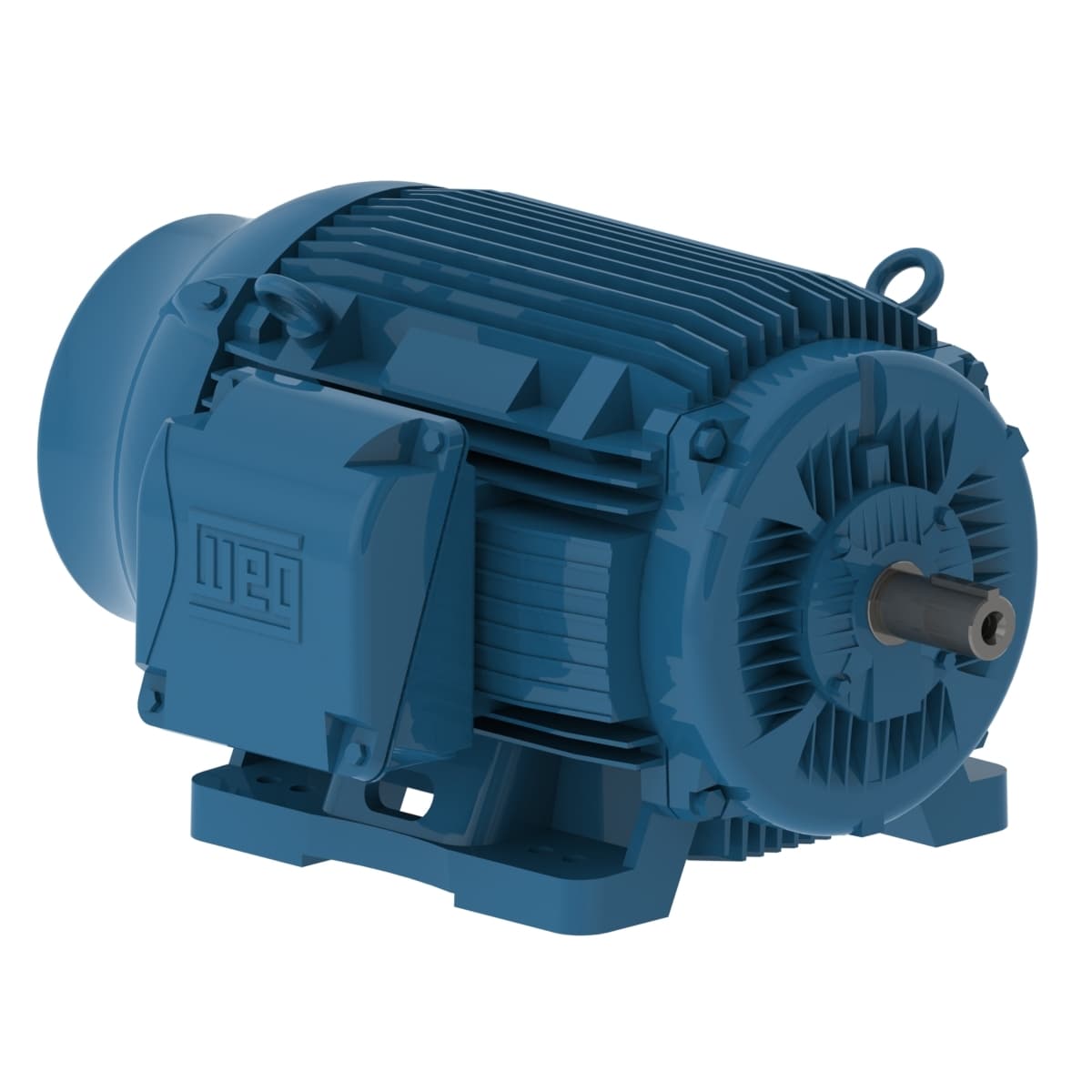

W22 NEMA Premium Efficiency 75 HP 8P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 07509ET3QRB444TF2-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed890 rpm
- Number of Poles8 Pole
- Voltage460 V
- Flange TypeWithout
- Service factor 1.25
- Altitude 1000 m.a.s.l.
- Rated current 93.4 A
- Output rating 75 HP
- Rated voltage 460 V
- Breakdown torque 200 %
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Right position
- Frequency 60 Hz
- LRC 6.4x(Code H)
- Design B
- Noise level² 63.0 dB(A)
- Moment of inertia (J) 73.6 sq.ft.lb
- Degree of Protection IP55
- L. R. Amperes 598 A
- Flange Without
- No load current 40.0 A
- Duty Cycle Cont.(S1)
- Mounting F-2
- Frame 444/5T
- Temperature rise 80 K
- Number of poles 8
- Slip 1.11 %
- Rated torque 443 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated speed 890 rpm
- Locked rotor time 32s (cold) 18s (hot)
- Ambient temperature -20°C to +40°C
- Voltage 460 V
- Output 75 HP (55 kW)
- Locked rotor torque 170 %
- Approx. weight³ 1444 lb
- Enclosure IC411 - TEFC
- Number of Poles 8
- Insulation Class F
- Synchronous speed 900 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 07509ET3QRB444TF2-W2 Specs
1-year warranty
