07509XT3E444T WEG AC Motors
Part#:07509XT3E444T
Manufacturer:WEG
Alt. Part#:7892304608166
Product Lifecycle:Active
Get a quick Quote!

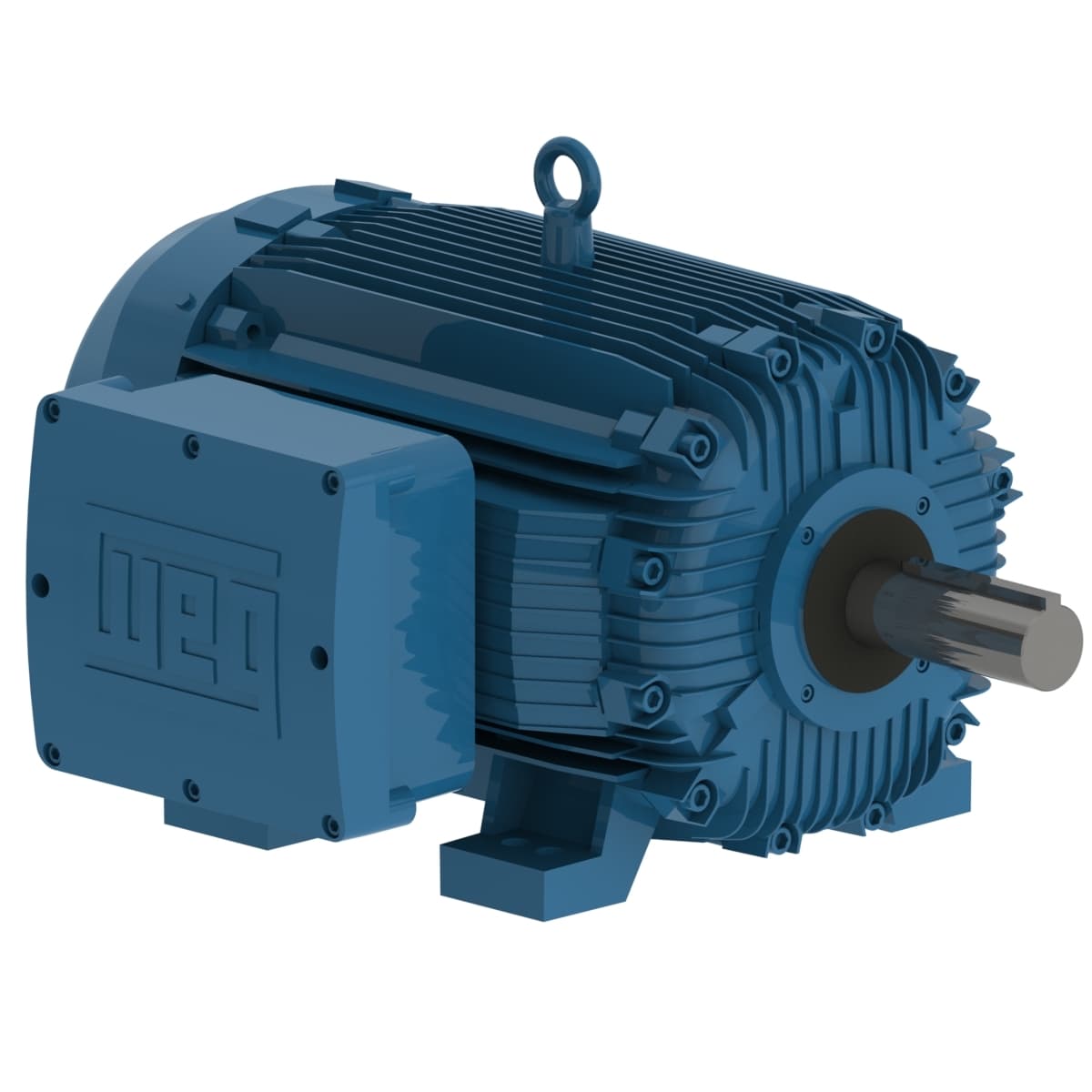

W21 Explosion-proof Motor NEMA Premium Efficiency 75 HP 8P 444/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 07509XT3E444T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed890 rpm
- Number of Poles8 Pole
- Voltage230/460 V
- Flange TypeWithout
- No load current 76.0/38.0 A
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Slip 1.11 %
- Design B
- Noise level² 64.0 dB(A)
- Insulation Class F
- Frame 444/5T
- Temperature rise 80 K
- Service factor 1.15
- Number of poles 8
- Output 75 HP (55 kW)
- Locked rotor time 32s (cold) 18s (hot)
- Enclosure IC411 - TEFC
- Output rating 75 HP
- Rated speed 890 rpm
- Starting Method Direct On Line
- Voltage 230/460//380 V
- Terminal box¹ Left position
- L. R. Amperes 1125/562 A
- Rated torque 443 ft.lb
- Degree of Protection IP55
- Rated current 184/92.2 A
- Locked rotor torque 170 %
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Moment of inertia (J) 73.6 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Flange Without
- Number of Poles 8
- Breakdown torque 210 %
- Approx. weight³ 1954 lb
- Synchronous speed 900 rpm
- Rated voltage 230/460 V
- LRC 6.1x(Code G)
- Altitude 1000 m.a.s.l.
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 07509XT3E444T Specs
