07509ST3QIE444T-W22 WEG AC Motors
Part#:07509ST3QIE444T-W22
Manufacturer:WEG
Alt. Part#:7891327134133
Product Lifecycle:Active
Get a quick Quote!

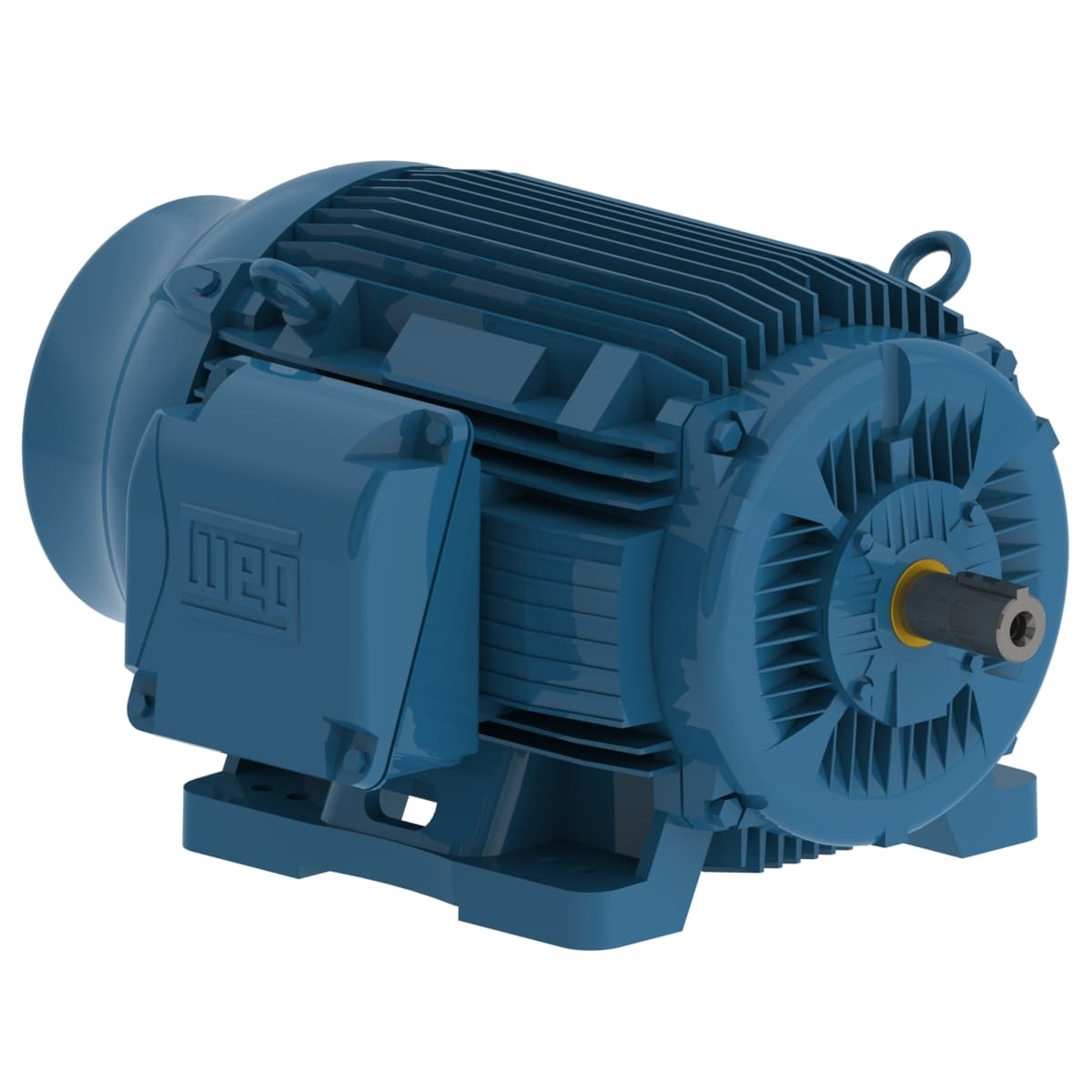

W22 IEEE 841 NEMA Premium Efficiency 75 HP 8P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 07509ST3QIE444T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed890 rpm
- Number of Poles8 Pole
- Voltage460 V
- Flange TypeWithout
- Slip 1.11 %
- Breakdown torque 200 %
- Approx. weight³ 1495 lb
- Number of Poles 8
- L. R. Amperes 598 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Locked rotor torque 170 %
- Locked rotor time 32s (cold) 18s (hot)
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Frequency 60 Hz
- Design B
- Degree of Protection IP56
- Number of poles 8
- Frame 444/5T
- LRC 6.4x(Code H)
- Insulation Class F
- Noise level² 63.0 dB(A)
- Flange Without
- Output 75 HP (55 kW)
- No load current 40.0 A
- Ambient temperature -20°C to +40°C
- Synchronous speed 900 rpm
- Rated speed 890 rpm
- Moment of inertia (J) 73.6 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 75 HP
- Rated voltage 460 V
- Service factor 1.25
- Voltage 460 V
- Rated current 93.4 A
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Rated torque 443 ft.lb
- Duty Cycle Cont.(S1)
- Mounting F-1
