AC/DC Power Supplies

787-1711

787-1711 WAGO - Switched-mode power supply; Eco; 1-phase; 12 VDC output voltage; 4 A output current; DC-OK LED

WAGO

2904623

Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 3-phase, output: 24 V DC/40 A

Phoenix Contact

2320898

Primary-switched power supply unit, QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 20 A

Phoenix Contact

QT40.242

PULS QT40.242 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It supports DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. This unit features an extended lifetime and includes a DC-OK relay contact output. It provides a rated current of 40A at 24Vdc and 34.3A at 28Vdc, with a derating to 24W between +60°C and +70°C. The QT40.242 utilizes screw-clamp connections and accepts a wide range supply voltage of 323Vac-576Vac across various nominal voltages (380Vac / 400Vac / 415Vac / 440Vac / 480Vac / 500Vac / 525Vac; 47-63Hz) with a 3-phase input. It belongs to the Q-series and is housed in an aluminium casing with dimensions of W110mm x H124mm x D127mm. Designed for a 3-phase network, it has a net width of 110 mm and offers a rated power of 960W (up to 1440W short-term for 4s). The output voltage is adjustable between 24Vdc and 28Vdc. Protection features include output overvoltage protection and active input inrush current limiter, with overload and short-circuit current protection supporting both series and parallel operation. The unit is resistant to back-feeding loads up to 35V. It achieves an efficiency of 0.952 to 0.953 depending on the input voltage, with a peak current consumption of 6A max. inrush. The start-up delay ranges from 500-600s, with a rise time of 35-40ms and a hold time of 25ms. Power dissipation/losses are 47.3W to 48.4W, depending on the input voltage. Electrical durability varies with conditions, reaching up to 475,000 hours at 25°C and 20A output with a 3AC 400Vac input. Ripple is maintained at 100mVpp, and the output stage capacitance is 10200 µF.

Puls

ML50.102

PULS ML50.102 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 4.2A at 12Vdc and features spring-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 65Vac turn-ON voltage and a 55Vac shutdown voltage) and from 88Vdc to 375Vdc (with nominal values from 100Vdc to 250Vdc). The ML50.102 is housed in a PC / ABS blend, measures 45mm in width, 75mm in height, and 91mm in depth, and is suitable for single-phase (1AC) or DC networks. It offers a rated power of 50W and an adjustable output voltage range from 12Vdc to 15Vdc, with a 400mV turn-ON overshoot. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.9 at 230Vac input. Maximum current consumption is 17A at 120Vac input and 35A peak at 230Vac input, with a 32ms start-up delay and 48ms rise time under nominal conditions. Power dissipation/losses are rated at 6W, and the output stage features a ripple of 100mVpp across 20Hz to 20MHz at 50Ω, with a capacitance of 1600μF.

Puls

2320830

Primary-switched DIN rail power supply unit. AC input: suitable for operation between two phases (400 V AC). DC input: suitable for operation in an FI intermediate circuit. Output: 24 V DC/20 A.

Phoenix Contact

1064922

Primary-switched power supply unit, TRIO POWER, Snap-on connection, Cross Power System - installation, input: 3-phase, output: 24 V DC / 5 A

Phoenix Contact

CS5.243

PULS CS5.243 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a single-phase network. It operates within an ambient air temperature range of -10 to +70°C and has a net width of 32mm. The unit consumes 1.88A with a 120Vac input and 2.23A with a 100Vac input for a full 24Vdc output, featuring a peak inrush current of 56A at 120Vac and 47A at 100Vac. It boasts an efficiency of 0.9 at 120Vac input and 0.895 at 100Vac input. The dimensions are W32mm x H124mm x D117mm. It has a 120ms start-up delay and a rise time of 8ms under nominal input with a constant full current load without load capacitance, and 25ms with 5mF load capacitance. The CS5.243 includes protection functions such as output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection. It supports series or parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation is 13.5W at full output load with a 120Vac input, and the output stage capacitance is 1800µF. Its electrical durability ranges from 27,000 to 363,000 hours depending on the conditions. The ripple is 50mVpp, and it features a 20% power reserve. Part of the C-Line series, it includes a DC-OK relay contact output and screw-clamp connections. The supply voltage ranges from 90Vac to 132Vac, with a rated current of 6A at 24Vdc under 45°C and a rated power of 144W under 45°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 400mV turn-ON overshoot and a hold time of 78ms at 120Vac input.

Puls

2903158

Primary-switched TRIO POWER power supply with push-in connection for DIN rail mounting, input: 1-phase, output: 12 V DC/10 A

Phoenix Contact

2903144

Primary-switched TRIO POWER power supply with push-in connection for DIN rail mounting, input: 1-phase, output: 24 V DC/5 A

Phoenix Contact

CPS20.481

PULS CPS20.481 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65mm. The unit consumes 2.33A with a 230Vac input for full 48Vdc output, 4.36A with a 120Vac input, and 5.25A with a 100Vac input, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It features an IP20 degree of protection and achieves efficiencies of 0.939, 0.926, and 0.92 at 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions of the CPS20.481 are W65mm x H124mm x D127mm. It has a start-up delay of 850ms and rise times of 90ms and 230ms under specified conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and supports series/parallel operation for increased output power. It can handle back-feeding loads up to 63V without malfunctioning. Power dissipation/losses are rated at 31.2W, and the output stage capacitance is 2450µF. Electrical durability varies with conditions, reaching up to 475000 hours. The ripple is specified at 50mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and comes with ATEX approval and a DC-OK relay contact output. Connection is made via screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 10A at 48Vdc with derating above 60°C. Designed for single-phase networks, it provides a rated power of 576W with PowerBoost below 45°C and 480W below 60°C. The output voltage is adjustable between 48Vdc and 56Vdc, with a 200mV turn-ON overshoot and a hold time of 26ms.

Puls

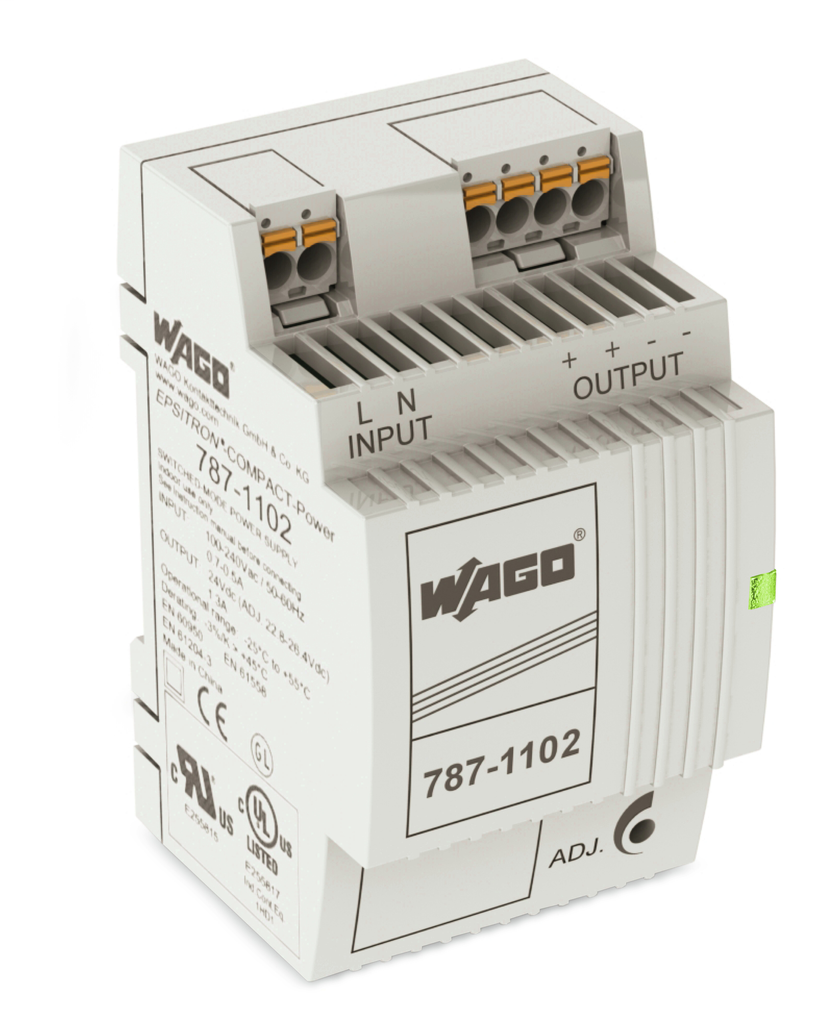

787-1102

787-1102 WAGO - EPSITRON® COMPACT power supply; single-phase; output voltage 24 VDC; 1.3 A; with picoMAX connector

WAGO

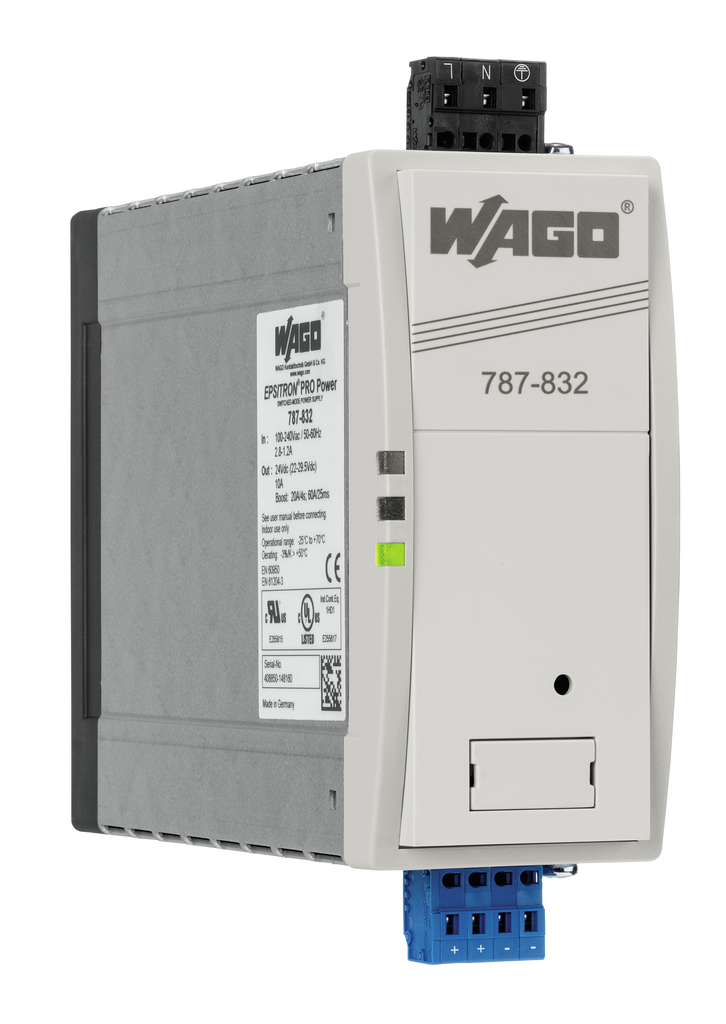

787-832

787-832 WAGO - EPSITRON® PRO Power supply; single-phase; output voltage 24 VDC; 10 A; PowerBoost

WAGO

2903145

Primary-switched TRIO POWER power supply with push-in connection for DIN rail mounting, input: single phase, output: 24 V DC/10 A

Phoenix Contact

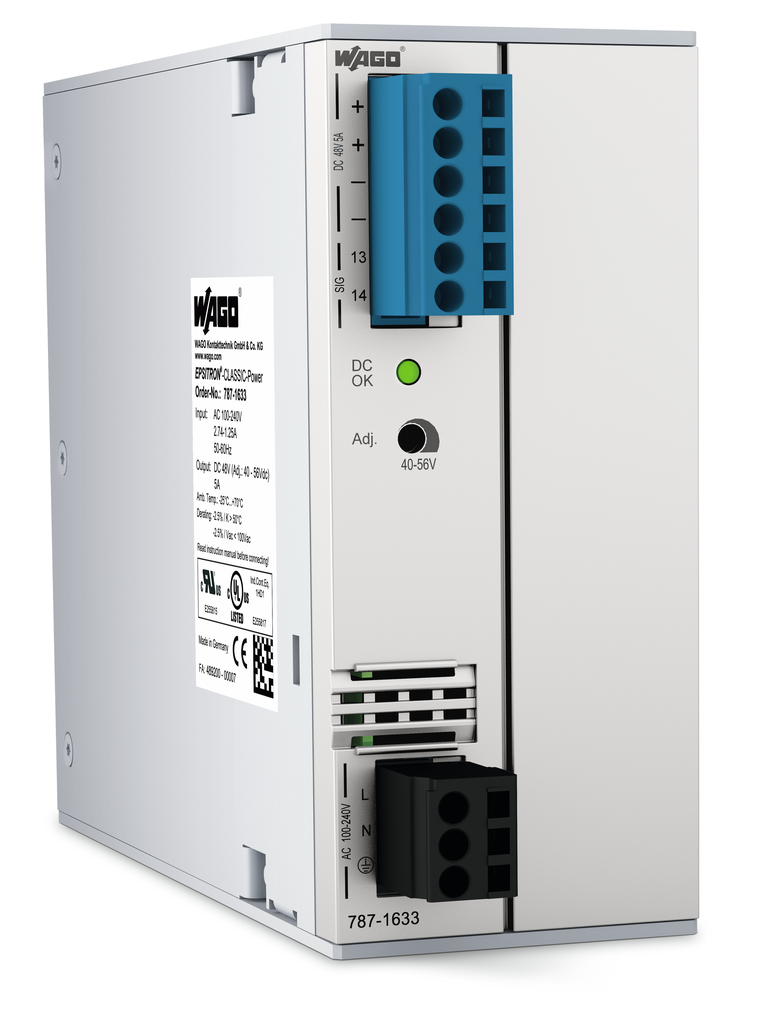

787-1633

787-1633 WAGO - EPSITRON® CLASSIC power supply; 2-phase; output voltage 48 VDC; 5 A

WAGO

787-822

787-822 WAGO - EPSITRON® PRO Power supply; single-phase; output voltage 24 VDC; 5 A; PowerBoost

WAGO

QT20.481

PULS QT20.481 is a power supply unit designed for AC/DC conversion with a 50% power reserve, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features a design that includes a DC-OK relay contact output. The unit provides a rated current of 10A at 48Vdc and 8.7A at 55Vdc, with a power derating applicable from 12W at +60°C to +70°C. Connection is facilitated through spring-clamp connections. It supports a wide range supply voltage from 323Vac to 576Vac across various nominal voltages (380Vac / 400Vac / 415Vac / 440Vac / 480Vac / 500Vac / 525Vac) at 47-63Hz, indicating a 3-phase input capability with specific turn-ON and shutdown voltages. The QT20.481, part of the Q-series, measures 65mm in width, 124mm in height, and 127mm in depth, housed in aluminium for durability. It is designed for a 3-phase network, with a rated power of 480W at both 48Vdc and 55Vdc, and can momentarily support up to 720W for short durations (4s). The output voltage is adjustable between 48Vdc and 55Vdc. Protection features include output overvoltage protection and active input inrush current limiting, with capabilities for overload/short-circuit protection, series/parallel operation, and back-feeding load resistance. Efficiency rates are high, at 0.95 for a 3x480Vac input and 0.954 for a 3x400Vac input. The unit exhibits a peak current consumption of 10A at both 3x400Vac and 3x480Vac inputs, with specific start-up delay and rise times. Hold time is consistent at 22ms for both 3x480Vac and 3x400Vac inputs. Power dissipation varies with input voltage, and the unit's electrical durability is rated in hours across different conditions. Ripple is maintained at 100mVpp across a 20Hz to 20MHz range, with an output stage capacitance of 250µF.

Puls

ML50.101

PULS ML50.101 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is optimized for parallel use with a DC-OK relay contact output. This unit has a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac; 47-63Hz), including a 65Vac turn-ON voltage and a 55Vac shutdown voltage, as well as a DC supply voltage range from 88Vdc to 375Vdc. The ML50.101 features a PC / ABS blend housing, is compatible with single-phase (1AC) or DC networks, and has dimensions of W45mm x H75mm x D91mm. It offers a rated power of 50W and an adjustable output voltage range from 24Vdc to 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency is rated at 0.885 with a 230Vac input, and it has a maximum current consumption of 17A inrush at 120Vac input and 35A peak max. inrush at 230Vac input. The unit exhibits a 32ms start-up delay, a rise time of 33-48ms under nominal input with a constant full current load and 0mF load capacitance, and a 45-60ms rise time with 2mF load capacitance. Power dissipation/losses are calculated at 6.8W, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω, and an output stage capacitance of 1600μF.

Puls

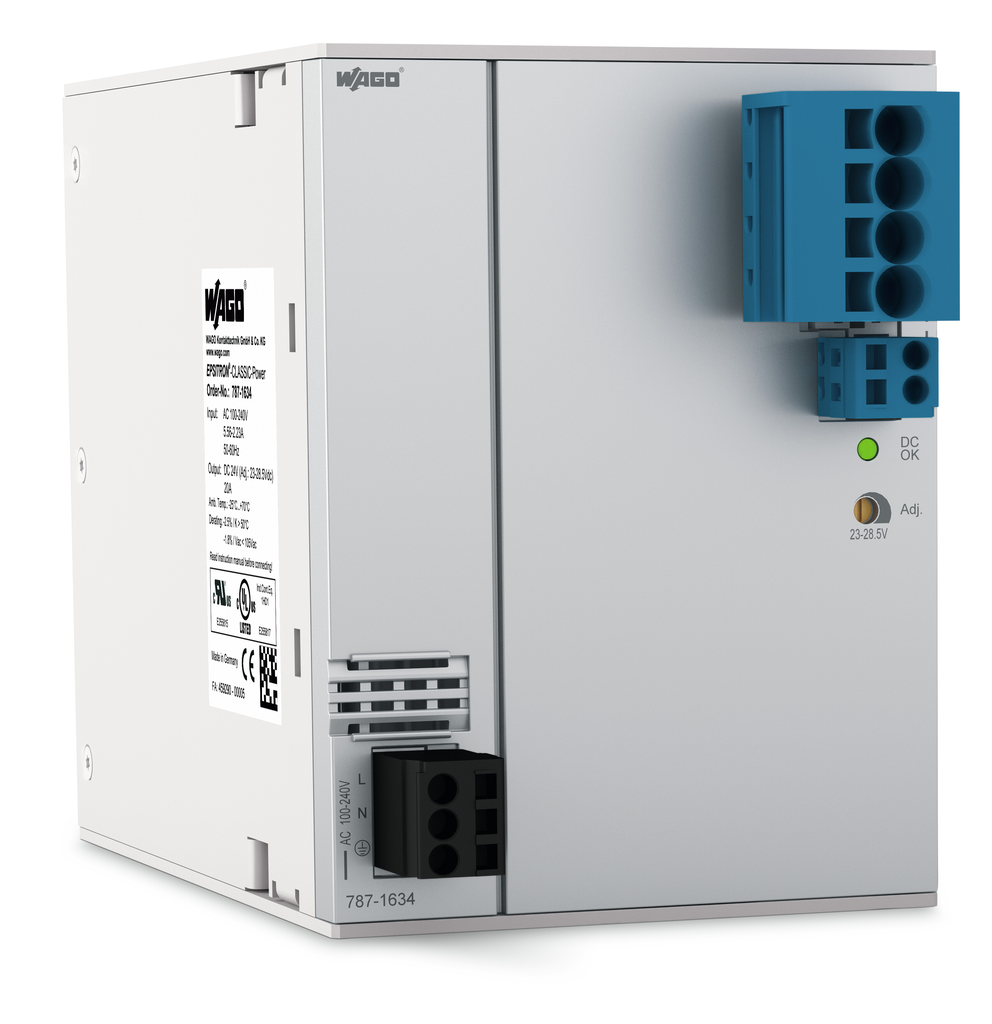

787-1634/000-070

787-1634/000-070 WAGO - Switched-mode power supply; Classic; 1-phase; 24 VDC output voltage; 20 A output current; TopBoost; DC OK contact

WAGO

QT5.241

Dimension Q-Series Power Supply, 120W

Puls
