AC/DC Power Supplies

SL10.104

Power Supply, 180W, 100-120 / 200-240VAC 1PH, 12-15VDC, 15-12A

Puls

CP20.241-C1

PULS CP20.241-C1 is a DIN rail mounting power supply unit housed in aluminium, designed for operation in ambient air temperatures ranging from -25 to +70°C. It features a net width of 48mm and dimensions of W48mm x H124mm x D127mm. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input, with efficiencies of 0.956, 0.942, and 0.936 at 230Vac, 120Vac, and 100Vac inputs respectively. It is chemically resistant with a conformal coated PCB suitable for harsh environments. The CP20.241-C1 offers a 450ms start-up delay and rise times of 145ms and 160ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and handling back-feeding loads up to 35V. Power dissipation/losses are 22.1W and 29.6W for 230Vac and 120Vac inputs at full output load, respectively. The output stage capacitance is 8500µF, and the unit demonstrates electrical durability across various conditions, with ripple at 50mVpp. It functions as an AC/DC power supply unit with a 20% power reserve, part of the CP-series, featuring ATEX approval, conformal coating, and a DC-OK relay contact output. Connection is via screw-clamp connections, with supply voltages of 88Vdc-180Vdc and 85Vac-264Vac, rated current of 20A at 24Vdc, and a rated power of 480W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 32ms hold time at 120/230Vac input.

Puls

CP10.241-S2

PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39 mm. The current consumption varies with input voltage, being 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input and full constant current load without load capacitance, and 160ms with 10mF load capacitance. It features protection against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart in case of over-temperature conditions. The unit supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C and 12A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and push-in spring connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc from -25 to +45°C, 10A at 24Vdc from +45 to +60°C, and 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, with a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot, and a hold time of 37ms at 120/230Vac input.

Puls

SL10.101

Power Supply, 240W, 100-120 / 200-240VAC 1PH, 48-56VDC, 5-4.3A

Puls

2904599

Primary-switched power supply unit, QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.8 A

Phoenix Contact

2904610

Primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) technology, input: 1-phase, output: 48 V DC / 5 A

Phoenix Contact

ML50.109

PULS ML50.109 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a NEC Class 2 conformal coating with a DC-OK relay contact output. The unit provides a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac for AC (with specific nominal values and a 65Vac turn-ON voltage and 55Vac shutdown voltage) and from 82Vdc to 380Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML50.109 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC/ABS blend material. It delivers a rated power of 50W with an adjustable output voltage range of 24Vdc to 28Vdc. The unit is designed with protection functions including an NTC for input inrush current limiting and boasts an efficiency of up to 0.89 depending on the input voltage. It has a maximum current consumption of 17A at 120Vac input and 35A peak at 230Vac input, with a power dissipation/loss of 6.2W. The electrical durability of the ML50.109 is rated at a minimum of 54,000 hours at +40°C, and it features a ripple of 50mVpp across a frequency range of 20Hz to 20MHz. The output stage capacitance is 1600µF, ensuring stable operation across its service life.

Puls

CS5.244

PULS CS5.244 is a DIN rail mounting power supply unit enclosed in an aluminium housing, designed for a single-phase network. It operates within an ambient air temperature range of -10 to +70°C and consumes 1.16A at 230Vac input for full 24Vdc output, with a peak inrush current of 38A at 230Vac input. The unit boasts an efficiency of 0.902 at 230Vac input and has dimensions of W32mm x H124mm x D117mm. It features a 130ms start-up delay, an 8ms rise time at nominal input with a constant full current load and 0mF load capacitance, and a 25ms rise time under the same conditions with 5mF load capacitance. Protection functions include output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection with a minimum of 10A and a maximum of 14A at load impedance. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 13.2W at 230Vac input with full output load, and the output stage capacitance is 1800µF. The electrical durability ranges from 42,000 to 408,000 hours depending on the conditions, with a ripple of 50mVpp. This AC/DC power supply unit, part of the C-Line series, includes a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage of 180Vac-264Vac, with a rated current of 6A at 24Vdc in ambient temperatures less than 45°C and 5A at 24Vdc in temperatures less than 60°C. The rated power is 144W in ambient temperatures less than 45°C and 120W in temperatures less than 60°C, with an adjustable output voltage of 24Vdc-28Vdc and a 78ms hold time at 230Vac input.

Puls

CP10.122

PULS CP10.122 is a DIN rail mounting power supply unit enclosed in an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 39mm and dimensions of W39mm x H124mm x D117mm. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.943 at 230Vac input, 0.928 at 120Vac input, and 0.921 at 100Vac input. The CP10.122 offers a start-up delay of 240-300ms for 100-230Vac input, with rise times of 18ms and 35ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit current protection, with capabilities for series/parallel operation and resistance to back-feeding loads up to 25V. Power dissipation/losses are 11.6W at 230Vac input and 14.9W at 120Vac input, with an output stage capacitance of 5350µF. The electrical durability varies with conditions, reaching up to 534000 hours. The ripple is specified at 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit, part of the CP-series, features a 20% power reserve, shutdown input, extended DC input, and DC-OK relay contact output, with screw-clamp connections. It supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 16A at 12Vdc, and offers a rated power of 192W. The output voltage is adjustable between 12Vdc and 15Vdc, with a 200mV turn-ON overshoot and a hold time of 50ms. It is suitable for single-phase (1AC) or DC networks.

Puls

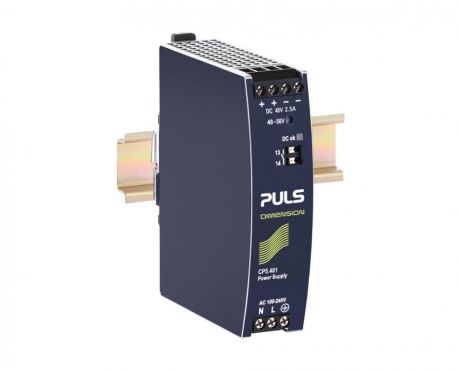

CP5.481

PULS CP5.481 is a DIN rail mounting power supply unit with an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -10 to +70°C, with linear derating between +60 and +70°C. The unit consumes current at varying rates depending on the input voltage, including 0.61A at 230Vac, 1.09A at 120Vac, and 1.31A at 100Vac for full output, among other specified rates. It features an IP20 degree of protection and achieves an efficiency of up to 93.5% at 230Vac input. The dimensions are specified as 32mm in width, 124mm in height, and 102mm in depth. The CP5.481 includes a time delay for start-up and rise, with specific values provided for different conditions. It offers protection functions such as output overvoltage and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 63V. Power dissipation losses are detailed for various input conditions, and the output stage capacitance is 750µF. Electrical durability is extensively detailed, highlighting operational hours under various conditions and temperatures. The ripple voltage is specified under different load conditions. This AC/DC power supply unit is part of the CP-series, designed with NEC Class 2, a 20% power reserve, and includes a DC-OK relay contact output. Connection is facilitated through screw-clamp connections. It supports a wide range of supply voltages both in AC and DC, with detailed specifications for rated current and power across different temperatures, and an adjustable output voltage range of 48-56Vdc. The hold time after power loss is also specified for different input conditions.

Puls

SL10.100

PULS SL10.100 is a power supply unit featuring an EMC filter and DC-OK relay contact output. It operates as an AC/DC PSU/converter with capabilities for parallel operation and a power boost up to 288W. The unit is equipped with screw-clamp connections and has dimensions of W120mm x H124mm x D102mm. It supports a supply voltage range of 85Vac-132Vac / 176Vac-264Vac across various nominal voltages from 100Vac to 240Vac at a frequency of 47-63Hz. The SL10.100 provides a rated current of 10A at 24Vdc with a derating at 6W/+60°C to +70°C. Designed for DIN rail mounting, it can operate within an ambient air temperature range of 0 to +70 °C. The current consumption is 6A with a 115V input and 2.6A with a 230V input, with a maximum inrush of 30A at 264Vac input. This single-phase unit includes protection functions against output overvoltage (35V), short-circuit, overload/short-circuit current, and allows for series/parallel operation with power back immunity (34V). The output voltage is adjustable between 24Vdc and 28Vdc, with an efficiency of 0.9 at 230Vac input. The rated power is 288W at temperatures up to +45°C and 240W up to +60°C. It features a hold time of 25ms at 196Vac input, power dissipation/losses of 26.7W at full output load with 230Vac input, a start-up delay of 100ms, a rise time of 5-20ms under nominal input at constant full current load, and a ripple of 30mVpp at 20Hz to 20MHz with a 50Ω load.

Puls

CP5.242

PULS CP5.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit offers a current consumption of 7A peak max. inrush at both 230Vac and 120Vac inputs. Efficiency rates are 0.943 at 230Vac input, 0.935 at 120Vac input, and 0.927 at 100Vac input. It includes a time delay of 380-420ms for start-up and rise times of 80ms and 100ms under specified conditions. The CP5.242 provides protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 7.3 W and 8.2 W for 230Vac and 120Vac inputs at full output load, respectively. The output stage capacitance is 1800 µF. Electrical durability ranges from 96,000 to 775,000 hours under various conditions. Ripple is specified at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with an enhanced DC input and a 20% power reserve, featuring a DC-OK relay contact output and screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC and 110Vdc-180Vdc for DC, with a rated current of 5A at 24Vdc, and offers an adjustable output voltage of 24Vdc-28Vdc. The unit is suitable for single-phase (1AC) or DC networks and provides a rated power of 120W, with a hold time of 35ms.

Puls

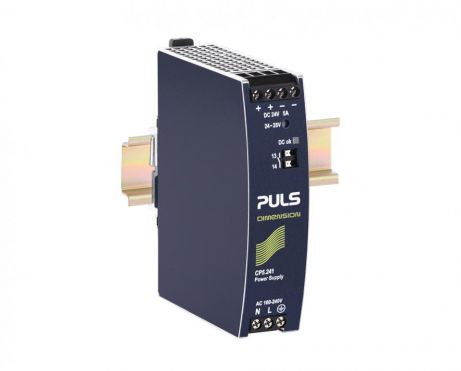

CP5.241-S2

PULS CP5.241-S2 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 32mm and dimensions of W32mm x H124mm x D102mm. This unit has a current consumption of 7A peak max inrush at both 230Vac and 120Vac input, with efficiencies of 0.943, 0.935, and 0.927 at 230Vac, 120Vac, and 100Vac inputs respectively. It offers a time delay of 380-420ms for start-up and rise times of 80ms and 100ms under specified conditions. The CP5.241-S2 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 7.3W and 8.2W for 230Vac and 120Vac inputs at full load, respectively. The output stage capacitance is 1800µF. Electrical durability ranges from 96000 to 775000 hours under various conditions. Ripple is specified at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with a 20% power reserve, DC-OK relay contact output, and push-in spring connections. It supports a supply voltage range of 85Vac-264Vac for AC and 110Vdc-180Vdc for DC, with a rated current of 5A at 24Vdc, and a rated power of 120W. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot and a hold time of 35ms.

Puls

QT40.481

PULS QT40.481 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It supports DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. This unit features a design that includes a 50% power reserve and a DC-OK relay contact output. It offers a rated current of 20A at 48Vdc and 17.8A at 54Vdc, with a power derating applicable from 24W at +60°C to +70°C. The QT40.481 utilizes screw-clamp connections for its inputs and outputs and is designed to work with a supply voltage (AC) ranging from 323Vac to 576Vac across various nominal voltages, accommodating a wide range of 3-phase inputs. It belongs to the Q-series and is housed in an aluminium casing with dimensions of W110mm x H124mm x D127mm. This unit is compatible with 3-phase networks and has a net width of 110 mm. Its rated power is 960W at both 48Vdc and 54Vdc, with a short-term capacity of 1440W for up to 4 seconds. The output voltage is adjustable between 48Vdc and 54Vdc. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection ensuring operational stability. The QT40.481 supports series or parallel operation for increased output power and is resistant to back-feeding loads up to 63V. It boasts high efficiency rates of 0.952 and 0.954 for 3x480Vac and 3x400Vac inputs, respectively. Peak inrush current consumption is capped at 6A for both 3x400Vac and 3x480Vac inputs. The unit exhibits a start-up delay of 500-600s and rise times of 23ms and 47ms under specified conditions, with a hold time of 25ms. Power dissipation losses are noted at 48.4W and 46.3W for full output loads at 3x480Vac and 3x400Vac inputs, respectively. Its electrical durability spans up to 324000 hours at 25°C and 10A output for a 3AC 400Vac input, with varying durability at different temperatures and outputs. The ripple is specified at 150mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 3700 µF.

Puls

ML50.105

PULS ML50.105 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified under NEC Class 2 design. The unit provides a rated current of 1.05A at 48Vdc with a power derating from 1.3W at +60°C to +70°C. It features spring-clamp connections for secure and reliable connectivity. The supply voltage ranges from 85Vac to 264Vac for AC input (with specific nominal values including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz, a turn-ON voltage of 65Vac, and a shutdown voltage of 55Vac) and from 88Vdc to 375Vdc for DC input (with nominal values such as 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc). The housing is made from a PC / ABS blend, ensuring durability within its specified environment. This unit is compatible with single-phase (1AC) or DC networks, has a net width of 45 mm, and offers a rated power of 50W. The output voltage is adjustable between 48Vdc and 56Vdc, with a 400mV turn-ON overshoot. It boasts an efficiency of 0.9 with a 230Vac input, a maximum inrush current consumption of 17A at 120Vac input and 35A peak at 230Vac input, and includes a 32s start-up delay for 100-230Vac input with a 48ms rise time under nominal input conditions. Power dissipation/losses are rated at 6W, with a ripple of 200mVpp across a frequency range of 20Hz to 20MHz at 50Ω, and an output stage capacitance of 1600 µF.

Puls

CP5.241-M1

PULS CP5.241-M1 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32mm. The unit features a current consumption of 7A peak max. inrush at both 230Vac and 120Vac input. Its efficiency rates are 0.943 at 230Vac input, 0.936 at 120Vac input, and 0.929 at 100Vac input. The dimensions of the CP5.241-M1 are W32mm x H124mm x D102mm. It has a start-up delay time of 380-420ms for 100-230Vac input, with rise times of 80ms under nominal input with a constant full current load and 0mF load capacitance, and 100-110ms with 5mF load capacitance. The unit includes protection functions such as output overvoltage protection and overload/short-circuit current protection, with a resistance to back-feeding loads up to 35V. Power dissipation/losses are 7.3W at 230Vac input and 8.2W at 120Vac input, with an output stage capacitance of 1800µF. Electrical durability varies with conditions, reaching up to 775,000 hours at 25°C and 2.5A output with 1AC 230Vac input. The ripple is 50mVpp across 20Hz to 20MHz at 50Ω. This AC/DC power supply unit, part of the CP-series designed for medical applications, features a DC-OK relay contact output and spring-clamp connections. It supports a supply voltage range of 85Vac-264Vac, with an overvoltage input range of 264-300Vac for up to 500ms, and has a rated current of 5A at 24Vdc with a derating above 60°C. The unit provides a single-phase supply, with a rated power of 120W and an adjustable output voltage of 24Vdc-28Vdc. The hold time is 35ms at both 120/230Vac input.

Puls

2866721

Primary-switched power supply unit, QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 12 V DC / 20 A

Phoenix Contact

CP5.241-C1

PULS CP5.241-C1 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 32mm and dimensions of W32mm x H124mm x D102mm. This unit has a current consumption of 7A peak max. inrush at both 230Vac and 120Vac input, with efficiencies of 0.943, 0.935, and 0.927 at 230Vac, 120Vac, and 100Vac inputs respectively. The CP5.241-C1 is equipped with a conformal coated PCB for resistance to harsh environments. It offers a start-up delay of 380-420ms and rise times of 80ms and 100ms under specified conditions. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and 1+1 redundancy using a redundancy module. Power dissipation/losses are 7.3W and 8.2W at full output load for 230Vac and 120Vac inputs, respectively. The output stage capacitance is 1800µF, and electrical durability ranges from 96,000 to 775,000 hours under various conditions. The ripple is 50mVpp, and the unit functions as an AC/DC power supply with a 20% power reserve. It belongs to the CP-series and features a design with conformal coating, 20% power reserve, and DC-OK relay contact output. Connection is made via screw-clamp connections. Supply voltage ranges from 85Vac-264Vac for AC and 110Vdc-180Vdc for DC, with a rated current of 5A at 24Vdc, and a rated power of 120W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot and a hold time of 35ms.

Puls

QT40.361

PULS QT40.361 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 26.7A at 36Vdc and 22.9A at 42Vdc, with a power derating of 24W at temperatures from +60°C to +70°C. Connection is facilitated through screw-clamp connections. The supply voltage accommodates a wide range of 323Vac to 576Vac (with nominal values including 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac; 47-63Hz), featuring a 3-phase input, a turn-ON voltage of 3 x 305Vac, and a shutdown voltage of 3 x 275Vac in steady-state conditions. This part of the Q-series measures W110mm x H124mm x D127mm and is housed in aluminium. It is designed for a 3-phase network, with a net width of 110 mm. The rated power is 960W at both 36Vdc and 42Vdc, with a short-term capacity of 1440W for up to 4 seconds. The output voltage is adjustable between 36Vdc and 42Vdc, with a turn-ON overshoot of 750mV. Protection functions include output overvoltage protection, active input inrush current limiter, and overload/short-circuit protection. It supports series or parallel operation for increased output power and is resistant to back-feeding loads up to 50V. The efficiency rates are 0.952 at 3x480Vac input and 0.953 at 3x400Vac input. Peak inrush current consumption is 6A at both 3x400Vac and 3x480Vac inputs. The unit has a start-up delay of 500-600s, with rise times of 40ms and 45ms under specified conditions, and a hold time of 25ms. Power dissipation losses are 48.4W and 47.3W for 3x480Vac and 3x400Vac inputs, respectively, under full output load. Electrical durability spans from 363000 hours to 72000 hours across various conditions, with a ripple of 130mVpp at 20Hz to 20MHz and an output stage capacitance of 4700µF.

Puls

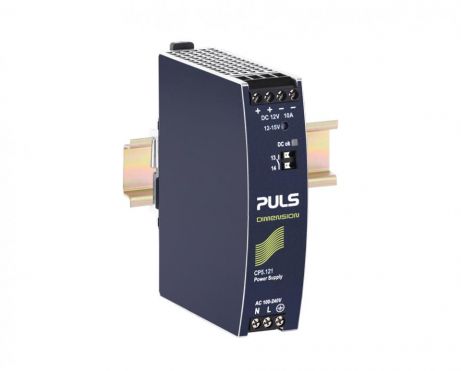

CP5.121

PULS CP5.121 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit offers a current consumption of 7A peak max inrush at both 230Vac and 120Vac inputs. Its efficiency rates are 0.94 at 230Vac input, 0.932 at 120Vac input, and 0.926 at 100Vac input. The CP5.121 provides a time delay of 350-400ms for start-up and a rise time of 30ms under nominal input with a constant full current load without load capacitance, and 50ms with 10mF load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 25V. Power dissipation/losses are 7.7W at full output load with 230Vac input and 8.8W with 120Vac input. The output stage capacitance is 2700 µF. Electrical durability varies with conditions, offering up to 839000 hours at 25°C with 5A output and 1AC 120Vac input. The ripple is 50mVpp across 20Hz to 20MHz at 50Ω. This AC/DC power supply unit, part of the CP-series, is designed with a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC and 110Vdc-150Vdc for DC, with a rated current of 10A at 12Vdc, and provides an adjustable output voltage of 12Vdc-15Vdc. The hold time is 35ms at both 120/230Vac input.

Puls
