AC/DC Power Supplies

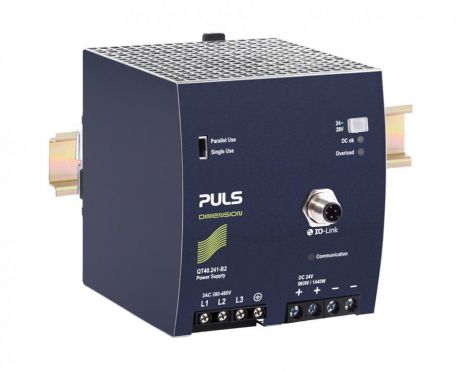

QT40.241-B2

Power Supply, 960W, AC 380-480V input, 3 phase, 24-28Vdc output, 40A, IO-Link

Puls

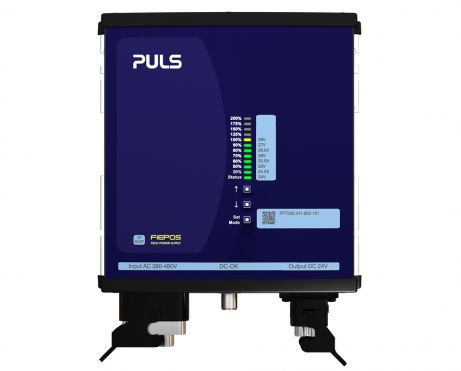

FPT500.241-002-101

PULS FPT500.241-002-101 is a power supply unit from the FPT500 Basic 3AC series designed for field AC/DC power supply or conversion. It features a DC-OK relay contact output within an aluminium housing and utilizes a HanQ4/2 female connector for input, a 5-pin M12 connector for DC-OK, and a HanQ4/0 connector for output. This unit offers protection against output overvoltage, overload, short-circuit, and over-temperature, with specific mechanisms for handling heavy overloads and automatic restarts under certain conditions. It does not support series or parallel operation and is designed to resist back-feeding loads up to 35V / 4J. The rated current is 20.8A at 24Vdc, with a supply voltage range of 323Vac-552Vac across various nominal voltages and frequencies. It is designed for hanging or screw mounting, operates within an ambient air temperature range of -25 to +70°C, and offers IP65 and IP67 protection. The unit operates on a 3-phase network, with specific current consumption and efficiency ratings based on input voltage. It provides a rated power of 600W to 350W depending on the operating temperature, with short-term power availability up to 1000W. The output voltage is adjustable between 24Vdc and 28Vdc, with a specified electrical durability and power dissipation/losses under different conditions.

Puls

SL10.106

Power Supply, 240W, 100-120 / 200-240VAC 1PH, 48-56VDC, 5-4.3A with PFC

Puls

CP10.241-R1

PULS CP10.241-R1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 39mm. The unit consumes 1.14A at 230Vac input and full output, 2.17A at 120Vac input and full output, and 2.63A at 100Vac input and full output, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It features an IP20 degree of protection and achieves an efficiency of 0.947 at 230Vac input. The dimensions of the CP10.241-R1 are W39mm x H124mm x D117mm. It has a start-up delay time of 240-300ms for 100-230Vac input and a rise time of 30ms to 75ms depending on the load capacitance. The power supply unit includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or redundancy. It is equipped with a built-in MOSFET as a decoupling device to prevent a faulty unit from affecting others in the system. The unit can handle back-feeding loads up to 35V without malfunctioning. Power dissipation losses are 13.4W at 230Vac input and full output load. The output stage capacitance is 4400µF, and the electrical durability ranges from 47,000 to 531,000 hours depending on the operating conditions. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit is part of the CP-series and features spring-clamp connections, a supply voltage range of 85Vac-264Vac for AC and 88Vdc-180Vdc for DC, with a rated current of 12A at 48Vdc up to +45°C. The rated power is 288W at -25 to +45°C, and the output voltage is adjustable between 24Vdc and 25.4Vdc, with a hold time of 37ms at 120/230Vac input.

Puls

CP10.241-R2

PULS CP10.241-R2 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 39mm. The unit consumes current differently based on the input, including 1.14A with 230Vac input, 2.17A with 120Vac input, 2.63A with 100Vac input, and 2.35A with 110Vdc input, all at full output. It features a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. With an IP20 degree of protection, the efficiency rates are 0.947 at 230Vac input and 0.93 at 120Vac input. Its dimensions are W39mm x H124mm x D117mm. The unit has a start-up delay of 240-300ms and rise times of 30ms and 75ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or redundancy. The power dissipation/losses are 13.4W and 18.1W for 230Vac and 120Vac inputs at full load, respectively. The output stage capacitance is 4400µF. Electrical durability varies with conditions, offering up to 531000 hours at 25°C with 5A output and 1AC 230Vac input. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the CP-series, is designed with a built-in decoupling MOSFET for 1+1 or N+1 redundancy and includes a 20% power reserve. It features DC-OK relay contact output and hot-swappable connectors. The supply voltage ranges from 88Vdc to 180Vdc for DC and 85Vac to 264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc up to +45°C, decreasing at higher temperatures. It supports single-phase (1AC) or DC networks and provides a rated power of 288W at -25 to +45°C, with linear derating up to +70°C. The output voltage is adjustable from 24Vdc to 25.4Vdc, with a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

Puls

CP10.241-R2-C1

PULS CP10.241-R2-C1 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 39 mm and features current consumption rates of 1.14A with a 230Vac input, 2.17A with a 120Vac input, 2.63A with a 100Vac input, and 2.35A with a 110Vdc input, all at full output. It offers a peak max. inrush of 11A at 230Vac input and 7A at 120Vac input. With an IP20 degree of protection and an efficiency of 0.947 at 230Vac input, this power supply unit is also chemically resistant with a conformal coated PCB. Its dimensions are W39mm x H124mm x D117mm. The time delay for start-up is 240-300ms for 100-230Vac input, with a rise time of 30ms at nominal input for a full constant current load without load capacitance and 75ms with 2mF load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output voltages or redundancy. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 13.4 W at 230Vac input and 18.1 W at 120Vac input, with an output stage capacitance of 4400 µF. Electrical durability ranges from 47,000 to 531,000 hours depending on conditions. The ripple is 50mVpp. This AC/DC power supply unit is part of the CP-series and is designed with built-in decoupling MOSFET for 1+1 or N+1 redundancy, hot-swappable connectors, conformal coating, and a 20% power reserve. It features a DC-OK relay contact output and supports a supply voltage range of 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with a rated current of 12A at 48Vdc up to +45°C. The rated power is 288W up to +45°C, and the output voltage is adjustable between 24Vdc and 25.4Vdc. The hold time is 37ms at 120/230Vac input.

Puls

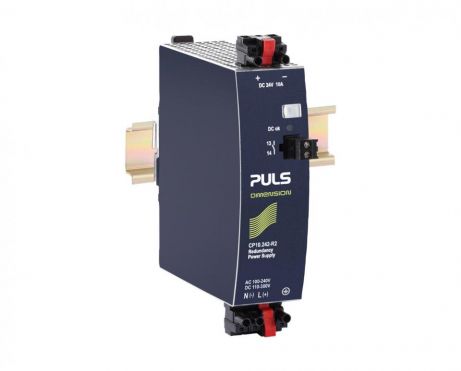

CP10.242-R2

Power supply with integrated decoupling function, 240W, AC 100-240V | DC 110-300V input, 1 phase, 24Vdc output, 10A, hot swappable, enhanced DC input

Puls

CP20.241-R2-C1

PULS CP20.241-R2-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -40 to +70°C and has a net width of 48 mm. The unit consumes current differently based on the input, including 2.25A with 230Vac input, 4.28A with 120Vac input, 5.17A with 100Vac input, and 4.64A with 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 5.5A and 12A for 230Vac and 120Vac inputs respectively. It features an IP20 degree of protection and achieves efficiencies of 0.952 and 0.938 with 230Vac and 120Vac inputs, respectively. The power supply is resistant to harsh environments, thanks to its conformal coated PCB, and has dimensions of W48mm x H124mm x D127mm. It includes a 450ms start-up delay and rise times of 145ms and 160ms under specified conditions. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and resistance to back-feeding loads up to 35V. Power dissipation losses are 24.2W and 31.7W for 230Vac and 120Vac inputs, respectively, with an output stage capacitance of 8000 µF. Electrical durability varies with conditions, offering up to 465,000 hours at 25°C with a 10A output and 1AC 230Vac input. The ripple is specified as 100mVpp. This AC/DC power supply unit, part of the CP-series, is designed with built-in decoupling MOSFET for redundancy, hot-swappable connectors, ATEX approval, and a 20% power reserve. It supports a supply voltage range of 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific shutdown and turn-on voltages. The rated current is 24A at 48Vdc in temperatures up to +45°C, with derating at higher temperatures. It provides a fixed 24Vdc output voltage and includes a 32ms hold time at standard AC inputs.

Puls

CP20.242-R2

Power supply with integrated decoupling function, 480W, AC 100-240V | DC 110-300V input, 1 phase, 24Vdc output, 20A, enhanced DC input

Puls

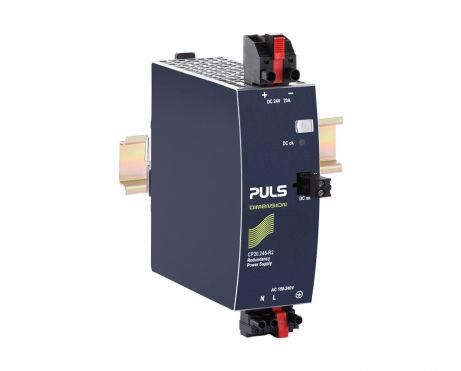

CP20.245-R2

Power supply with integrated decoupling function, 480W, AC 100-240V | DC 110-150V input, 1 phase, 24Vdc output, 20A, Marine approvals, EMC Class B

Puls

CP20.248

Power Supply, 480W, AC 100-240V | DC 110-150V input, 1 phase, 24-28Vdc output, 20A, monitoring display

Puls

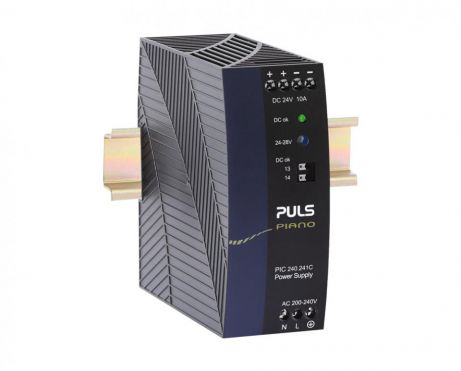

PIC240.241C

Power Supply, 240W, AC 200-240V input, 1 phase, 24-28Vdc output, 10A, DC-OK relay contact

Puls

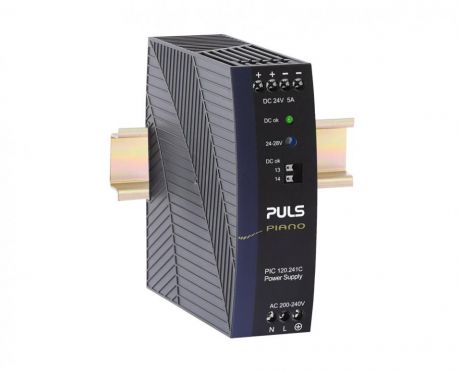

PIC120.241C

Power Supply, 120W, AC 200-240V input, 1 phase, 24-28Vdc output, 5A, DC-OK relay contact

Puls

CP20.242

PULS CP20.242 is a DIN rail mounting power supply unit enclosed in an aluminium housing, designed for a wide range of industrial automation applications. It operates within an ambient air temperature range of -25 to +70°C and offers various current consumption rates depending on the input voltage, including 2.23A at 230Vac, 4.26A at 120Vac, 5.15A at 100Vac, 4.64A at 110Vdc, and 1.66A at 300Vdc, with peak inrush currents of 5.5A at 230Vac and 12A at 120Vac. The unit features an IP20 degree of protection and achieves high efficiency rates of 0.956 at 230Vac and 0.942 at 120Vac. Its dimensions are W48mm x H124mm x D127mm. The CP20.242 includes a 450ms start-up delay and rise times of 145ms and 160ms under different load conditions. It is equipped with protection functions against output overvoltage and overload/short-circuit scenarios, and supports series or parallel operation for increased output voltages or power, including 1+1 redundancy with a redundancy module. The power dissipation/losses are 22.1W at 230Vac and 29.6W at 120Vac, with an output stage capacitance of 8500µF. Its electrical durability varies with temperature and output current, offering up to 488000 hours of operation under certain conditions. The ripple is maintained at 50mVpp across a wide frequency range. This AC/DC power supply unit, part of the CP-series, is designed for enhanced DC input and includes a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 88Vdc-360Vdc and 85Vac-264Vac, with specific tolerances for over and under voltages, and provides a rated current of 24A at 24Vdc in temperatures up to +45°C, with derating at higher temperatures. The rated power is 576W at temperatures up to +45°C, decreasing linearly up to +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot and a hold time of 32ms at standard input voltages.

Puls

SL10.105

Power Supply, 240W, 100-120 / 200-240VAC 1PH, 24-28VDC, 10-8.6A with PFC

Puls

ML50.111

PULS ML50.111 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a plug connector NEC Class 2 optimized for parallel use, including a DC-OK relay contact output. The unit has a rated current of 2.1A at 24Vdc and utilizes screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac; 47-63Hz), including a 65Vac turn-ON voltage and a 55Vac shutdown voltage, as well as a DC supply voltage range from 88Vdc to 375Vdc. The ML50.111 is housed in a PC / ABS blend, measuring 45mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, has a rated power of 50W, and provides an adjustable output voltage from 24Vdc to 28Vdc with a 400mV turn-ON overshoot. Protection is ensured by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.885 at 230Vac input. Maximum current consumption is 17A at 120Vac input and 35A peak at 230Vac input, with power dissipation/losses at 6.8W and a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. The output stage capacitance is 1600µF.

Puls

2909575

Primary-switched power supply unit, QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 1.3 A

Phoenix Contact

2909576

Primary-switched power supply unit, QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A

Phoenix Contact

CP20.241-V1

PULS CP20.241-V1 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 48mm and dimensions of W48mm x H124mm x D127mm. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.956 at 230Vac input, 0.942 at 120Vac input, and 0.936 at 100Vac input. The CP20.241-V1 offers a 450ms start-up delay and rise times of 145ms and 160ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 22.1W and 29.6W under full output load for 230Vac and 120Vac inputs, respectively. The output stage capacitance is 8500µF. Electrical durability spans from 31,000 to 488,000 hours under various conditions. The ripple is 50mVpp. This AC/DC power supply unit features a 20% power reserve, remote shutdown, ATEX approval, and a DC-OK relay contact output. Connection is made via screw-clamp connections. It supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 20A at 24Vdc, and offers a rated power of 480W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 500mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input.

Puls

CP20.241-S2

PULS CP20.241-S2 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It has a net width of 48 mm and operates within an ambient air temperature range of -25 to +70°C. The unit exhibits a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.956 at 230Vac input, 0.942 at 120Vac input, and 0.936 at 100Vac input. The dimensions of the CP20.241-S2 are W48mm x H124mm x D127mm. It includes a 450ms start-up delay for 100-230Vac input, with rise times of 145ms and 160ms under specified conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and supports series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 22.1 W at full output load with 230Vac input and 29.6 W with 120Vac input. The output stage capacitance is 8500 µF. Electrical durability spans from 31,000 to 488,000 hours under various conditions. Ripple is maintained at 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the CP-series, is designed with a 20% power reserve and includes a DC-OK relay contact output. It features push-in spring connections for ease of installation. The supply voltage ranges from 88Vdc to 180Vdc for DC and 85Vac to 264Vac for AC, with a rated current of 20A at 24Vdc. It is suitable for single-phase (1AC) or DC networks, offering a rated power of 480W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 500mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input.

Puls
