AC/DC Power Supplies

SL10.305

Power Supply, 240W, 380-480VAC 3PH, 48-52VDC, 5-4.6A

Puls

SL10.300

Power Supply, 240W, 380-480VAC 3PH, 24-28VDC, 10-8.6A

Puls

ML60.121

PULS ML60.121 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 4.5A at 12Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc (with nominal values from 100Vdc to 250Vdc), making it versatile for various electrical environments. The ML60.121 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend for durability. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 54W and an adjustable output voltage range from 12Vdc to 15Vdc, with a 200mV turn-ON overshoot. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.872 at 230Vac input, 0.853 at 120Vac input, and 0.835 at 100Vac input. Current consumption peaks at 16A max inrush (at 120Vac input) and 32A peak max inrush (at 230Vac input), with a 90-120ms start-up delay and a 40-50ms/90-110ms rise time under nominal input conditions. Power dissipation/losses are calculated at 7.9 W, with an electrical durability of 56,000 hours at +40°C. The output stage ripple is 50mVpp (20Hz to 20MHz; 50Ω), and the capacitance at the output stage is 3000µF.

Puls

CT10.241

PULS CT10.241 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 62 mm. The unit consumes 0.6A with a 3 x 480Vac input and 0.7A with a 3 x 400Vac input for full 24Vdc output, featuring a peak inrush current of 10A for both input conditions. It boasts an efficiency of 0.929 for 3x480Vac input and 0.928 for 3x400Vac input. The dimensions are W62mm x H124mm x D117mm. It includes a 90ms start-up delay and a rise time of 40ms under nominal input with a constant full current load and 0mF load capacitance, extending to 85ms with 10mF load capacitance. The power supply unit is equipped with protection functions including output overvoltage protection and an active input inrush current limiter, supporting overload/short-circuit conditions with a continuous current of max. 23A. It allows for series/parallel operation to increase output power, with a back-feeding load resistance up to 35V. Power dissipation/losses are 18.3 W for 3x480Vac input and 18.6 W for 3x400Vac input, with an output stage capacitance of 6500 µF. Electrical durability ranges from 36,000 to 410,000 hours across various conditions. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit, part of the CT-series, is designed with a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and supports a supply voltage of 323Vac-576Vac (wide range; 3-phase input) with a rated current of 12A at 24Vdc (-25...+45°C) and 7.5A at 24Vdc (-25...+70°C). The output voltage is adjustable between 24Vdc and 28Vdc, with a hold time of 54ms at 3x480Vac input and 34ms at 3x400Vac input.

Puls

CS10.241

PULS CS10.241 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a single-phase network. It operates within an ambient air temperature range of -25 to +70°C and supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac with auto-selection, featuring an 80Vac turn-ON voltage and a 75Vac shutdown voltage. The unit provides an adjustable output voltage of 24Vdc-28Vdc, with a rated current of 12A at an ambient temperature of less than 45°C and 10A at less than 60°C for 24Vdc, and slightly different ratings for 28Vdc. It has a rated power of 288W at less than 45°C ambient temperature and 240W at less than 60°C. The CS10.241 exhibits a current consumption of 2.23A at 230Vac input for full 24Vdc output, with varying consumption rates at 120Vac and 100Vac inputs, and a peak inrush current of 10A across all input voltages. It features an efficiency of up to 0.916 depending on the input voltage, with dimensions of W60mm x H124mm x D117mm. The unit includes a time delay of 850ms for start-up and offers protection functions such as output overvoltage protection and overload/short-circuit current protection. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. The power dissipation/losses are specified for different input conditions, and the electrical durability varies with operating conditions, reaching up to 334000 hours at 25°C with a 5A output at 230Vac input. The output stage capacitance is 7000µF, and the ripple is maintained at 50mVpp. Connection is facilitated through screw-clamp connections, and the design includes a 20% power reserve with a DC-OK relay contact output.

Puls

CP10.481

PULS CP10.481 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It features a net width of 39 mm and operates within an ambient air temperature range of -25 to +70°C. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.955 at 230Vac input, 0.938 at 120Vac input, and 0.93 at 100Vac input. The dimensions of the CP10.481 are W39mm x H124mm x D117mm. It includes a time delay of 240-300ms for start-up and a rise time of 63ms under nominal input with a constant full current load and 0mF load capacitance, extending to 210ms with 5mF load capacitance. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and supports series/parallel operation for increased output voltages or power, as well as 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 12.3W at full output load with 230Vac input and 17.2W with 120Vac input. The output stage capacitance is 960 µF. Electrical durability is rated at various hours depending on the operating conditions, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This AC/DC power supply unit, part of the CP-series, includes ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated through screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific turn-on and shutdown voltages. The rated current is 5.4A at 48Vdc with a derating above 60°C. It is suitable for single-phase (1AC) or DC networks, offering a rated power of 259W and an adjustable output voltage of 48Vdc-56Vdc. The hold time is 34ms at 120/230Vac input.

Puls

CP10.241-S1

PULS CP10.241-S1 is a DIN rail mounting power supply unit housed in aluminium, designed to operate within an ambient air temperature range of -25 to +70°C. It consumes 1.13A with a 230Vac input for full output, 2.15A with a 120Vac input, 2.6A with a 100Vac input, and 2.35A with a 110Vdc input for a 24Vdc / 10A output, featuring a peak max. inrush of 11A at 230Vac input and 7A at 120Vac input. This unit offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. Its dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input with a full constant current load and 0mF load capacitance, extending to 160ms with 10mF load capacitance. It includes protection functions such as output overvoltage protection, overload/short-circuit current protection, and over-temperature protection with automatic restart. The unit supports series/parallel operation for increased output voltages or power, and redundancy for higher system availability, and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input with a full output load. The output stage capacitance is 4400µF. Electrical durability is rated at various hours across different conditions, with a ripple of 50mVpp at 20Hz to 20MHz. This AC/DC power supply unit offers a 20% power reserve, is part of the CP-series, and features ATEX approval, DC-OK relay contact output, and spring-clamp connections. It accepts a supply voltage of 88Vdc-180Vdc and 85Vac-264Vac, with specific tolerances for overvoltage and shutdown voltages, and provides a rated current of 12A at 48Vdc in temperatures up to +45°C, adjusting for higher temperatures. The rated power varies from 288W at -25 to +45°C to 180W at +70°C, with the output voltage adjustable between 24Vdc and 28Vdc, and a hold time of 37ms at 120/230Vac input.

Puls

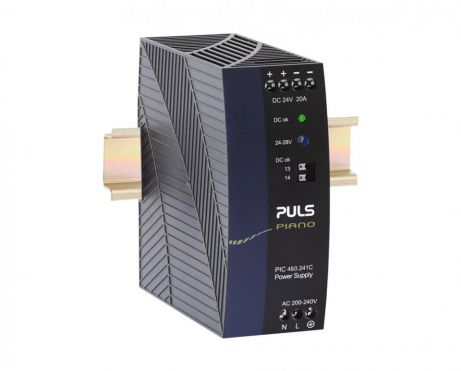

PIC480.241C

Power Supply, 480W, AC 200-240V input, 1 phase, 24-28Vdc output, 20A, DC-OK relay contact

Puls

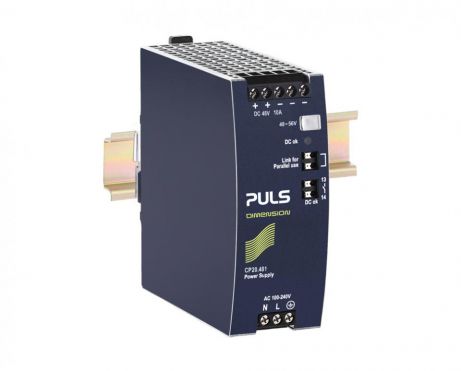

CP20.481

PULS CP20.481 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 48mm. The unit features a current consumption of 5.5A peak max. inrush at 230Vac input and 12A peak max. inrush at 120Vac input. Its efficiency rates are 0.963 at 230Vac input, 0.95 at 120Vac input, and 0.944 at 100Vac input. The dimensions of the CP20.481 are W48mm x H124mm x D127mm. It has a 450ms start-up delay and a rise time of 120ms under nominal input with a constant full current load and 0mF load capacitance, and 170ms with 10mF load capacitance. The unit includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 18.4W at 230Vac input and 25.1W at 120Vac input with full output load. The output stage capacitance is 2500µF. Electrical durability varies with conditions, reaching up to 509000 hours at 25°C and 5A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and supports a supply voltage range of 88Vdc-180Vdc and 85Vac-264Vac, with a rated current of 10A at 48Vdc, and a rated power of 480W. The output voltage is adjustable between 48Vdc and 56Vdc, with a 500mV turn-ON overshoot and a hold time of 32ms at 120/230Vac input. It is suitable for single-phase (1AC) or DC networks.

Puls

SL10.106

Power Supply, 240W, 100-120 / 200-240VAC 1PH, 48-56VDC, 5-4.3A with PFC

Puls

PIC480.241D

PULS PIC480.241D is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion capabilities. It operates within an ambient air temperature range of -25 to +70°C and includes a DC-OK relay contact output for monitoring purposes. The unit provides a rated current of 10A at 48Vdc within a temperature range of -25 to +55°C, and 6.3A at 48Vdc at +70°C, with screw-clamp connections for installation. It supports a supply voltage range of 90Vac-264Vac across various nominal voltages (100Vac to 240Vac) at 47-63Hz, with specific input overvoltage and shutdown voltage parameters. The PIC-series unit measures 59mm in width, 124mm in height, and 127mm in depth, with an IP20 degree of protection and an aluminium housing. Designed for single-phase networks, it offers a rated power of 480W at -25 to +55°C, which derates linearly to 302.4W at +70°C. The output voltage is adjustable between 48Vdc and 56Vdc, with protection functions against overvoltage and overload/short-circuit conditions. It allows for series or parallel operation for increased output ampacity or redundancy, with a high efficiency of up to 0.957 at 230Vac input. The unit's current consumption, time delay, hold time, power dissipation/losses, electrical durability, ripple, and capacitance are specified to ensure optimal performance under various conditions.

Puls

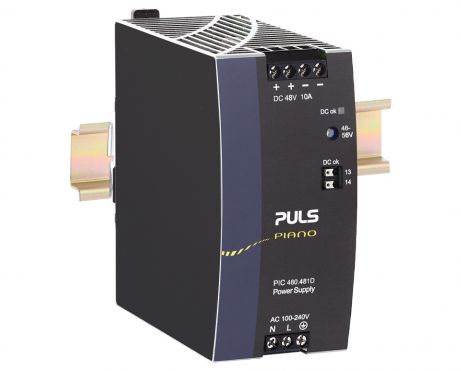

PIC480.481D

Power Supply, 480W, AC 100-240V input, 1 phase, 48-56Vdc output, 10A, DC-OK relay contact

Puls

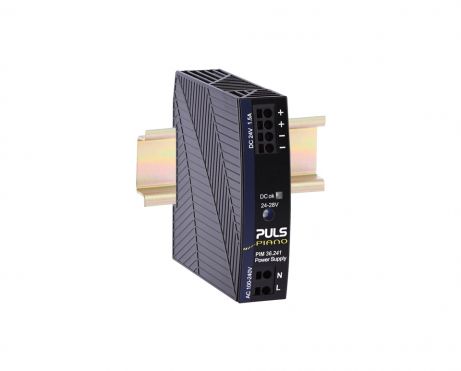

PIM36.241

PULS PIM36.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion capabilities. It operates within an ambient air temperature range of -10 to +60°C with linear derating up to +70°C. The unit is equipped with a NEC Class 2 DC-OK relay contact output and provides a rated current of 5A at 12Vdc within the -10 to +60°C range and 3.8A at 12Vdc at +70°C. Connection is facilitated through push-in spring connections. The supply voltage (AC) spans from 90Vac to 264Vac for nominal inputs like 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz, with an input overvoltage tolerance of 264-300Vac for up to 500ms, a turn-ON voltage of 75Vac, and a shutdown voltage of 54Vac. This part of the PIM-series measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in polycarbonate (PC). It supports a single-phase (1AC) network, has a net width of 36mm, and offers a rated power of 60W at -10 to +60°C, which derates linearly to 45.6W at +70°C. The output voltage (DC) is adjustable between 12Vdc and 15Vdc, with protection functions including output overvoltage protection and overload/short-circuit protection. Efficiency rates are 0.907 at 230Vac input and 0.902 at 120Vac input. Current consumption is 0.6A at 230Vac input (full output), 1A at 120Vac input (full output), and 1.15A at 100Vac input (full output), with a peak inrush of 44A at 230Vac input and 18A at 120Vac input. The unit has a start-up delay of 50-60ms, a rise time of 18ms max at nominal input with full constant current load and 0mF load capacitance, and a hold time of 107ms at 230Vac input. Power dissipation/losses are 6.2W at 230Vac input and 6.5W at 120Vac input under full output load. Electrical durability is noted at various conditions, with the highest being 724000 hours at 25°C, 2.5A, 1AC 230Vac input. Ripple is specified at 100mVpp (20Hz...20MHz; 50Ω), and the output stage capacitance is 2200µF.

Puls

PIM60.121

PULS PIM60.121 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C, and features a NEC Class 2 DC-OK relay contact output. The unit provides a rated current of 2.5A at 24Vdc within -10 to +60°C and 1.9A at 24Vdc at +70°C, utilizing screw-clamp connections. It supports a supply voltage range of 90Vac-264Vac across various nominal voltages and frequencies, with specific input overvoltage and turn-on/shutdown voltages detailed. The PIM-series part measures W36mm x H90mm x D91mm, has an IP20 protection degree, and is housed in polycarbonate. Designed for single-phase networks, it offers a rated power of 60W at -10 to +60°C and 45.6W at +70°C, with an adjustable output voltage of 24Vdc-28Vdc. Protection functions include output overvoltage and overload/short-circuit protection, with specified current limits and conditions for back-feeding loads. The unit's efficiency rates are 0.918 and 0.907 for 230Vac and 120Vac inputs, respectively, with detailed current consumption, inrush peaks, time delay, hold time, power dissipation/losses, electrical durability, ripple, and capacitance specifications.

Puls

PIM60.125

PULS PIM60.125 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C with linear derating up to +70°C. This unit features a NEC Class 2 DC-OK relay contact output and provides a rated current of 2.5A at 24Vdc within -10 to +60°C and 1.9A at 24Vdc at +70°C. It offers push-in spring connections for ease of installation. The supply voltage (AC) ranges from 90Vac to 264Vac across various nominal voltages and frequencies, with specific input overvoltage and shutdown voltage parameters. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. Designed for single-phase (1AC) networks, it has a net width of 36 mm and delivers a rated power of 60W at -10 to +60°C, which derates linearly to 45.6W at +70°C. The output voltage (DC) is adjustable between 24Vdc and 28Vdc, with specific protection functions against overvoltage and overload/short-circuit conditions. It does not support series or parallel operation and is resistant to back-feeding loads. The efficiency rates are 0.918 and 0.907 for 230Vac and 120Vac inputs, respectively. Current consumption varies with input voltage, and the unit exhibits specific start-up delay, rise time, and hold time characteristics. Power dissipation/losses are detailed for different input conditions, and the electrical durability is specified across various operational conditions. The ripple is noted at 100mVpp, and the output stage capacitance is 900 µF.

Puls

PIM60.241

PULS PIM60.241 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C. The unit features a DC-OK relay contact output and provides a rated current of 3.8A at 24Vdc within -10 to +60°C and 2.8A at 24Vdc at +70°C. It is equipped with push-in spring connections for connectivity and supports a supply voltage range of 90Vac-264Vac across various nominal voltages from 100Vac to 240Vac at 47-63Hz, with specific input overvoltage and turn-on/shutdown voltage specifications. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. Designed for single-phase network operation, it has a net width of 36 mm and offers a rated power of 90W at -10 to +60°C, with a linear derating to 67.2W at +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, featuring protection functions against overvoltage and overload/short-circuit conditions. It showcases an efficiency of 0.938 at 230Vac input and 0.921 at 120Vac input, with specific current consumption rates under various conditions. The unit has a 50ms start-up delay, specified rise times, and hold times at different input voltages, along with power dissipation/losses and electrical durability ratings under various conditions. The ripple is noted at 100mVpp, and the output stage capacitance is 1600 µF.

Puls

PIM60.245

PULS PIM60.245 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C with linear derating up to +70°C. The design includes a NEC Class 2 DC-OK relay contact output. It provides a rated current of 5A at 12Vdc from -10 to +60°C and 3.8A at 12Vdc at +70°C, utilizing screw-clamp connections. The supply voltage (AC) ranges from 90Vac to 264Vac for various nominal voltages and frequencies, with specific input overvoltage and turn-on/shutdown voltages detailed. Part of the PIM-series, it measures W36mm x H90mm x D91mm and has an IP20 degree of protection with a polycarbonate (PC) housing. Designed for single-phase networks, it offers a rated power of 60W at -10 to +60°C and 45.6W at +70°C, with an adjustable DC output voltage of 12Vdc to 15Vdc. Protection functions include output overvoltage and overload/short-circuit current protection, with specific resistance and current values provided. The unit is resistant to back-feeding loads up to 16V. Efficiency rates are noted for 230Vac and 120Vac inputs, alongside current consumption details for various input voltages and inrush current peaks. Time delay for start-up and rise, hold time, power dissipation/losses, and electrical durability at different conditions and temperatures are specified. Ripple and capacitance values are also provided, highlighting the unit's electrical characteristics.

Puls

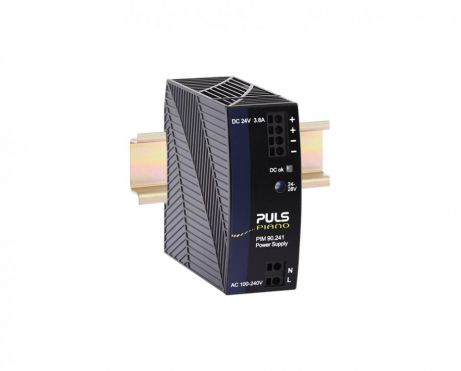

PIM90.241

PULS PIM90.241 is a power supply unit designed for AC/DC conversion with a DIN rail mounting option. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C. This unit features a DC-OK relay contact output and provides a rated current of 3.8A at 24Vdc within the -10 to +60°C range, and 2.8A at 24Vdc at +70°C. It utilizes screw-clamp connections for secure installation and supports a supply voltage range of 90Vac to 264Vac across various nominal values (100Vac to 240Vac) at 47-63Hz, with an input overvoltage tolerance of 264-300Vac for up to 500ms, a turn-ON voltage of 55Vac, and a shutdown voltage of 47Vac. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. It is designed for single-phase (1AC) networks, with a net width of 36mm. The rated power is 90W at temperatures between -10 and +60°C, and 67.2W at +70°C, with output voltage adjustable between 24Vdc and 28Vdc. Protection features include output overvoltage protection and overload/short-circuit protection. The unit is not suitable for series or parallel operation and can handle back-feeding loads up to 35V without malfunctioning. It achieves an efficiency of 0.938 at 230Vac input and 0.921 at 120Vac input, with a current consumption of 0.95A at 230Vac input at full output. The start-up delay is 50ms for 100-230Vac input, with a hold time of 119ms at 230Vac input. Power dissipation is 6W at 230Vac input with a full output load. Electrical durability is rated at up to 815000 hours at 25°C with 1.9A load and 1AC 230Vac input. The output stage capacitance is 1600µF, and the ripple is maintained at 100mVpp across a 20Hz to 20MHz range with a 50Ω load.

Puls

PIM90.245

Banner Engineering PIM90.245 is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode probe tip for individual fiber in-line sensing. This sensor is part of the Plastic fiber series and is characterized by a cylindrical (threaded) probe tip with a diameter of 1.5mm at the end and a 1mm fiber core. It is constructed with a stainless steel sensing end and a plastic fiber with a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various industrial environments. The PIM90.245 has a length of 6ft / 2m and is capable of operating in ambient air temperatures up to +70°C, making it suitable for a wide range of applications requiring precise fiber optic sensing.

Puls

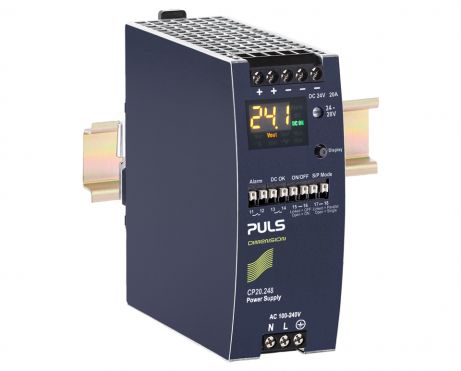

CP20.248

Power Supply, 480W, AC 100-240V | DC 110-150V input, 1 phase, 24-28Vdc output, 20A, monitoring display

Puls
