AC/DC Power Supplies

SL20.301

Power Supply, 480W, 480VAC 3PH, 24-28VDC, 20-18A

Puls

SL20.300

Power Supply, 480W, 380-400VAC 3PH, 24-28VDC, 20-18A

Puls

ML95.100

PULS ML95.100 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit offers a rated current of 3.9A at 24Vdc and features spring-clamp connections for ease of installation. It supports a wide supply voltage range, accepting AC inputs from 85Vac to 132Vac or 184Vac to 264Vac (auto-select based on 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac nominal; 47-63Hz) and DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML95.100 is housed in a PC / ABS blend, measuring 73mm in width, 75mm in height, and 103mm in depth. It is suitable for single-phase (1AC) or DC networks, with a rated power of 95W and an adjustable output voltage range of 24Vdc to 28Vdc. It includes protection functions such as NTC for input inrush current limiting, achieves an efficiency of 0.9 with a 230Vac input, and has a maximum inrush current consumption of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are rated at 10.5W, and it features a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

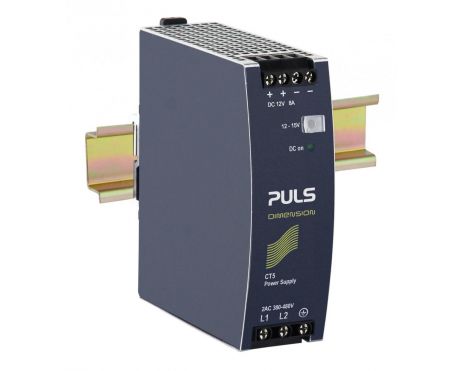

CT5.121

PULS CT5.121 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 40mm. The unit consumes 0.56A with a 480Vac input and 0.64A with a 400Vac input for a full 12Vdc output, with a peak inrush current of 10A for both input voltages. It features an efficiency of 0.858 at 480Vac input and 0.854 at 400Vac input. The dimensions are W40mm x H124mm x D117mm. It includes a 75ms start-up delay and a rise time of 50ms under nominal input with a constant full current load and 0mF load capacitance, extending to 85ms with 8mF load capacitance. The unit is equipped with protection functions including output overvoltage protection and an active input inrush current limiter, supporting overload/short-circuit conditions with a continuous current of max. 15A. It allows for series/parallel operation to increase output power, with a back-feeding load resistance up to 25V. Power dissipation losses are 15.9W and 16.4W for 480Vac and 400Vac inputs, respectively, under full output load. The output stage capacitance is 5200µF. Electrical durability ranges from 51,000 to 430,000 hours, depending on operating conditions. Ripple is maintained at 100mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the CT-series, features a DC-OK relay contact output and screw-clamp connections. It supports a wide supply voltage range of 323Vac to 576Vac, with various shutdown voltages based on load conditions. The rated current is 8A at 12Vdc within a -25 to +60°C range, adjusting with temperature and output voltage. The rated power is 96W, with an adjustable output voltage of 12Vdc to 15Vdc and minimal turn-on overshoot. Hold time is specified at 63ms and 43ms for 480Vac and 400Vac inputs, respectively.

Puls

SL20.115

Power Supply, 480W, 100-120 / 200-240VAC 1PH, 24-28VDC, 20-18A

Puls

SL20.113

Power Supply, 480W, 100-120 / 200-240VAC 1PH, 48-56VDC, 10-8.6A

Puls

SL20.112

Power Supply, 480W, 100-120 / 200-240VAC 1PH, 36-43VDC, 13.3-11.2A

Puls

SL20.111

Power Supply, 480W, 100-120 / 200-240VAC 1PH, 24-28VDC, 20-18A with PFC

Puls

ML70.100

PULS ML70.100 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3A at 24Vdc and features spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac for AC (with manual selection) and 213Vdc-377Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML70.100 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC / ABS blend for durability. It provides a rated power of 72W and an adjustable output voltage range of 24Vdc-28Vdc. Protection is ensured through an NTC for input inrush current limiting. The unit boasts an efficiency of 0.915 with a 230Vac input and has a maximum inrush current consumption of 26A at 120Vac input and 30A peak at 230Vac input. Power dissipation is calculated at 8.7W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

CT10.481

PULS CT10.481 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 62mm. The unit consumes 0.6A with a 3 x 480Vac input and 0.7A with a 3 x 400Vac input, both at full 48Vdc output, with a peak inrush current of 10A. It boasts an efficiency of 0.929 for 3x480Vac input and 0.928 for 3x400Vac input. The dimensions are W62mm x H124mm x D117mm. It includes a 90ms start-up delay, a 55ms rise time at nominal input with a constant full current load and 0mF load capacitance, and a 140ms rise time with 5mF load capacitance. The unit features output overvoltage protection, an active input inrush current limiter, and supports series/parallel operation for increased output power. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 18.3W for 3x480Vac input and 18.6W for 3x400Vac input at full output load. The output stage capacitance is 2400µF. Electrical durability ranges from 78,000 to 704,000 hours depending on the operating conditions. The ripple is 100mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit/converter offers a 20% power reserve and includes a DC-OK relay contact output. It features screw-clamp connections and supports a supply voltage of 323Vac-576Vac (wide range; 3-phase input) with a rated current of 6A at 48Vdc from -25 to +45°C and 3.75A at 48Vdc from -25 to +70°C. The output voltage is adjustable between 48Vdc and 56Vdc, with a hold time of 54ms at 3x480Vac input and 34ms at 3x400Vac input.

Puls

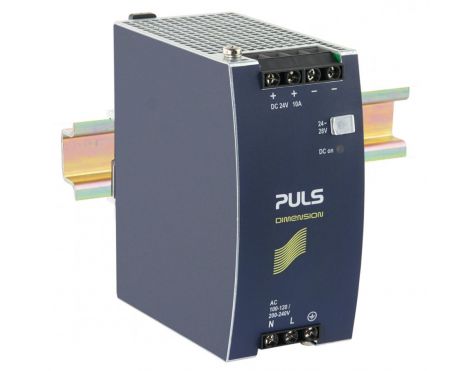

CS10.241-S1

PULS CS10.241-S1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports various current consumptions based on input voltage: 2.23A at 230Vac, 3.73A at 120Vac, and 4.34A at 100Vac, all for full 24Vdc output, with a peak inrush current of 10A across all input voltages. The unit boasts an efficiency of up to 0.916 at 230Vac input. Its dimensions are 60mm in width, 124mm in height, and 117mm in depth. The CS10.241-S1 features a start-up delay of 850ms and rise times of 35ms to 75ms depending on load capacitance. It includes protection functions such as output overvoltage protection and an active input inrush current limiter, alongside capabilities for series or parallel operation for redundancy. The power dissipation at full output load is 22W for 230Vac input and 23.7W for 120Vac input. The output stage capacitance is 7000µF, and electrical durability ranges from 34,000 to 334,000 hours depending on operating conditions. The ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the C-Line series, is designed with a 20% power reserve and features a DC-OK relay contact output and spring-clamp connections. It accepts a supply voltage of 85Vac-132Vac / 184Vac-264Vac with auto-selection and has a rated current of up to 12A at 24Vdc in environments below 45°C. The output voltage is adjustable between 24Vdc and 28Vdc, with minimal turn-on overshoot, and the hold time is 47ms at 230Vac input.

Puls

SL20.110

Power Supply, 480W, 100-120 / 200-240VAC 1PH, 24-28VDC, 20-18A

Puls

SL20.101

Power Supply, 480W, 200-240VAC 1PH, 24-28VDC, 20-18A with PFC

Puls

SL20.100

Power Supply, 480W, 200-240VAC 1PH, 24-28VDC, 20-18A

Puls

SL2.103

Power Supply, 40W, 100-120 / 200-240VAC 1PH, 12-15VDC., 3-2.7A

Puls

ML60.241

PULS ML60.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc for DC supply, accommodating single-phase (1AC) or DC networks. The ML60.241 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC/ABS blend for durability. It delivers a rated power of 60W with an adjustable output voltage range of 24Vdc to 28Vdc, featuring a 200mV turn-ON overshoot. Protection is provided by an NTC for input inrush current limiting. Efficiency rates vary by input voltage, achieving 0.897 at 230Vac, 0.878 at 120Vac, and 0.865 at 100Vac. It has a maximum inrush current consumption of 16A at 120Vac input and 32A peak at 230Vac input. The unit exhibits a 170ms start-up delay, with rise times of 50-60ms under nominal input and constant full current load without load capacitance, and 110-140ms with 2.5mF load capacitance. Power dissipation is noted at 6.9W, and it has an electrical durability of at least 128,000 hours at +40°C. Ripple is maintained at 50mVpp across 20Hz to 20MHz at 50Ω, with an output stage capacitance of 1600µF.

Puls

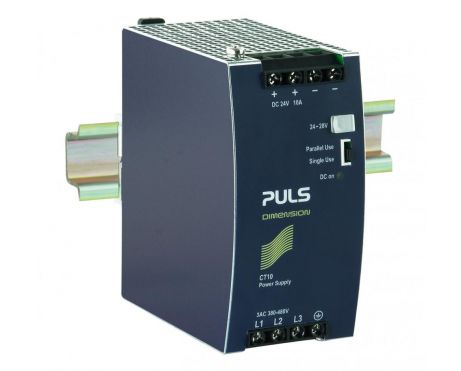

CT10.241-C1

PULS CT10.241-C1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a current consumption of 0.6A with a 3 x 480Vac input for full 24Vdc output, and 0.7A with a 3 x 400Vac input for full 24Vdc output, with a peak inrush current of 10A for both input conditions. The unit boasts an efficiency of 0.929 and 0.928 for 3x480Vac and 3x400Vac inputs respectively. It is designed to resist harsh environments with its conformal coated PCB. The dimensions are W62mm x H124mm x D117mm. It features a 90ms start-up delay, a 40ms rise time under nominal input with a constant full current load and 0mF load capacitance, and an 85ms rise time under the same conditions with 10mF load capacitance. The power supply unit includes protection functions such as output overvoltage protection and is capable of series/parallel operation for increased output power. It has a power dissipation/loss of 18.3W and 18.6W for 3x480Vac and 3x400Vac inputs respectively, with an output stage capacitance of 6500µF. The electrical durability ranges from 36,000 to 410,000 hours depending on the operating conditions. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit/converter offers a 20% power reserve and is part of the CT-series, featuring a conformal coating, 20% power reserve, and a DC-OK relay contact output. It utilizes screw-clamp connections and supports a supply voltage of 323Vac-576Vac with a wide range, 3-phase input. The rated current is 12A at 24Vdc from -25 to +45°C and 7.5A at 24Vdc from -25 to +70°C, with a rated power of 240W. The output voltage is adjustable between 24Vdc and 28Vdc, and the hold time is 54ms at 3x480Vac input and 34ms at 3x400Vac input.

Puls

SL2.100

Power Supply, 60W, 100-120 / 200-240VAC 1PH, 24VDC, 2.5A

Puls

SL10.309

Power Supply, 240W, 380-480VAC 3PH, 24-28VDC, 10-8.6A with Conformal Coating

Puls

ML60.122

PULS ML60.122 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit has a rated current of 4.5A at 12Vdc and utilizes screw-clamp connections for connectivity. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) and from 88Vdc to 375Vdc, featuring a turn-ON voltage of 75Vac and a shutdown voltage of 65Vac. The ML60.122 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It is compatible with single-phase (1AC) or DC networks, has a rated power of 54W, and offers an adjustable output voltage range of 12Vdc to 15Vdc with a 200mV turn-ON overshoot. The unit's protection functions include an active input inrush current limiter. Efficiency rates vary based on input voltage, with 0.876 at 230Vac, 0.858 at 120Vac, and 0.841 at 100Vac. It features a peak current consumption of 6A at 230Vac input, with specific time delays for start-up and rise times under different conditions. Power dissipation is noted at 7.6W, and the electrical durability is rated at a minimum of 56,000 hours at +40°C. The ripple is specified at 50mVpp across a 20Hz to 20MHz range with a 50Ω load, and the output stage capacitance is 3000µF.

Puls
