AC/DC Power Supplies

WDR-60-5

AC-DC Industrial DIN rail power supply; Output 5Vdc at 10A; metal case; Ultra wide input 180-550Vac for single and two phase mains network

MEAN WELL

HDR-15-48

AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 48VDC at 0.32A; Pass LPS

MEAN WELL

LRS-50-24

AC-DC Single output enclosed power supply; Universal AC input; Output 24Vdc at 2.2A; Up to 5G vibration; 1U low profile

MEAN WELL

HDR-30-48

AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 48VDC at 0.75A; Pass LPS

MEAN WELL

S8JX-P30024C

S8JXP Switch Mode Power Supply

Omron

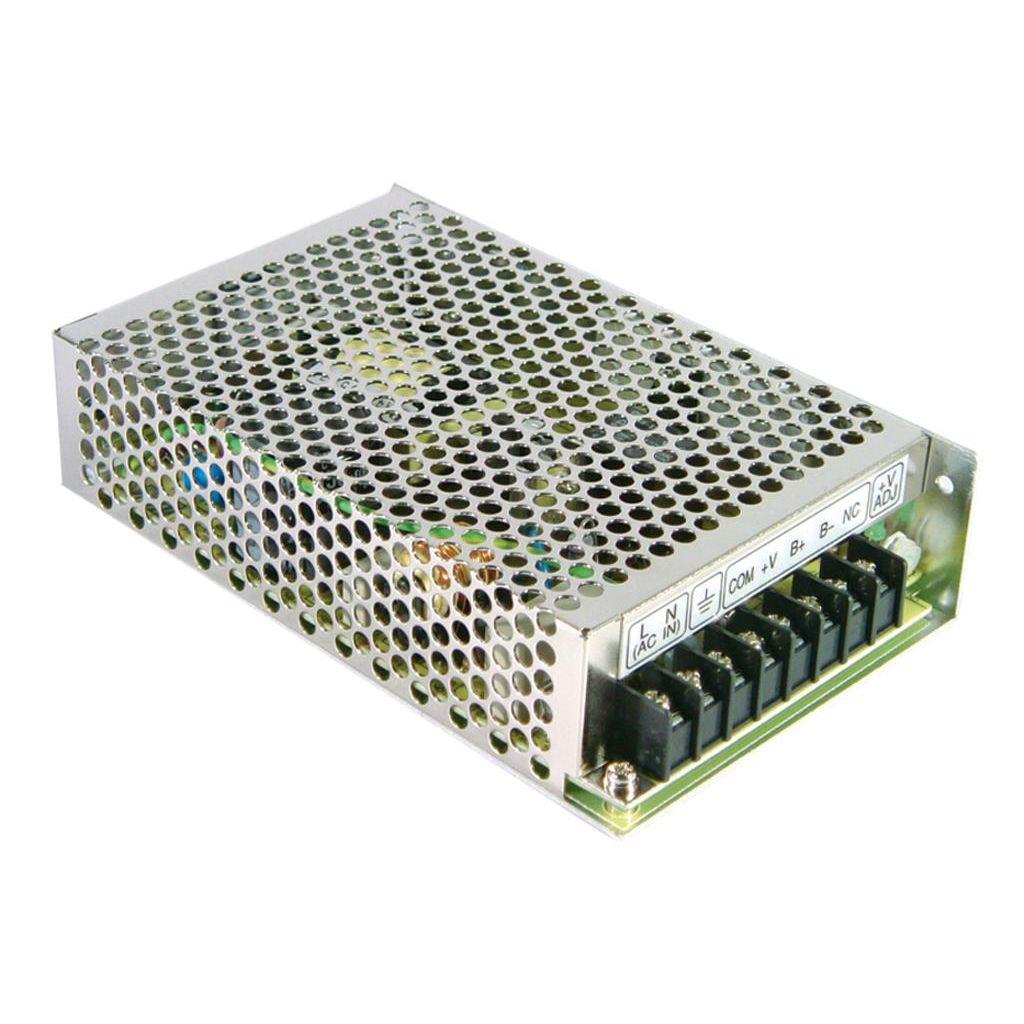

AD-55B

AC-DC Enclosed power supply with UPS function; Output 27.6Vdc at 2A +26.5Vdc at 0.16A

MEAN WELL

HDR-15-24

AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 24VDC at 0.63A; Pass LPS

MEAN WELL

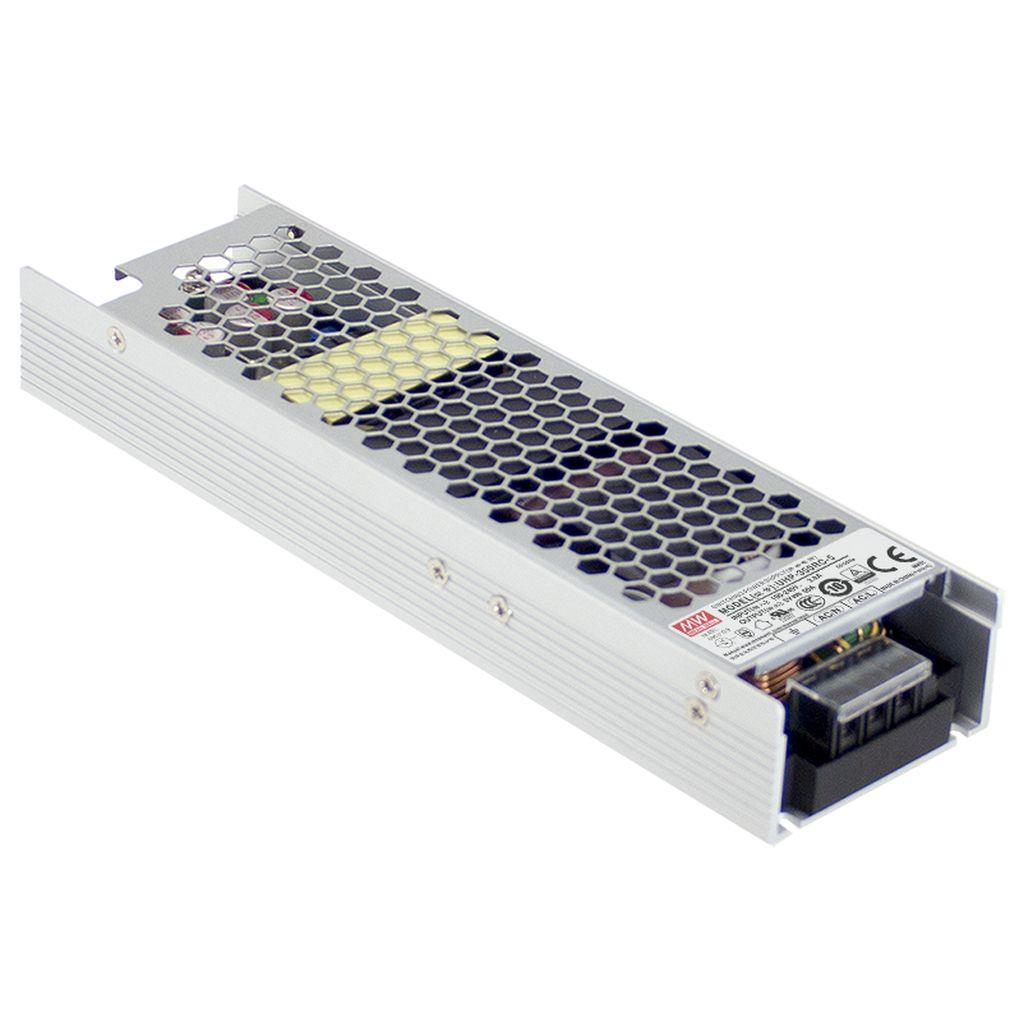

UHP-500-5

AC-DC Slim Single output enclosed power supply with PFC; Output 5VDC at 80A

MEAN WELL

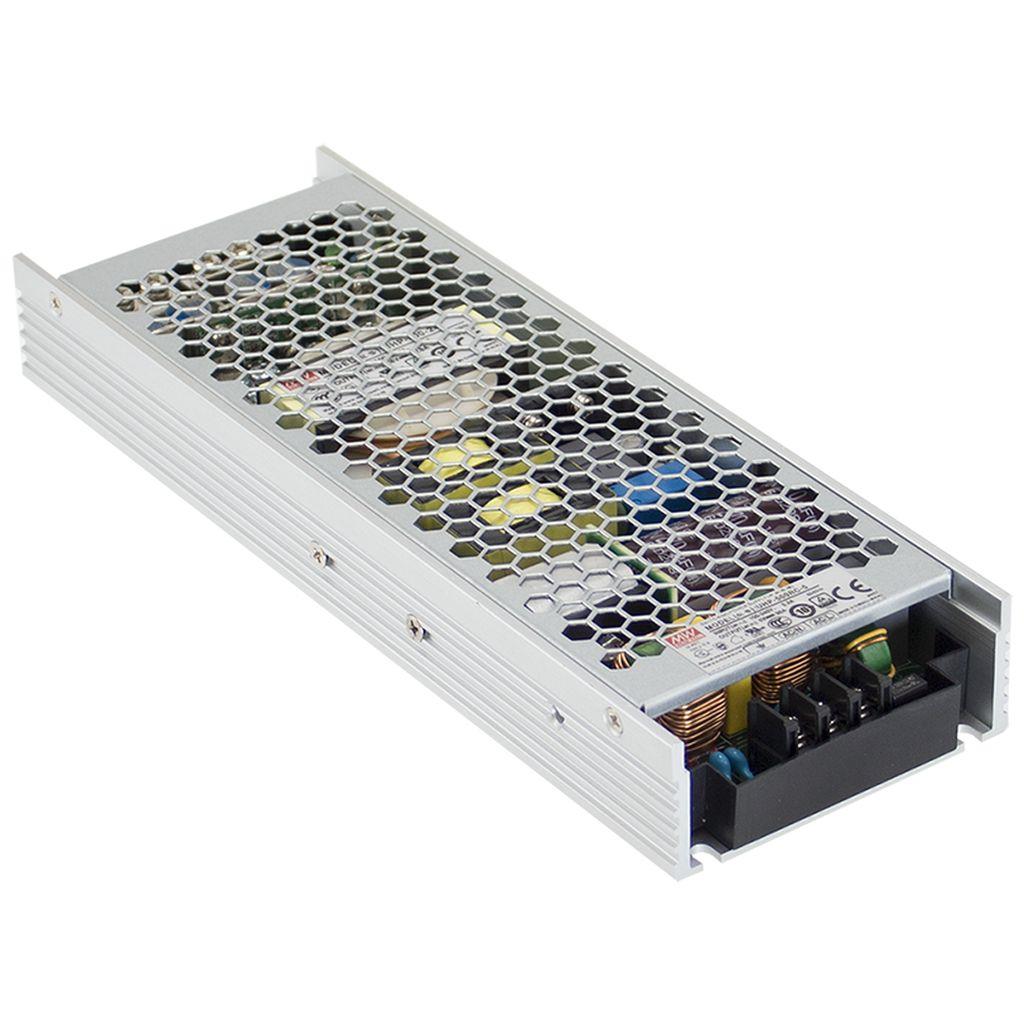

UHP-500R-36

AC-DC Slim Single output enclosed power supply with PFC; Output 36VDC at 13.9A; DC OK signal

MEAN WELL

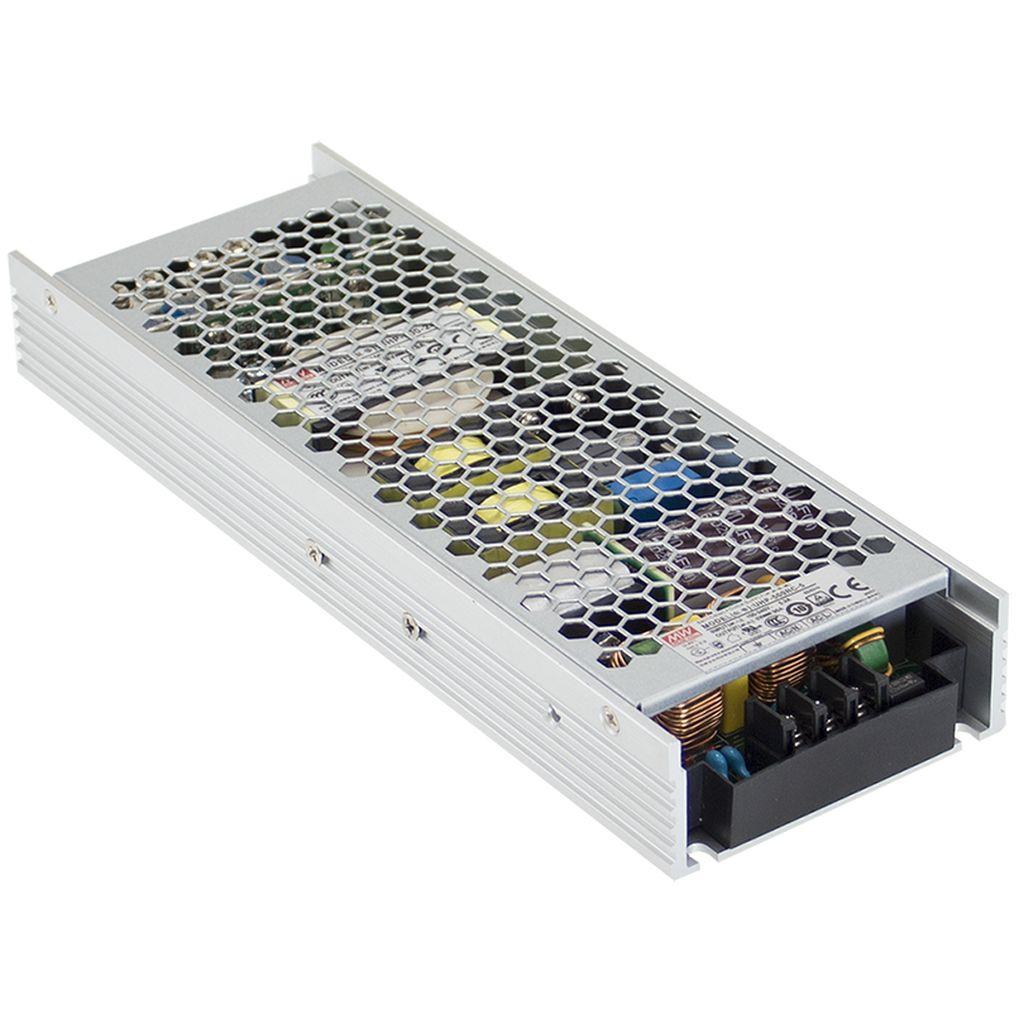

UHP-350R-5

AC-DC Slim Single output enclosed power supply with PFC; Output 5VDC at 60A; DC OK signal

MEAN WELL

ML30.241-70

ML30.241-70 Schmersal - 1-phase DIN rail power supplies; AC 100-240V Wide-range input; DC Output 24-28VDC / 1,3-1,1A / 30W; Efficiency up to 89,4%; Width only 22,5mm

Schmersal

FLEX9024B

Sprecher + Schuh FLEX9024B - Adel Flex Power Supply, Selectable Input 230/400-500V AC-24V DC, 5A, 2 Phase

Sprecher + Schuh

QS20.481

PULS QS20.481 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 10A at 48Vdc and 8.7A at 55Vdc, with a power derating from 12W at +60°C to +70°C. Connection is facilitated through spring-clamp connections. The supply voltage ranges from 85Vac to 264Vac for AC input and 88Vdc to 188Vdc for DC input, supporting various nominal voltages and featuring specific turn-on and shutdown voltages. Housed in an aluminium casing, it is suitable for single-phase (1AC) or DC networks, with dimensions of W82mm x H124mm x D127mm. The rated power is 480W, with a short-term capacity of 720W for up to 4 seconds. Output voltage is adjustable between 48Vdc and 55Vdc. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output power. Efficiency rates vary with input voltage, and the unit exhibits specific current consumption, time delay, hold time, power dissipation/losses, and electrical durability metrics. Ripple is maintained at 100mVpp, and the output stage capacitance is 3100 µF.

Puls

1075240

Primary-switched TRIO POWER power supply with Push-in connection for DIN rail mounting, input: 1,500 V DC, output: 24 V DC / 8 A

Phoenix Contact

1066716

Primary-switched power supply unit, QUINT POWER, Push-in connection, input: 12 V DC - 24 V DC, output: 24 V DC / 1.3 A

Phoenix Contact

FLEX50024B

Sprecher + Schuh FLEX50024B - Adel Flex Power Supply, Automatic Input 400-500V AC-24V DC, 25A, 3 Phase

Sprecher + Schuh

FLEX28024B

Sprecher + Schuh FLEX28024B - Adel Flex Power Supply, Selectable Input 230/400-500V AC-24V DC, 14A, 2 Phase

Sprecher + Schuh

QS20.361

PULS QS20.361 is a power supply unit designed for AC/DC conversion with a 50% power reserve, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features a DC-OK relay contact output for monitoring purposes. The unit provides a rated current of 13.3A at 36Vdc and 11.4A at 42Vdc, with spring-clamp connections facilitating secure and reliable connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, ensuring flexibility across different power networks. The QS20.361, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, housed in a durable aluminium casing. It delivers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds, and an adjustable output voltage between 36Vdc and 42Vdc. Protection features include output overvoltage protection and active input inrush current limiting, alongside capabilities for overload and short-circuit management. The unit is designed for both single-phase AC or DC networks and offers high efficiency rates up to 0.94 depending on the input voltage. It also allows for series or parallel operation to increase output power, with specific attention to maintaining uniform output voltage across paralleled units. The QS20.361 exhibits a low power dissipation, high electrical durability across various conditions, and minimal ripple, alongside a significant output capacitance of 8500µF, ensuring stable and consistent power supply performance.

Puls

CS3.241

PULS CS3.241 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 32mm and dimensions of W32mm x H124mm x D102mm. It features screw-clamp connections for secure installation and is capable of being powered by either a single-phase AC supply from 85Vac to 264Vac (with specific nominal voltages listed) or a DC supply from 88Vdc to 375Vdc. The CS3.241 delivers a rated current of 3.3A at 24Vdc and 2.7A at 28Vdc, with an adjustable output voltage range of 24Vdc to 28Vdc. It has a rated power of 80W and includes protection functions such as output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection. The unit supports series or parallel operation for redundancy, ensuring higher system availability. It also features a DC-OK relay contact output, indicating the operational status. The power supply's efficiency varies with input voltage, achieving up to 0.898 at 230Vac input. It has a start-up delay of 95ms and a rise time that varies depending on the input and load capacitance. The CS3.241 is designed for electrical durability, with operational lifespans detailed for various conditions, and includes a capacitance of 1450µF at the output stage.

Puls

CPS20.241-C1

PULS CPS20.241-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65mm. This unit consumes current at rates of 2.33A with a 230Vac input, 4.36A with a 120Vac input, and 5.25A with a 100Vac input for full 24Vdc output, and features a peak max. inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of 0.94 at 230Vac input, 0.927 at 120Vac input, and 0.92 at 100Vac input. The CPS20.241-C1 is IP20 rated, indicating protection against solid objects larger than 12mm but not against water. It is chemically resistant with a conformal coated PCB, suitable for harsh environments. The dimensions are W65mm x H124mm x D127mm. It has a start-up delay of 850ms and rise times of 85ms and 150ms under specified conditions. The unit provides output overvoltage protection, overload/short-circuit protection, and supports series/parallel operation for increased output power. It can handle back-feeding loads up to 35V without malfunctioning. Power dissipation/losses are 30.6W, and the output stage capacitance is 7000µF. Electrical durability varies with conditions, reaching up to 475000 hours. Ripple is maintained at 50mVpp. This AC/DC converter features a 20% power reserve, is part of the C-series, and includes ATEX approval conformal coating, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads, and provides a rated current of 20A at 24Vdc. Designed for single-phase networks, it offers a rated power of 576W under PowerBoost at ambient temperatures less than 45°C and 480W at less than 60°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot and a hold time of 26ms.

Puls
