AC/DC Power Supplies

1088851

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/100 W

Phoenix Contact

FLEX17024B

Sprecher + Schuh FLEX17024B - Adel Flex Power Supply, Selectable Input 230/400-500V AC-24V DC, 7.5A, 2 Phase

Sprecher + Schuh

FLEX9024A

Sprecher + Schuh FLEX9024A - Adel Flex Power Supply, Selectable Input 115/230V AC-24V DC, 5A, 1 Phase

Sprecher + Schuh

QS20.244

PULS QS20.244 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections for secure and efficient connectivity. It supports a supply voltage range of 180Vac to 264Vac, with specific nominal values including 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz. The QS20.244, part of the Q-series, measures 70mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for single-phase networks and offers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring protection functions against overvoltage, overload, and short-circuit conditions. It allows for series or parallel operation to increase output power, with a notable efficiency of 0.945 at 230Vac input. The unit's current consumption peaks at 52A max during inrush at 230Vac, with a start-up delay of 140ms, and offers a hold time of 46ms at 230Vac input. Power dissipation is calculated at 28.3W under full output load at 230Vac input. Its electrical durability spans up to 307,000 hours at 40°C with a 10A output. The QS20.244 also features a ripple of 100mVpp across a 20Hz to 20MHz range and an output stage capacitance of 8500µF.

Puls

2904374

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 5 V DC/25 W

Phoenix Contact

FLEX6024A

Sprecher + Schuh FLEX6024A - Adel Flex Power Supply, Automatic Input 115-230V AC-24V DC, 2A, 1 Phase

Sprecher + Schuh

FLEX50024A

Sprecher + Schuh FLEX50024A - Adel Flex Power Supply, Bridge only jumper 115/230V AC-24V DC, 25A, 1 Phase

Sprecher + Schuh

QS20.241-C1

PULS QS20.241-C1 is a power supply unit designed for AC/DC conversion with a 50% power reserve, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features a conformal coating for enhanced durability in harsh environments. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections for secure attachment. It supports a supply voltage range of 85Vac-264Vac across various nominal values and 88Vdc-188Vdc for DC input, with specific turn-on and shutdown voltages detailed for both AC and DC inputs. The QS20.241-C1, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for use in single-phase or DC networks, offering a rated power of 480W and a short-term power of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power, with specific conditions for back-feeding loads. Efficiency rates vary with input voltage, and the product features detailed specifications for current consumption, time delay, hold time, power dissipation/losses, electrical durability, ripple, and output stage capacitance.

Puls

ML15.121

PULS ML15.121 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified as NEC Class 2. This unit provides a rated current of 1.3A at 12Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values listed) and from 88Vdc to 375Vdc, accommodating both single-phase (1AC) or DC networks. The ML15.121 measures 22.5mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend for durability. It delivers an adjustable output voltage between 12Vdc and 15Vdc, with a rated power of 15W. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency rate of up to 0.83 depending on the input voltage. It has a maximum inrush current consumption of 31A (at 230Vac input), a start-up delay of 780ms, and a rise time of 12ms. Power dissipation is calculated at 3.2W, with an electrical durability of 125,000 hours at +40°C. The output stage features a ripple of 75mVpp and a capacitance of 1650µF.

Puls

1088850

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 12 V DC/55 W

Phoenix Contact

FLEX28024A

Sprecher + Schuh FLEX28024A - Adel Flex Power Supply, Selectable Input 115/230V AC-24V DC, 14A, 1 Phase

Sprecher + Schuh

FLEX17024A

Sprecher + Schuh FLEX17024A - Adel Flex Power Supply, Selectable Input 115/230V AC-24V DC, 7.5A, 1 Phase

Sprecher + Schuh

QS20.241-A1

PULS QS20.241-A1 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and boasts ATEX approval and conformal coating for enhanced durability in harsh environments. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections facilitating secure and reliable connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, ensuring flexibility across different power networks. The QS20.241-A1, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, with an aluminium housing that contributes to its robustness. It delivers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds, and an adjustable output voltage between 24Vdc and 28Vdc. Protection features include output overvoltage protection and active input inrush current limiting, alongside capabilities for overload, short-circuit protection, and series or parallel operation for increased output power. The unit demonstrates high efficiency rates up to 93.9% depending on the input voltage and is designed for single-phase or DC networks. Electrical durability is rated up to 200,000 hours at 25°C with a 20A output, and the power supply unit includes a comprehensive protection function suite to ensure stable operation under various conditions.

Puls

SP-240-48

AC-DC Enclosed power supply; Output 48Vdc at 5A; PFC; forced air cooling; SP-240-48 is succeeded by RSP-200-48.

MEAN WELL

2902995

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 48 V DC/60 W

Phoenix Contact

2902996

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 48 V DC/100 W

Phoenix Contact

DRP-240-48

AC-DC Industrial DIN rail power supply; Output 48Vdc at 5A; metal case; DRP-240-48 is succeeded by NDR-240-48.

MEAN WELL

ML15.051

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.

Puls

CS10.481

PULS CS10.481 is a DIN rail mounting power supply unit encased in an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 60mm and dimensions of W60mm x H124mm x D117mm. It features a current consumption of 2.23A with a 230Vac input for full 48Vdc output, 3.73A with a 120Vac input, and 4.34A with a 100Vac input, alongside a peak max. inrush of 10A across all input voltages. The efficiency rates are 0.916 for 230Vac input, 0.91 for 120Vac input, and 0.907 for 100Vac input. The CS10.481 has a start-up delay of 850ms and rise times of 51ms and 96ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit current protection, with capabilities for series/parallel operation for redundancy. The unit is resistant to back-feeding loads up to 63V. Power dissipation/losses are 22W for 230Vac input and 23.7W for 120Vac input, with an output stage capacitance of 3100µF. Electrical durability varies with conditions, reaching up to 346000 hours. The ripple is specified at 100mVpp. This AC/DC power supply unit, part of the C-Line series, offers a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac with auto select and has a rated current of 6A at 48Vdc for ambient temperatures less than 45°C. The output voltage is adjustable between 48Vdc and 52Vdc, with a hold time of 47ms at 230Vac input.

Puls

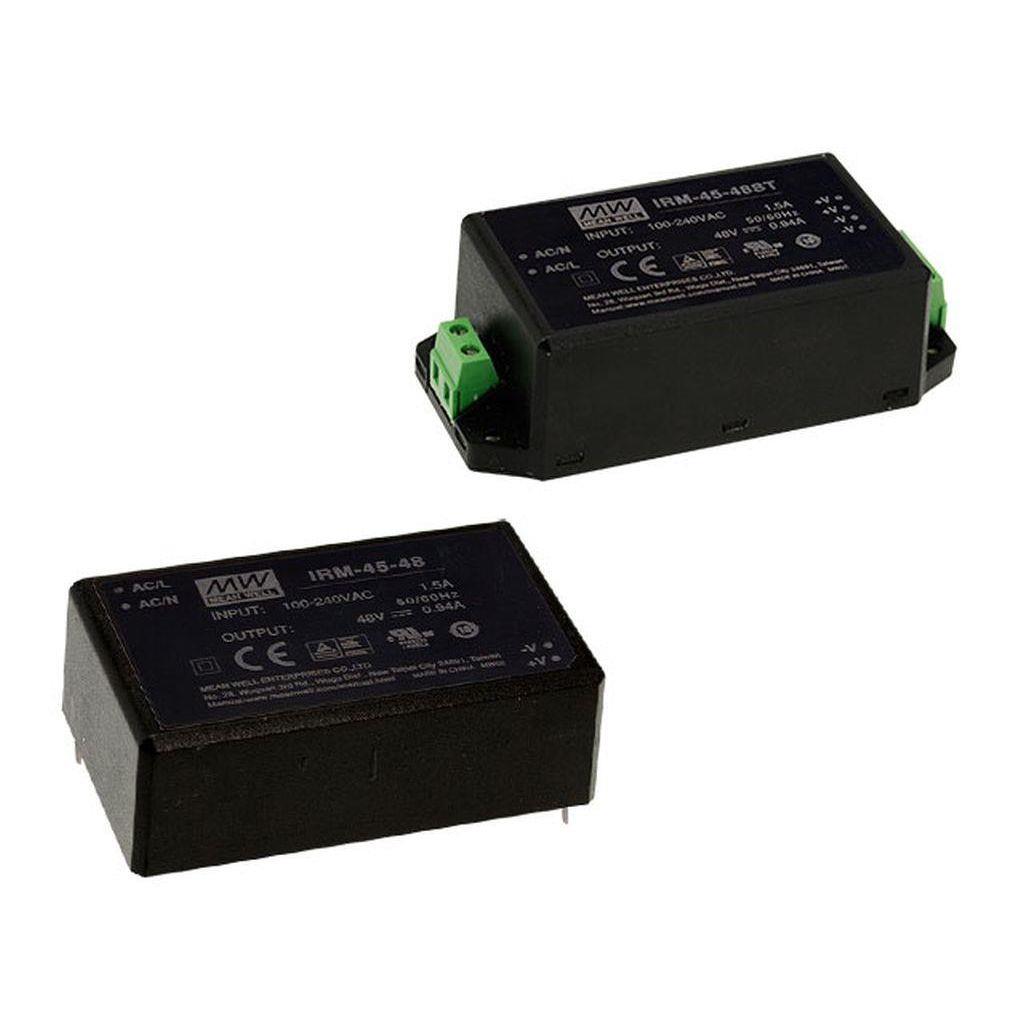

IRM-45-48ST

AC-DC Single output Encapsulated power supply; Output 48Vdc at 0.94A; Screw Terminal style; miniature size

MEAN WELL
