K30ABT2YYHQ Banner Electronic Components

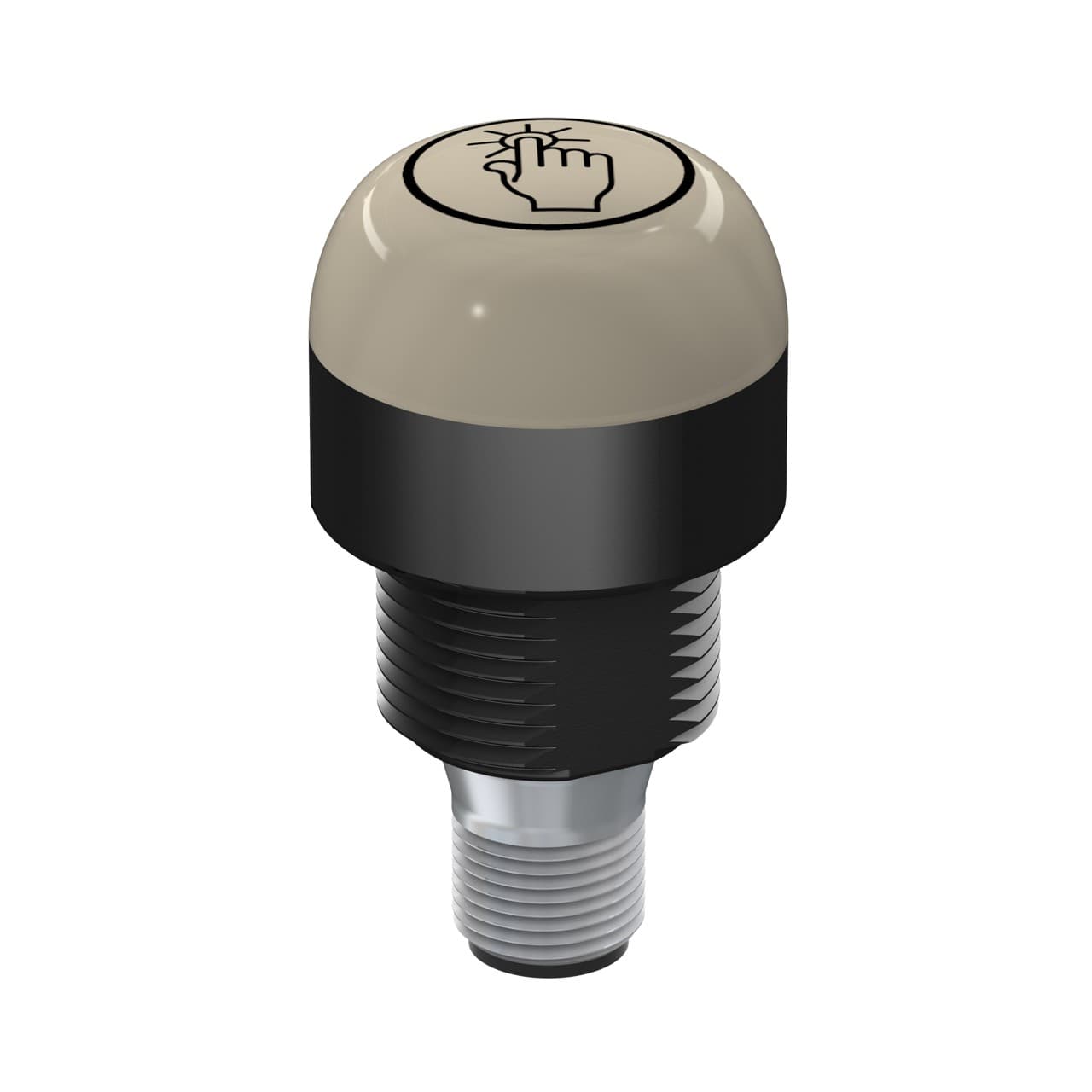

Banner K30ABT2YYHQ Banner Engineering K30ABT2YYHQ is an illuminated capacitive touch-sensitive button designed with a Gen.2 1-color yellow LED illumination that indicates both non-activated and activated states. It features a black housing with a dome-shaped window made from diffused polycarbonate and a base also constructed from polycarbonate. This part is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K30ABT2YYHQ offers versatile mounting options, including surface or base pole mounting with an M22 thread, and has a 30mm or approximately 1-3/16" dome diameter. It is designed to operate within an ambient air temperature range of -40°C to +50°C and is rated for IP67 and IP69K degrees of protection, ensuring durability in various environmental conditions. The operating mode is a momentary normally open (NO) touch output, and it includes 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
Banner

Part#:K30ABT2YYHQ

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering K30ABT2YYHQ is an illuminated capacitive touch-sensitive button designed with a Gen.2 1-color yellow LED illumination that indicates both non-activated and activated states. It features a black housing with a dome-shaped window made from diffused polycarbonate and a base also constructed from polycarbonate. This part is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K30ABT2YYHQ offers versatile mounting options, including surface or base pole mounting with an M22 thread, and has a 30mm or approximately 1-3/16" dome diameter. It is designed to operate within an ambient air temperature range of -40°C to +50°C and is rated for IP67 and IP69K degrees of protection, ensuring durability in various environmental conditions. The operating mode is a momentary normally open (NO) touch output, and it includes 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K30ABT2YYHQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Housing Style
    Base Mount - Dome Window
  • Quick Disconnect Type
    M12 (Euro)
  • Max Input Response Time (ms)
    300
  • Max Op. Temperature (°C)
    50
  • Feature: Audible
    No
  • Power Source
    DC
  • Product Size (mm)
    30
  • Max Current Color (mA)
    55
  • Lumens Color 2
    4.4
  • Environmental Rating
    IP67; IP69
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Material
    Polycarbonate
  • Animation Option 1
    Solid On
  • Supply Voltage
    12-30 V dc
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Number of Colors / Segments
    2
  • Color Option 1
    Yellow
  • Output Type
    Bipolar (NPN & PNP)
  • Primary Housing Color
    Black
  • Modbus RTU
    No
  • Activation Function
    Capacitive Touch
  • Color Option 2
    Yellow
  • Color 2 - Wavelength/Color Temp/Coordinates
    580 nm
  • Storage Temp (°C)
    -40 to 70
  • Feature: Quick Disconnect
    Yes
  • Mounting Thread
    M22 x 1.5
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 54.5
  • Feature: Chemical Resistant
    No
  • Feature: Washdown Rated
    Yes
  • Actuation
    Yes
  • Color 1 - Wavelength/Color Temp/Coordinates
    580 nm
  • Max Output Response Time (ms)
    150
  • Button Operation
    Momentary
  • Wireless
    No
  • Power
    DC
  • Connection
    Integral QD
  • Input Type
    Bimodal (PNP/NPN)
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Lumens Color 1
    4.4
  • Operation
    Normally Open
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Feature: Hazardous Area
    No
  • Multi-Color Device
    Single Color On
  • Pro-Editor Compatible (Discrete)
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents K30ABT2YYHQ Specs

K30ABT2YYHQ K30C QD-1630952671031.stp
K30ABT2YYHQ K30C QD-1630952671034.pdf
K30ABT2YYHQ K30 Touch Gen 2 Illuminated Buttons -- Datasheet-1630952671035.pdf
