K30ALBT2WBH Banner Electronic Components

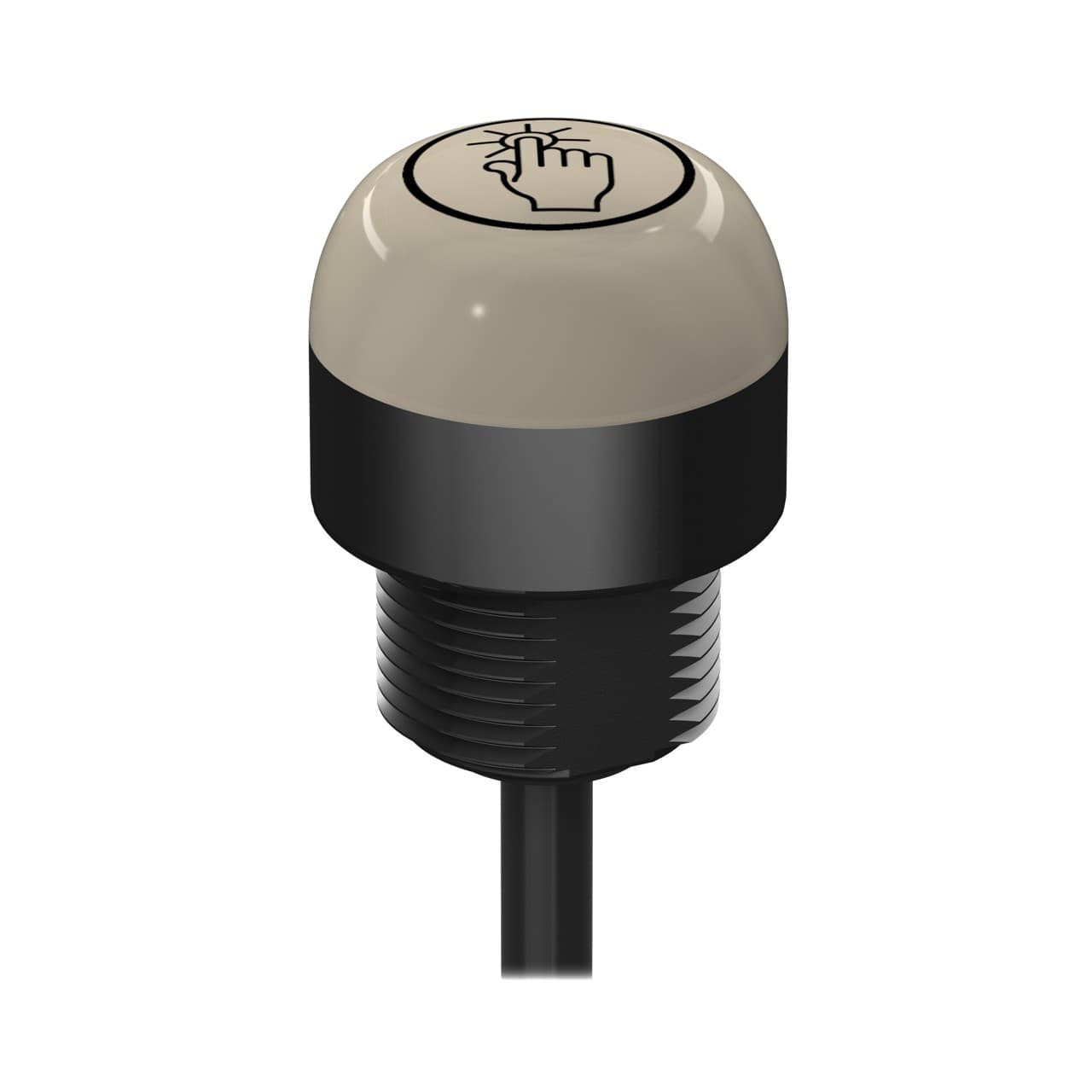

Banner K30ALBT2WBH Banner Engineering K30ALBT2WBH is a capacitive touch-sensitive button designed with Gen.2 2-color LED illumination that changes from white (not activated) to blue (activated). It features a black housing with a dome-shaped window made from diffused polycarbonate (PC), and a base also constructed from polycarbonate (PC). This part is pre-wired with a 2m / 6.5ft 5-wire cable that terminates with bare end flying leads. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The K30ALBT2WBH can be mounted via surface or base pole with an M22 thread and has a 30mm / 1-3/16" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode is a latched NO (Normally Open) touch output, and it includes 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
Banner

Part#:K30ALBT2WBH

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering K30ALBT2WBH is a capacitive touch-sensitive button designed with Gen.2 2-color LED illumination that changes from white (not activated) to blue (activated). It features a black housing with a dome-shaped window made from diffused polycarbonate (PC), and a base also constructed from polycarbonate (PC). This part is pre-wired with a 2m / 6.5ft 5-wire cable that terminates with bare end flying leads. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The K30ALBT2WBH can be mounted via surface or base pole with an M22 thread and has a 30mm / 1-3/16" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode is a latched NO (Normally Open) touch output, and it includes 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K30ALBT2WBH Banner price in the box on the right side or send a quick quote.

Product Details

  • Power Source
    DC
  • Color Technology
    Standard LED
  • Input Type
    Bimodal (PNP/NPN)
  • Primary Housing Color
    Black
  • Pro-Editor Compatible (Discrete)
    No
  • Color Option 1
    White
  • Number of Colors / Segments
    2
  • Max Current Color (mA)
    55
  • Mounting Thread
    M22 x 1.5
  • Lumens Color 1
    5.0
  • Color 2 - Wavelength/Color Temp/Coordinates
    470 nm
  • Storage Temp (°C)
    -40 to 70
  • Feature: Washdown Rated
    Yes
  • Housing Style
    Base Mount - Dome Window
  • Color 1 - Wavelength/Color Temp/Coordinates
    7500K
  • Operation
    Normally Open
  • Min Op. Temperature (°C)
    -40
  • Feature: Chemical Resistant
    No
  • Power
    DC
  • Animation Option 1
    Solid On
  • Output Type
    Bipolar (NPN & PNP)
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Multi-Color Device
    Single Color On
  • IO Link
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Lumens Color 2
    1.0
  • Max Output Response Time (ms)
    150
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Modbus RTU
    No
  • Activation Function
    Capacitive Touch
  • Product Size (mm)
    30
  • Supply Voltage
    12-30 V dc
  • Environmental Rating
    IP67; IP69
  • Feature: Hazardous Area
    No
  • Actuation
    Yes
  • Cable Length (m)
    2
  • Color Option 2
    Blue
  • Max Input Response Time (ms)
    300
  • Primary Window Material
    Polycarbonate Diffused
  • Wireless
    No
  • Primary Housing Material
    Polycarbonate
  • Connection
    Cable
  • Number of Input Pins/Conductors
    5
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Max Op. Temperature (°C)
    50
  • Button Operation
    Latching
  • Feature: Audible
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents K30ALBT2WBH Specs

K30ALBT2WBH K30C CABLE-1630952602875.stp
K30ALBT2WBH K30 Touch Gen 2 Illuminated Buttons -- Datasheet-1630952602883.pdf
K30ALBT2WBH K30C CABLE-1630952602886.pdf
