K30ANT2XRF2QP Banner Electronic Components

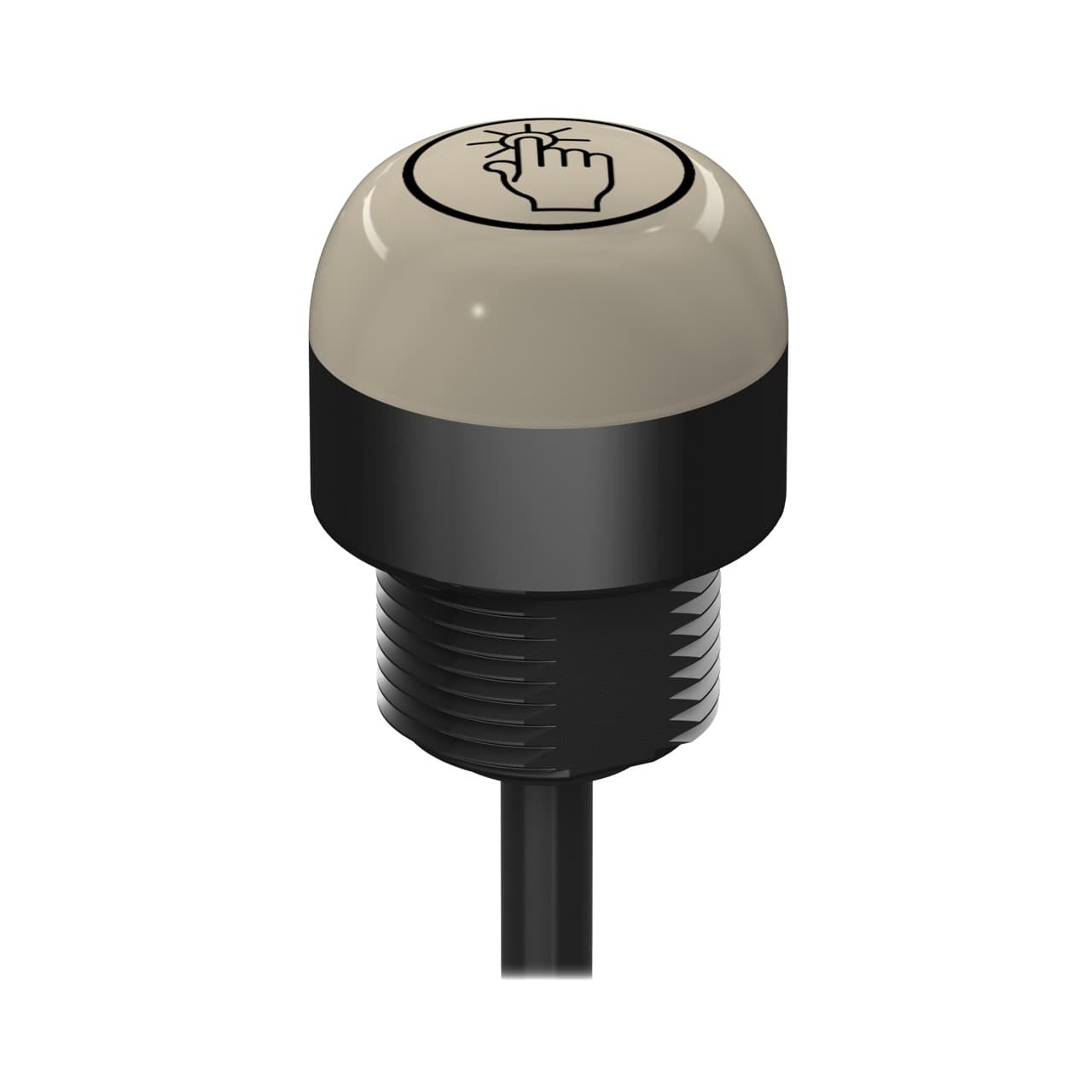

Banner K30ANT2XRF2QP K30 Series EZ-LIGHT: 1-Input-Color Touch Sensor Gen 2;, Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K, Input: NPN (NO); Colors: None - Power applied, Red- Input Active, Euro 4-pin 150 mm (6 in) PVC Pigtail
Banner

Part#:K30ANT2XRF2QP

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

K30 Series EZ-LIGHT: 1-Input-Color Touch Sensor Gen 2;, Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K, Input: NPN (NO); Colors: None - Power applied, Red- Input Active, Euro 4-pin 150 mm (6 in) PVC Pigtail

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K30ANT2XRF2QP Banner price in the box on the right side or send a quick quote.

Product Details

  • Power
    DC
  • Max Current Color (mA)
    55
  • Input Type
    NPN
  • Actuation
    Yes
  • Quick Disconnect Type
    M12 (Euro)
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Feature: Hazardous Area
    No
  • Housing Style
    Base Mount - Dome Window
  • Lumens Color 2
    1.7
  • Output Type
    NPN
  • Storage Temp (°C)
    -40 to 70
  • Mounting Thread
    M22 x 1.5
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Feature: Washdown Rated
    Yes
  • Power Source
    DC
  • Product Size (mm)
    30
  • Number of Input Pins/Conductors
    4
  • Min Op. Temperature (°C)
    -40
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Pick-to-Light Function
    F2
  • Environmental Rating
    IP67; IP69
  • Multi-Color Device
    Single Color On
  • Primary Housing Material
    Polycarbonate
  • Connection
    Pigtail QD
  • Operation
    Normally Open
  • Max Op. Temperature (°C)
    50
  • Activation Function
    Capacitive Touch
  • Color Technology
    Standard LED
  • Max Input Response Time (ms)
    300
  • Primary Window Material
    Polycarbonate Diffused
  • Feature: Quick Disconnect
    Yes
  • Number of Colors / Segments
    1
  • Color Option 2
    Red
  • Max Output Response Time (ms)
    150
  • Button Operation
    Momentary
  • Supply Voltage
    12-30 V dc
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Feature: Audible
    No
  • Primary Housing Color
    Black
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Wireless
    No
  • Feature: Chemical Resistant
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents K30ANT2XRF2QP Specs

K30ANT2XRF2QP K30C CABLE-1630952695537.pdf
K30ANT2XRF2QP K30 Touch Gen 2 Illuminated Multipurpose Buttons -- Datasheet-1630952695532.pdf
K30ANT2XRF2QP K30C CABLE-1630952695535.stp

1-year warranty
