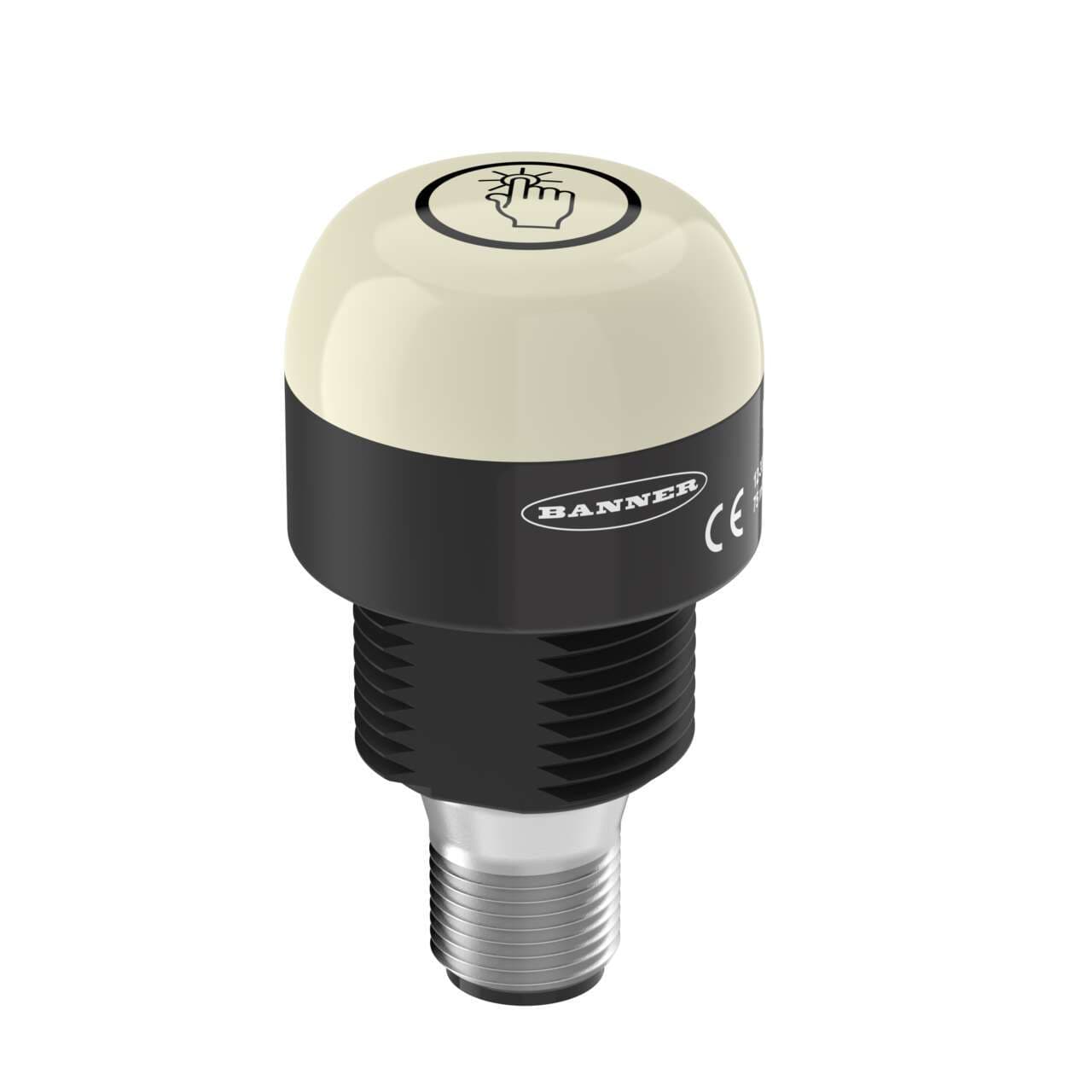

K30APTGREQ Banner Pick-to-Light Sensors
Part#:K30APTGREQ
Manufacturer:Banner
Alt. Part#:85132
Product Lifecycle:Active
Get a quick Quote!
K30 Series: 2-Color Touch Sensor; Job Light Overrides Touch Light; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K30APTGREQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight45.3592 g
- Country Of OriginMX
- Activation Function Capacitive Touch
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Housing Style Base Mount - Dome Window
- Quick Disconnect Type M12 (Euro)
- Max Output Response Time (ms) 150
- Button Operation Momentary
- Modbus RTU No
- Power Source DC
- Mis-Pick Light Red
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 54.5
- Primary Housing Color Black
- Wireless No
- Power DC
- Color Option 1 Green
- Output Type PNP
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Actuation Yes
- Max Current Color (mA) 55
- Max Input Response Time (ms) 300
- Primary Window Material Polycarbonate Diffused
- Job Light Green
- Product Size (mm) 30
- Mounting Thread M22 x 1.5
- Pick-to-Light Function E
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Washdown Rated Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Operation Normally Open
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Color Option 2 Red
- Primary Housing Material Polycarbonate
- Input Type PNP
- Storage Temp (°C) -40 to 70
- IO Link No
- Number of Colors / Segments 2
- Connection Integral QD
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K30APTGREQ Description
Banner Engineering K30APTGREQ, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC). This part is equipped with a 4-pin M12 Euro-style QD connector for connectivity and operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter is 30mm or approximately 1-3/16 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode includes a momentary job light (green) that turns on when the job input is active, touch activation for output, and a mispick light (red) for inactive job inputs, with a normally open (NO) touch output. The current consumption is 55mA. It also features 1 x digital input (12-30Vdc; PNP) for job color control and 2 x digital outputs (12-30Vdc; PNP) for touch and mispick indications.
Related documents K30APTGREQ Specs
