K30ALBTBOH Banner Electronic Components
Part#:K30ALBTBOH
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

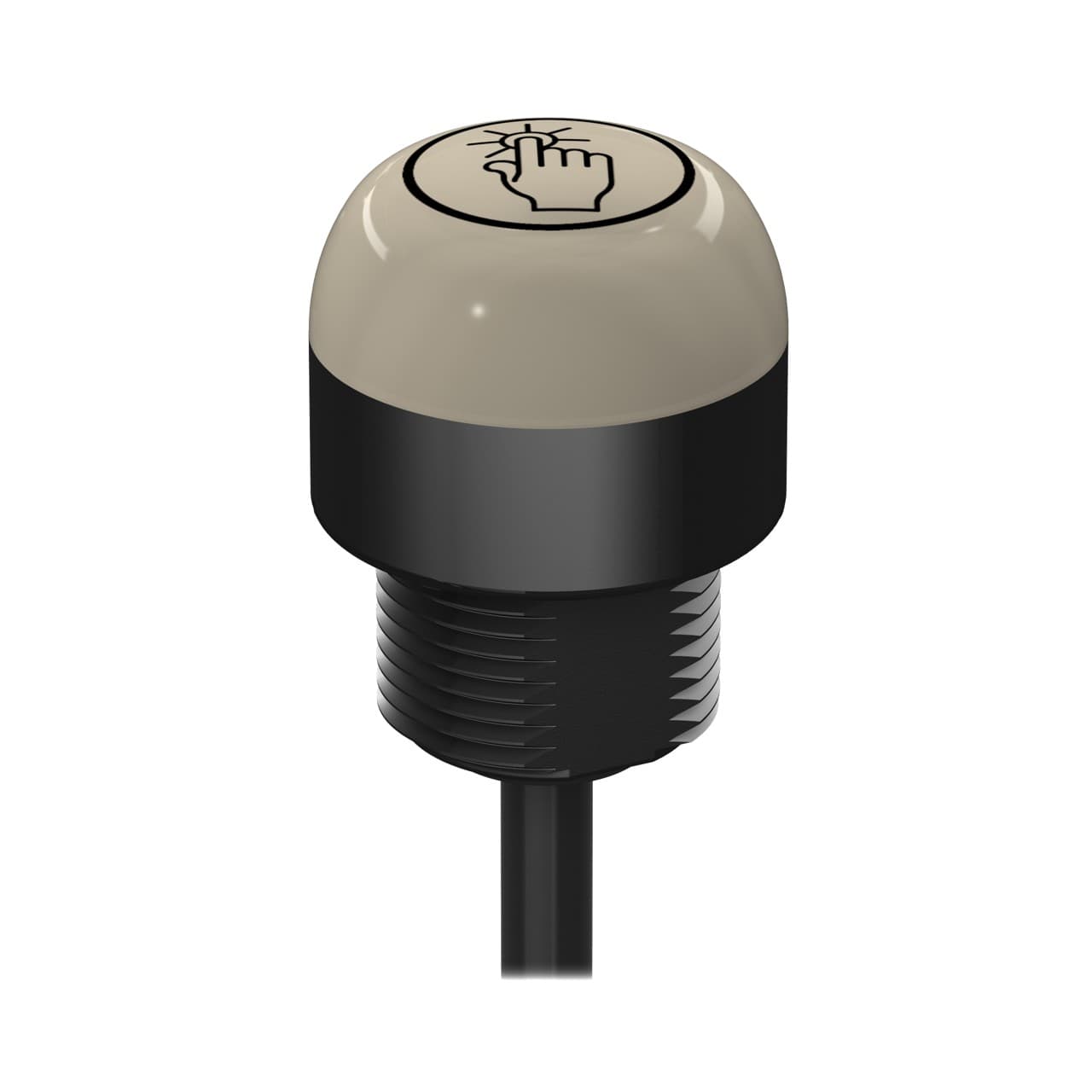

Banner Engineering K30ALBTBOH is a capacitive touch-sensitive button designed with a 2-color LED illumination that displays B (Not activated) and O (Activated) colors. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from PC. This part is pre-wired with a 2m / 6.5ft 5-wire cable that terminates with bare end flying leads. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The K30ALBTBOH can be mounted on a surface or base pole with an M22 thread and has a 30mm / 1-3/16" dome diameter. It is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode is a latched NO (Normally Open) touch output, with a current consumption of 55mA. Additionally, it includes 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functions.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K30ALBTBOH Banner price in the box on the right side or send a quick quote.
Product Details
- Actuation Yes
- Operation Normally Open
- Storage Temp (°C) -40 to 70
- Wireless No
- Color Option 1 Blue
- Primary Housing Material Polycarbonate
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Chemical Resistant No
- Color Technology Standard LED
- Power Source DC
- Environmental Rating IP67; IP69
- Feature: Audible No
- Product Size (mm) 30
- Output Type Bipolar (NPN & PNP)
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Single Color On
- Housing Style Base Mount - Dome Window
- Animation Option 1 Solid On
- Max Output Response Time (ms) 150
- Button Operation Latching
- Pro-Editor Compatible (Discrete) No
- Power DC
- Supply Voltage 12-30 V dc
- Max Current Color (mA) 55
- Primary Housing Color Black
- Activation Function Capacitive Touch
- Number of Input Pins/Conductors 5
- Max Input Response Time (ms) 300
- Feature: Washdown Rated Yes
- Feature: Quick Disconnect No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Orange
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 41.0
- Feature: Hazardous Area No
- Mounting Thread M22 x 1.5
- Input Type Bimodal (PNP/NPN)
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Number of Colors / Segments 2
- Connection Cable
- Primary Window Material Polycarbonate Diffused
- Max Op. Temperature (°C) 50
- IO Link No
