K50PBLKQP Banner Pick-to-Light Sensors
Part#:K50PBLKQP
Manufacturer:Banner
Alt. Part#:810833
Product Lifecycle:Active
Get a quick Quote!

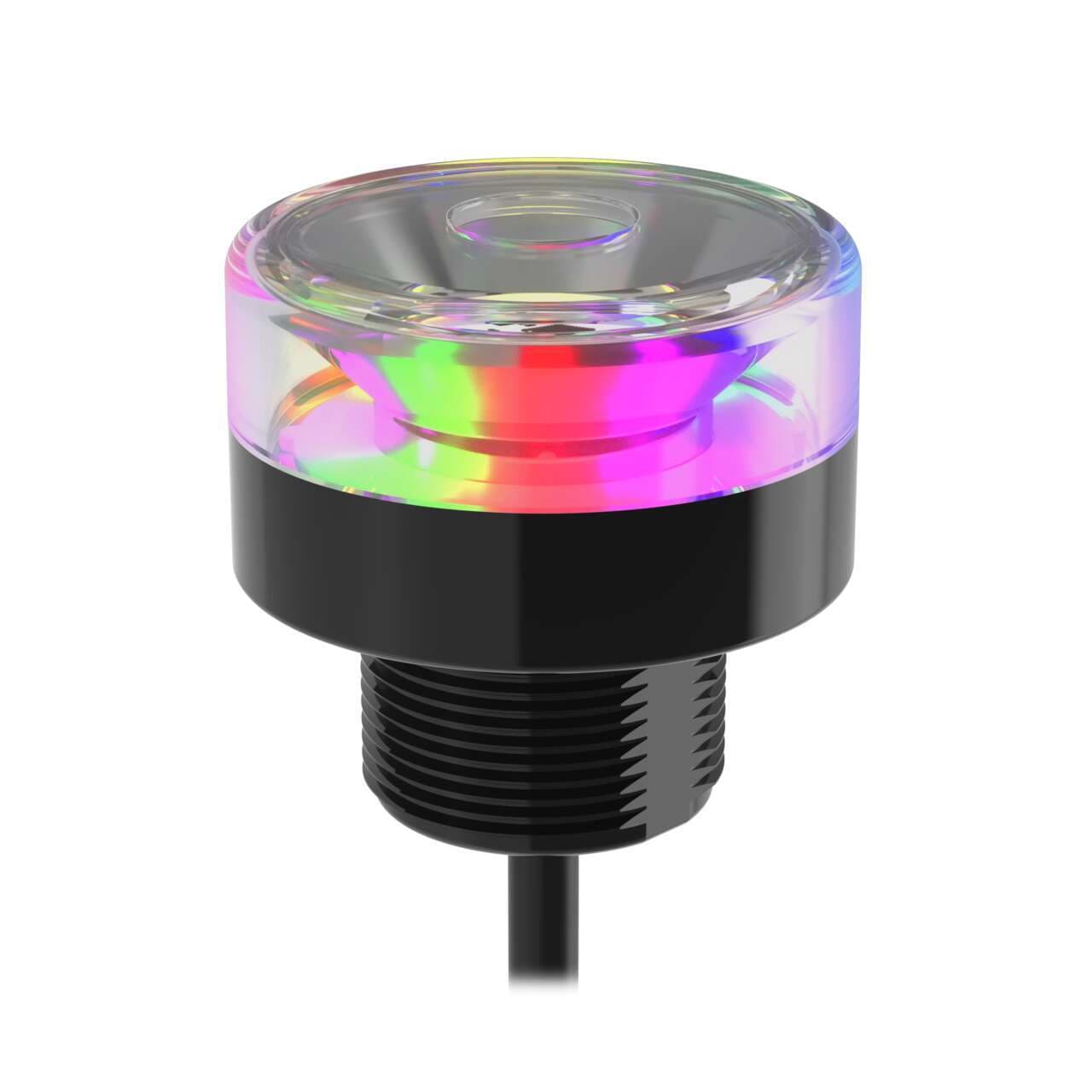

K50 Pro with IO-Link Series: RGB Beacon Light: Perimeter View; Voltage: 18-30 V dc; Housing: Polycarbonate; IP69K; Input: Bimodal; Colors: Multicolor; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50PBLKQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight145.14944 g
- Country Of OriginUS
- Power Source DC
- Color Technology RGB IO-Link
- Supply Voltage 18-30 V dc
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Max Current Color (mA) 150
- Indication Yes
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Housing Style Base Mount - Flat Window
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- IO Link Yes
- Color Input Control Communication Protocol
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 48.8
- Feature: Chemical Resistant No
- Feature: Quick Disconnect Yes
- Mounting Thread M30 x 1.5
- Animation Option 1 IO-Link Controlled
- Environmental Rating IP67; IP69
- Primary Window Material Polycarbonate Clear
- USB No
- Cable Length (m) 0.15
- Product Size (mm) 50
- Max Input Response Time (ms) 30
- Primary Housing Color Black
- Wireless No
- Power DC
- Color Option 1 RGB
- Input Type Communication Protocol
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Connection Pigtail QD
- Max Op. Temperature (°C) 50
- Indication Intensity High Brightness & Daylight Visible
- Number of Colors / Segments Programmable
- Dimming Option IO-Link Controlled
- NEMA Type and UL Type Rating UL 4X, 13
- Multi-Color Device Simultaneous Colors On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50PBLKQP Description
Banner Engineering K50PBLKQP is a pick-to-light device from the EZ-LIGHT Modbus series, designed with a push-button actuation and RS-485 / Modbus RTU compatibility for LED illumination. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This unit is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector and operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface or base pole with an M30 thread and has a 50mm / 2" dome diameter. The K50PBLKQP is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is protected to a degree of IP67. Its operating mode can be configured as either momentary or latched via Modbus.
