K50PBLRGB7QP Banner Electronic Components
Part#:K50PBLRGB7QP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

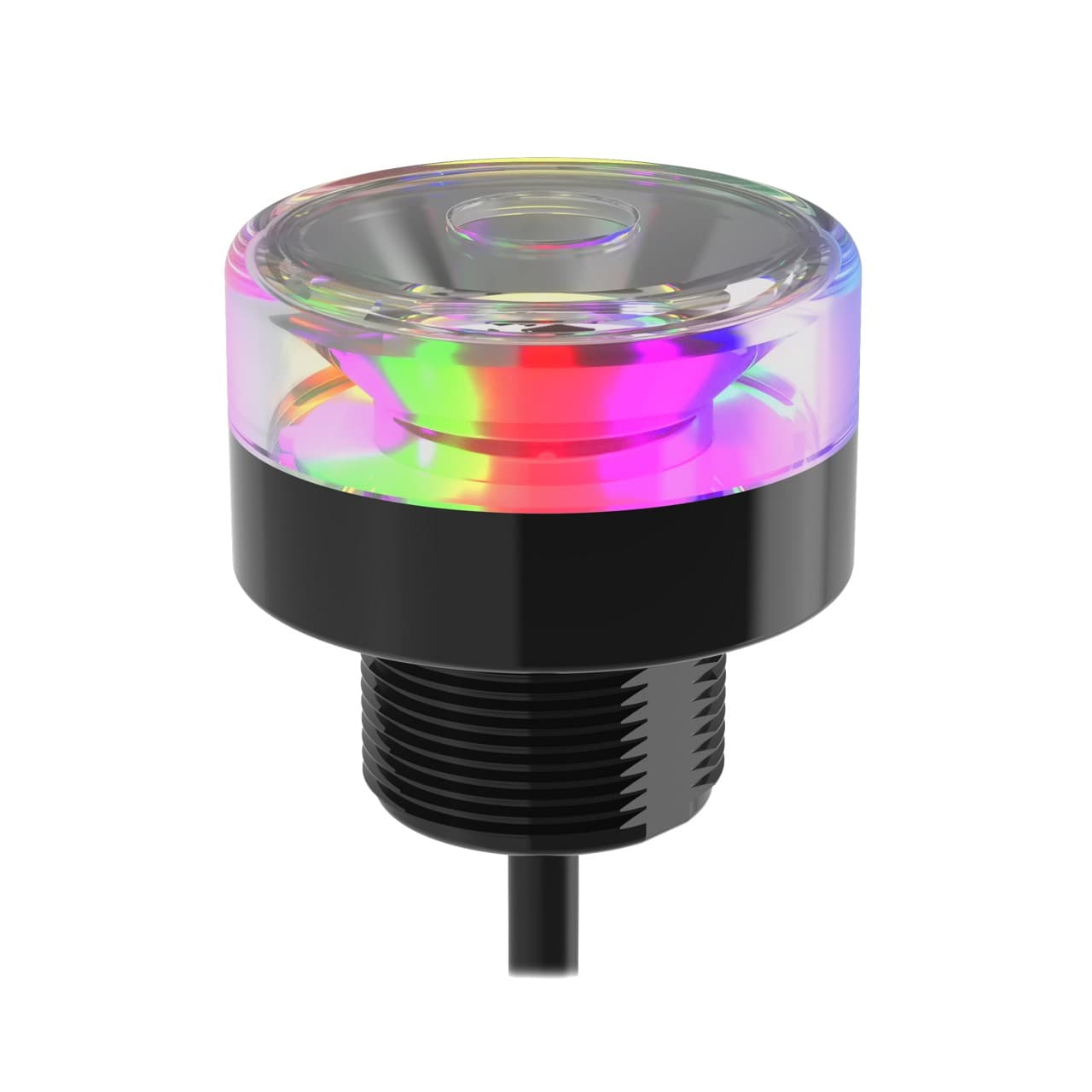

Banner Engineering K50PBLRGB7QP is a high-intensity programmable industrial LED light beacon within the Beacon series. This part features a 1-tier 7-color multicolor LED illumination housed in a black, round flat window design made from polycarbonate. It is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The beacon operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and can be mounted via surface or base pole with an M30 thread. The cap diameter is 50mm or 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This beacon offers a degree of protection rated at IP67, IP69K, NEMA 4X, and NEMA 13, ensuring durability in various environmental conditions. The current consumption is 220mA, and it includes 3 x digital inputs (10-30Vdc; PNP/NPN) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50PBLRGB7QP Banner price in the box on the right side or send a quick quote.
Product Details
- Lumens Color 7 17.0
- Max Op. Temperature (°C) 50
- Feature: Quick Disconnect Yes
- Indication Yes
- Connection Pigtail QD
- Animation Option 3 Programmable
- Color Option 6 Magenta
- Animation Option 7 Programmable
- Max Input Response Time (ms) 250
- Housing Style Base Mount - Flat Window
- Color Technology RGB Configurable
- Color Option 3 Blue
- Color Option 5 White
- Supply Voltage 10-30 V dc
- Wire Selectable Function Programmable
- Primary Housing Color Black
- Mounting Thread M30 x 1.5
- Color Option 2 Green
- Color 3 - Wavelength/Color Temp/Coordinates 470 nm
- Color 5 - Wavelength/Color Temp/Coordinates 5950K
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Animation Option 2 Programmable
- Color 4 - Wavelength/Color Temp/Coordinates 0.469, 0.466
- Lumens Color 6 8.6
- Environmental Rating IP67; IP69
- Cable Length (m) 0.15
- Number of Colors / Segments 14
- Animation Option 1 Programmable
- Lumens Color 3 3.3
- Power DC
- Color Option 1 Red
- Color 2 - Wavelength/Color Temp/Coordinates 530 nm
- Lumens Color 4 17.2
- Color 6 - Wavelength/Color Temp/Coordinates 0.399, 0.189
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Quick Disconnect Type M12 (Euro)
- Color Option 4 Yellow
- Animation Option 5 Programmable
- Lumens Color 1 6.8
- Input Type Bimodal (PNP/NPN)
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- USB No
- Number of Input Pins/Conductors 5
- Indication Intensity High Brightness & Daylight Visible
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Simultaneous Colors On
- Color Option 7 Cyan
- Animation Option 6 Programmable
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 48.8
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) Yes
- Animation Option 4 Programmable
- Dimming Option Programmable
- NEMA Type and UL Type Rating UL 4X, 13
- Product Size (mm) 50
- I/O Block Compatible Yes
- Storage Temp (°C) -40 to 70
- Feature: Audible No
- Wireless No
- Lumens Color 5 20.9
- Color 7 - Wavelength/Color Temp/Coordinates 0.159, 0.337
- Lumens Color 2 15.3
- Max Current Color (mA) 220
- Primary Window Material Polycarbonate Clear
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents K50PBLRGB7QP Specs
1-year warranty
