K50PFF100ALGRY3QP Banner Electronic Components
Part#:K50PFF100ALGRY3QP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

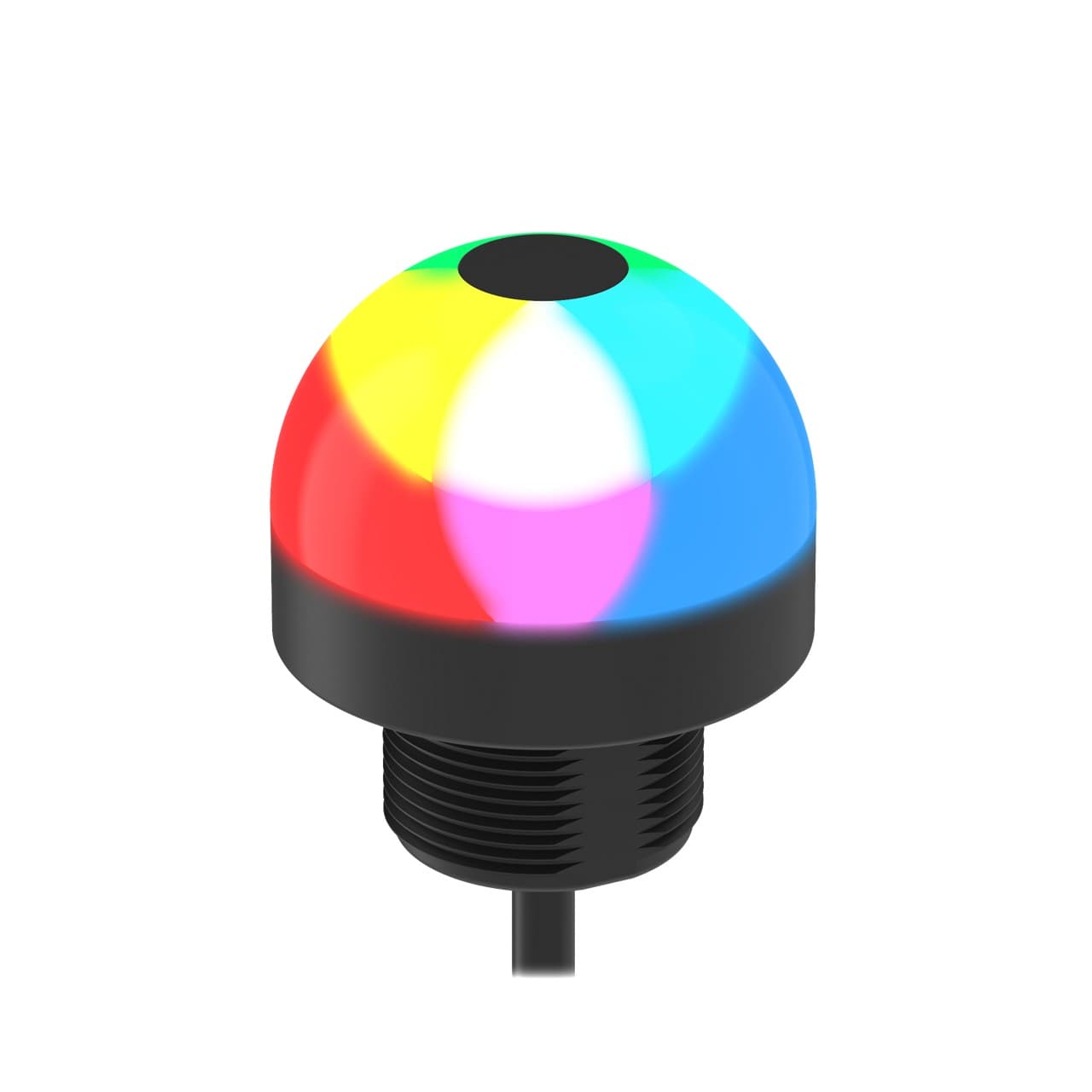

K50 Pro with Pro Editor: 3-Color RGB Fixed-Field Sensor, Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K, Range: 100 mm; Bimodal, NO, Latching; Colors: Multicolor, Euro 5-pin 150mm (6 in) PVC Pigtail
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50PFF100ALGRY3QP Banner price in the box on the right side or send a quick quote.
Product Details
- Actuation Yes
- Housing Style Base Mount - Dome Window
- Color 1 - Wavelength/Color Temp/Coordinates 522 nm
- Lumens Color 3 20.5
- Max Output Response Time (ms) 300
- Primary Window Material Polycarbonate Diffused
- Primary Housing Material Polycarbonate
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 620 nm
- Output Type Bipolar (NPN & PNP)
- Number of Beams 1
- Feature: Chemical Resistant No
- Cable Length (m) 0.15
- Color Option 2 Red
- Product Size (mm) 50
- Number of Input Pins/Conductors 4
- Maximum Sensing Distance (mm) 100
- Button Operation Latching
- Pro-Editor Compatible (Discrete) Yes
- Power DC
- Number of Colors / Segments 3
- Lumens Color 2 7.1
- Pick-to-Light Function F2
- Max Input Response Time (ms) 40
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Primary Housing Color Black
- Wireless No
- Sensing Mode (General) Fixed Field
- Color Option 1 Green
- Max Current Color (mA) 150
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 67.3
- Feature: Washdown Rated Yes
- Mounting Thread M30 x 1.5
- Connection Pigtail QD
- Color Option 3 Yellow
- Input Type Bimodal (PNP/NPN)
- Max Op. Temperature (°C) 50
- Feature: Hazardous Area No
- Activation Function Optical
- Color Technology RGB Configurable
- Supply Voltage 12-30 V dc
- Environmental Rating IP67; IP69
- Feature: Audible No
- Power Source DC
- Lumens Color 1 14.2
- Color 3 - Wavelength/Color Temp/Coordinates 576 nm
- I/O Block Compatible Yes
- Min Op. Temperature (°C) -40
- Multi-Color Device Simultaneous Colors On
- Quick Disconnect Type M12 (Euro)
- Operation Normally Open
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- USB No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents K50PFF100ALGRY3QP Specs
