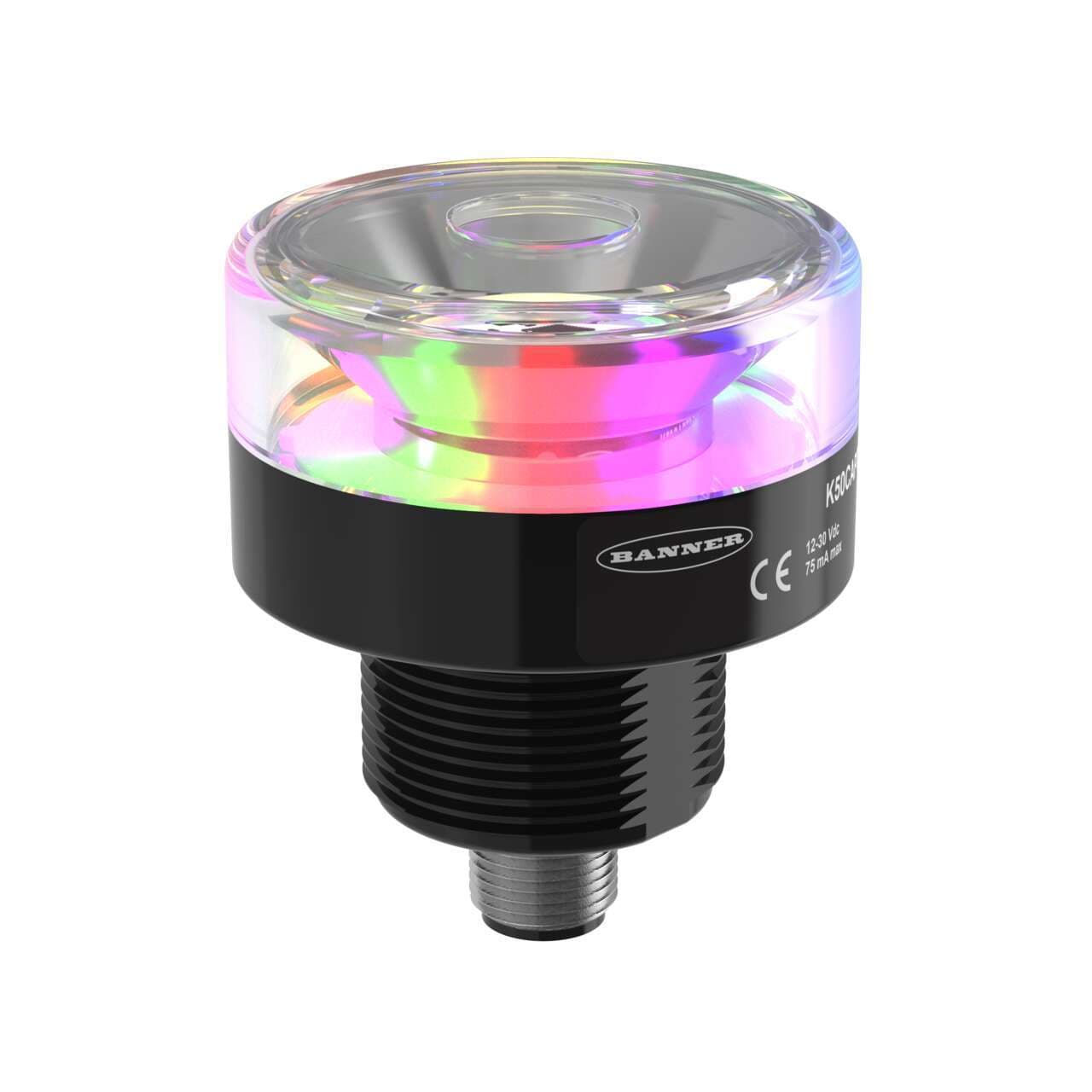

K50PBLSQ Banner Pick-to-Light Sensors

Banner K50PBLSQ K50 Pro with PICK-IQ Series: RGB Beacon Light: Perimeter View; Voltage: 10-30 V dc; Housing: Polycarbonate; IP69K; Input: Bimodal; Colors: Multicolor; 4-pin M12 Integral QD
Banner

Part#:K50PBLSQ

Manufacturer:Banner

Alt. Part#:810834

Product Lifecycle:Active

Get a quick Quote!

K50 Pro with PICK-IQ Series: RGB Beacon Light: Perimeter View; Voltage: 10-30 V dc; Housing: Polycarbonate; IP69K; Input: Bimodal; Colors: Multicolor; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50PBLSQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight145.14944 g
  • Country Of OriginMX
  • Product Size (mm)
    50
  • Max Current Color (mA)
    210
  • Storage Temp (°C)
    -40 to 70
  • Indication Intensity
    High Brightness & Daylight Visible
  • Mounting Thread
    M30 x 1.5
  • Color Option 1
    RGB
  • Environmental Rating
    IP67; IP69
  • Feature: Hazardous Area
    No
  • USB
    No
  • Housing Style
    Base Mount - Flat Window
  • Connection
    Integral QD
  • NEMA Type and UL Type Rating
    UL 4X, 13
  • Multi-Color Device
    Simultaneous Colors On
  • Primary Housing Material
    Polycarbonate
  • Quick Disconnect Type
    M12 (Euro)
  • Max Op. Temperature (°C)
    50
  • Modbus RTU
    Yes
  • Color Input Control
    Communication Protocol
  • Supply Voltage
    10-30 V dc
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • IO Link
    No
  • Power
    DC
  • Color Technology
    RGB Configurable
  • Input Type
    Communication Protocol
  • Primary Window Material
    Polycarbonate Clear
  • Feature: Quick Disconnect
    Yes
  • Indication
    Yes
  • Number of Input Pins/Conductors
    4
  • Primary Housing Color
    Black
  • Feature: Chemical Resistant
    No
  • Power Source
    DC
  • Animation Option 1
    Modbus Controlled
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 59.8
  • PICK-IQ (Modbus RTU)
    Yes
  • Number of Colors / Segments
    Programmable
  • Dimming Option
    Modbus Controlled
  • Min Op. Temperature (°C)
    -40
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

K50PBLSQ Description

K50 Pro with PICK-IQ Series: RGB Beacon Light: Perimeter View, Voltage: 10-30V dc; Housing: Polycarbonate; IP69K, Input: Bimodal; Colors: Multicolor, Euro 4-pin Integral Connector

Related documents K50PBLSQ Specs

K50PBLSQ 212906.pdf
