SLSE14-300AQ8 Banner Electronic Components
Part#:SLSE14-300AQ8
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

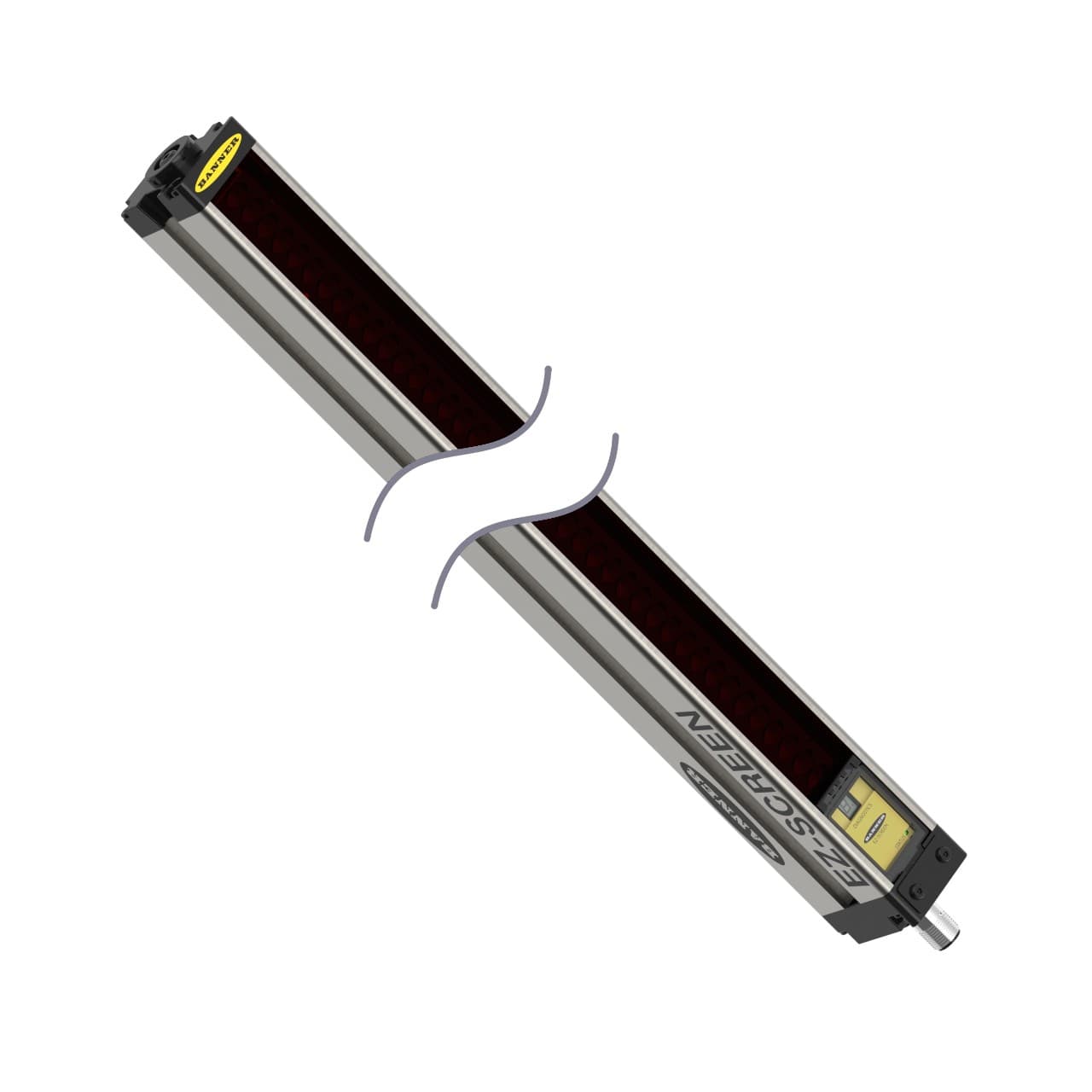

SLSE14-300AQ8 EZS EMTR 14mmODSx300mm QD PGTL ALNM
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLSE14-300AQ8 Banner price in the box on the right side or send a quick quote.
Product Details
- External Monitoring Device No
- Resolution (mm) 14
- Short Protection Yes
- Feature: End-to-End Sensing No
- low-profile No
- Operating Distance (m) 0.1 - 6
- Reduced Resolution No
- Fault Output No
- Primary Housing Material Aluminum
- PL Rating Ple
- Shock 10g at 16ms (6000 cycles)
- Fixed Blanking No
- Defined Area Height (mm) 300
- Scan Code Selectable
- OSSD Rating N/A
- Test Input No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 8
- Electrical Safety Class III
- Trip/Latch Output N/A
- Connector Type M12
- Operating Voltage 24 V dc +/- 15%
- Recovery Time 33-220 / 109-800
- Housing Material Aluminum; Zinc; Acrylic
- Overall Length (mm) 372
- Operating Temperature 0 to +55 deg. C; RH 95%
- System Type Emitter
- Feature: ESD Safe No
- Safety Level Type 4
- Housing Finish Clear Anodized
- Response Time 15
- Auxiliary Output No
- Dimensions WxD (mm) 36 x 45.2
- IP Rating IP65
- SIL Rating SIL3; CL3
- Vibration 10-55 Hz at 0.35 mm
- Feature: Integral Muting No
- Supply Current 100 mA max.
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SLSE14-300AQ8 Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
