SLSE30-150AP8B Banner Safety Light Curtains

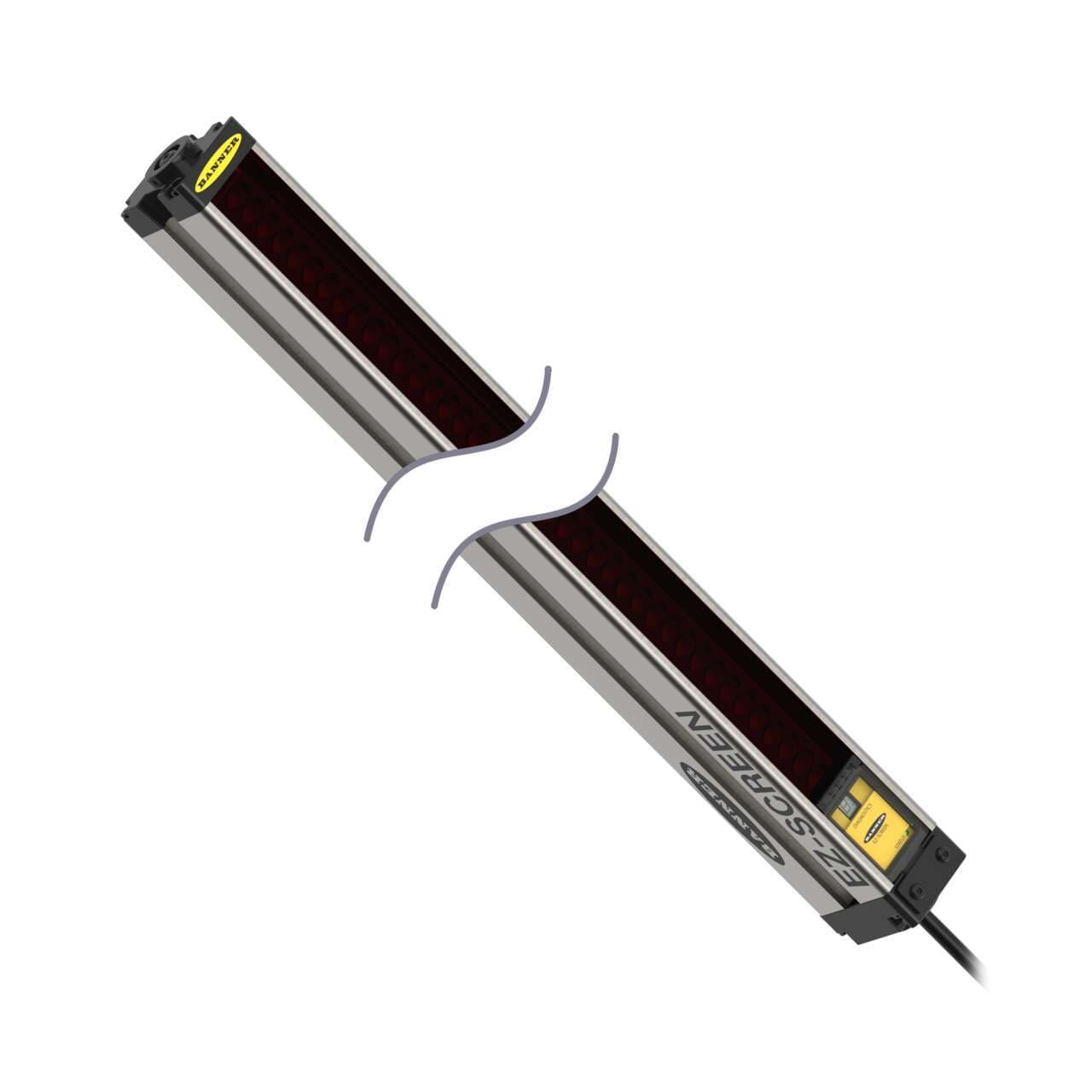

Banner SLSE30-150AP8B EZ-SCREEN Emitter; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 150 mm (5.9 in); Housing Length: 262 mm (10.3 in); Connection: 8-pin M12 Pigtail Connector; No test input
Banner

Part#:SLSE30-150AP8B

Manufacturer:Banner

Alt. Part#:14019

Product Lifecycle:Active

Get a quick Quote!

EZ-SCREEN Emitter; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 150 mm (5.9 in); Housing Length: 262 mm (10.3 in); Connection: 8-pin M12 Pigtail Connector; No test input

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLSE30-150AP8B Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight1496.8536 g
  • Country Of OriginUS
  • Connector Type
    M12 Pigtail (Black)
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Shock
    10g at 16ms (6000 cycles)
  • Primary Housing Material
    Aluminum
  • Operating Voltage
    24 V dc +/- 15%
  • Scan Code
    Selectable
  • OSSD Rating
    N/A
  • Defined Area Height (mm)
    150
  • IP Rating
    IP65
  • SIL Rating
    SIL3; CL3
  • Overall Length (mm)
    262
  • Housing Finish
    Clear Anodized
  • Response Time
    9
  • Fault Output
    No
  • Safety Level
    Type 4
  • Recovery Time
    25-152 / 81-495
  • Vibration
    10-55 Hz at 0.35 mm
  • low-profile
    No
  • Fixed Blanking
    No
  • Reduced Resolution
    No
  • Trip/Latch Output
    N/A
  • Dimensions WxD (mm)
    36 x 45.2
  • Number of Pins (Receiver/Emitter)
    8
  • Auxiliary Output
    No
  • Electrical Safety Class
    III
  • External Monitoring Device
    No
  • Operating Distance (m)
    0.1 - 18
  • Resolution (mm)
    30
  • System Type
    Emitter
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • PL Rating
    Ple
  • Short Protection
    Yes
  • Feature: ESD Safe
    No
  • Feature: Integral Muting
    No
  • Test Input
    No
  • Feature: End-to-End Sensing
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Supply Current
    100 mA max.

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SLSE30-150AP8B Description

Banner Engineering SLSE30-150AP8B is a safety light curtain designed for hand detection with a protective height of 150mm and features a clear brushed Aluminium housing with an Acrylic lens and Die-cast Zinc end caps. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. This part operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65 and has dimensions of 36mm in width, 262mm in height, and 46mm in depth. The SLSE30-150AP8B has a 30mm beam spacing/pitch, two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and a sensing distance ranging from 10cm to 18m. It emits infrared (IR) light with a wavelength of 850 nm and has a response time of 9ms / 0.009 s. The resolution of this safety light curtain is set for 30mm, suitable for hand detection.

Related documents SLSE30-150AP8B Specs

SLSE30-150AP8B 112852.pdf
